Z-Force LZ60 (53ANDAGD050) - Cub Cadet 60" Z-Force Zero-Turn Mower (2014) Kohler CV732-3015 Fuel System Parts Diagram

60" Z-Force Zero-Turn Mower

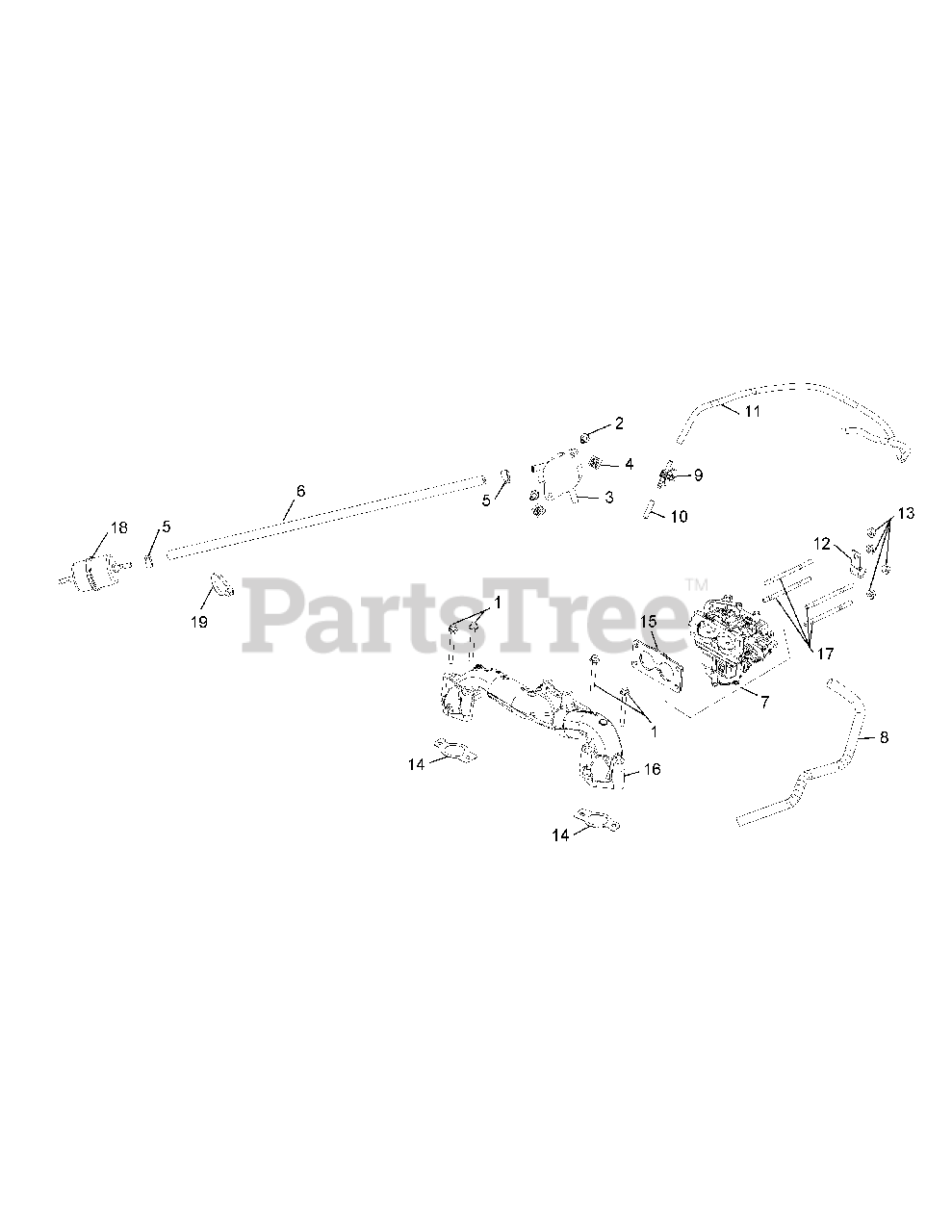

Kohler CV732-3015 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-25-086-84-S

Flange Screw, M6 x 1.0 x 55
(Superseded to KH-25-086-766-S)

$2.49

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-086-12

Tap Screw, M6 x 1.7 x 18

$

$

Not available

3

Cub Cadet KH-24-393-16

Fuel Pump

$

$

Not available

4

Cub Cadet KH-25-100-37-S

Plastic Nut

$2.49

$

In Stock, Qty 13

0

5

Cub Cadet KH-25-237-31-S

Hose Clamp

$4.99

$

In Stock, only 3 left!

0

5

Cub Cadet KH-25-237-37-S

Spring Hose Clamp

$2.49

$

In Stock, Qty 11

0

6

Cub Cadet KH-25-111-81-S

Fuel Line, 24"

$17.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-24-853-227-S

Carburator Kit
(Superseded to KH-24-853-270-S)

$392.99

$

Usually ships in 3-6 days

0

8

Cub Cadet KH-24-431-02-S

Insulating Sleeve 14"

$5.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-25-431-22-S

Anti-Abrasion Sleeve

$5.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-25-155-51-S

Evaporative Connector

$13.99

$

In Stock, only 3 left!

0

10

Cub Cadet KH-25-173-33-S

Masking Cap

$2.49

$

In Stock, only 1 left!

0

11

Cub Cadet KH-25-326-28-S

Evaporative Hose

$4.49

$

In Stock, Qty 6

0

12

Cub Cadet KH-47-154-01-S

Cable Clip

$4.99

$

In Stock, Qty 5

0

13

Cub Cadet KH-M-641060-S

Flange Nut, M6 x 1.0

$4.49

$

In Stock, Qty 11

0

14

Cub Cadet KH-24-041-79-S

Intake Manifold Gasket

$2.99

$

In Stock, Qty 9

0

15

Cub Cadet KH-24-041-83-S

Carburetor Gasket
(Superseded to KH-24-041-84-S)

$14.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-24-164-138-S

Intake Manifold

$106.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-M-629095-S

Stud, M6 x 1.0 x 96

$3.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-24-050-13-S

Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

19

Cub Cadet KH-25-454-05-S

Wire Tie

$2.49

$

In Stock, only 2 left!

0
