Z-Force LZ60 (53ANDAGD050) - Cub Cadet 60" Z-Force Zero-Turn Mower (2014) Drive System Parts Diagram

60" Z-Force Zero-Turn Mower

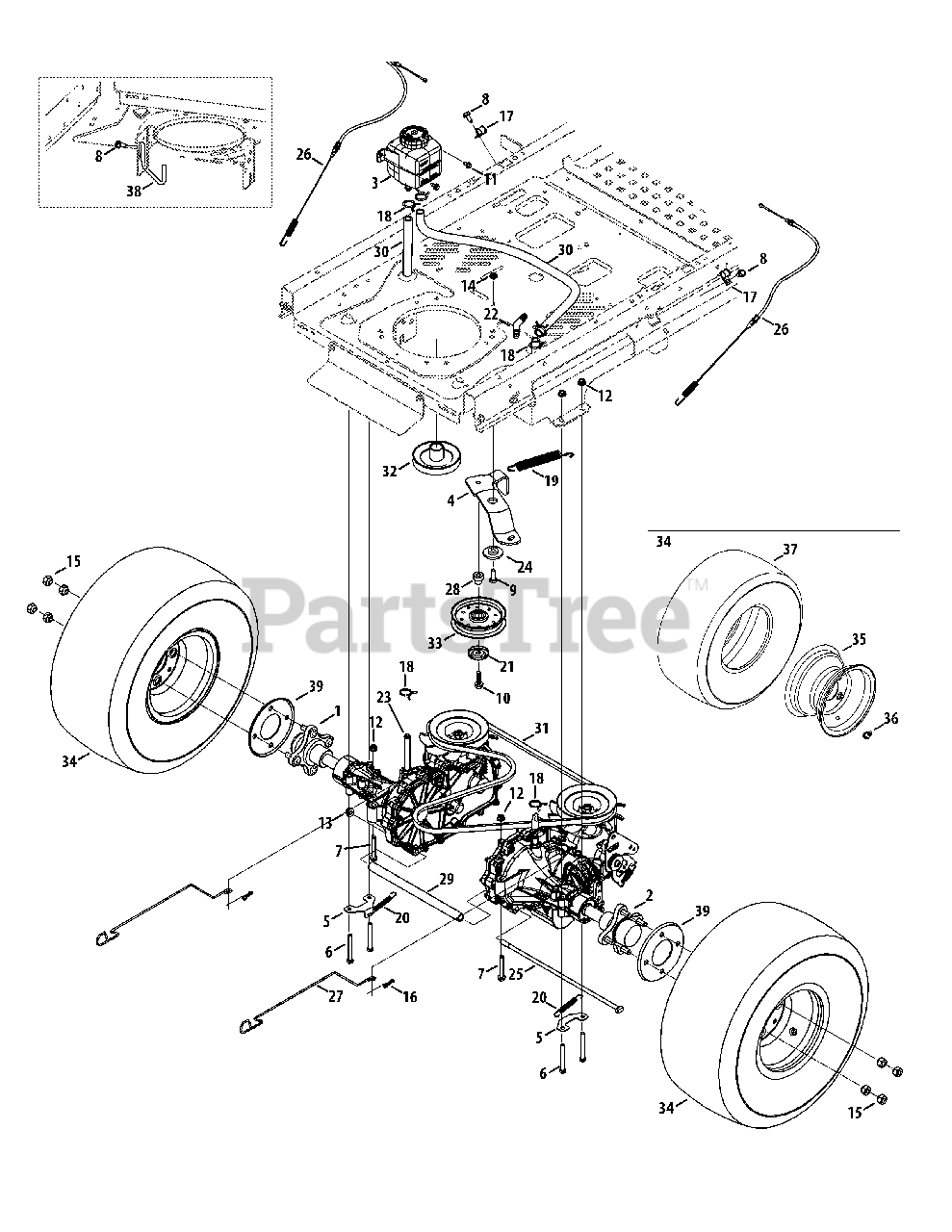

Drive System Parts Diagram

  • Title

1

Cub Cadet 918-06015B

Transmission Assembly, LH

$2121.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-06016B

Transmission Assembly, RH

$2121.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 631-04286

Expansion Tank Assembly

$41.99

$

In Stock, only 1 left!

0

4

Cub Cadet 703-08605

Idler Bracket
(Superseded to 603Z05256)

$42.99

$

In Stock, only 3 left!

0

5

Cub Cadet 703-09323-0637

Brake Mounting Bracket

$9.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0176

Hex Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0395

Screw-HHCS 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet 936-0264

Washer-Fl .344 x .62

Note: Not Shown

$6.99

$

In Stock, only 3 left!

0

8

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1315

Hex Washer Screw, 3/8-16 x 1.250

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 912-3020

Jam Lock Nut, 3/8-16

$6.49

$

In Stock, Qty 10

0

15

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, Qty 6

0

16

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

17

Cub Cadet 726-0272

Clamp 9/16 Dia.

$7.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 726-05015

Hose Clamp, ..75 Adj

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-04229

Extension Spring, .75 Dia. x 6.02

$20.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 732-04488

Extension Spring, .38 OD x 3.25 LG

$6.49

$

In Stock, only 3 left!

0

21

Cub Cadet 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

22

Cub Cadet 737-04342

Elbow, 90

$8.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 737-05023

Fitting, 9/16, Barb

$19.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 738-04162C

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, Qty 20+

0

25

Cub Cadet 738-04251A

Rod, .337 Dia. x 14.75 LG

$14.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 946-05068

Park Brake Cable

$34.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 747-05657A

Bypass Rod
(Superseded to 747-05657B)

$14.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 748-05029

Shoulder Spacer
(Superseded to 748-05029A)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 750-06147A

Spacer, .75 OD x 11.31 LG

$23.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 751-14485-32

Fuel Hose, 1/2 ID
(Superseded to 751-0588-30)

$43.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 954-04317A

Belt, A-Type x 67.0

$50.99

$

In Stock, only 3 left!

0

32

Cub Cadet 756-05001

Engine Pulley
(Superseded to 756-05001B)

$50.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 756-05042

Idler Pulley, 4.25 Dia.

$31.99

$

In Stock, Qty 20+

0

34

Cub Cadet 634-05114-0931

Complete Wheel, 22 x 13-6.5

$412.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 634-05112-0499

Rim Only
(Superseded to 753-10244)

$186.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 934-0255

Valve Tubeless

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 734-04580

Tire Only

Variations

Cub Cadet 734-04580-0901

USE 734-04580 TIRE-22.0 X 9.5 - Carlisle (0901)

$219.99

$

Usually ships in 3-6 days

0

$219.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 747-06070

Engine Keeper Rod

$8.99

$

In Stock, only 1 left!

0

39

Cub Cadet 703-06936-0637

Reinforcement Plate

$25.99

$

Usually ships in 3-6 days

0
