Z-Force LZ48 (53ATDAGB050) - Cub Cadet 48" Z-Force Zero-Turn Mower (2015) Kohler ZT730-3011 Blower Housing & Baffles Parts Diagram

48" Z-Force Zero-Turn Mower

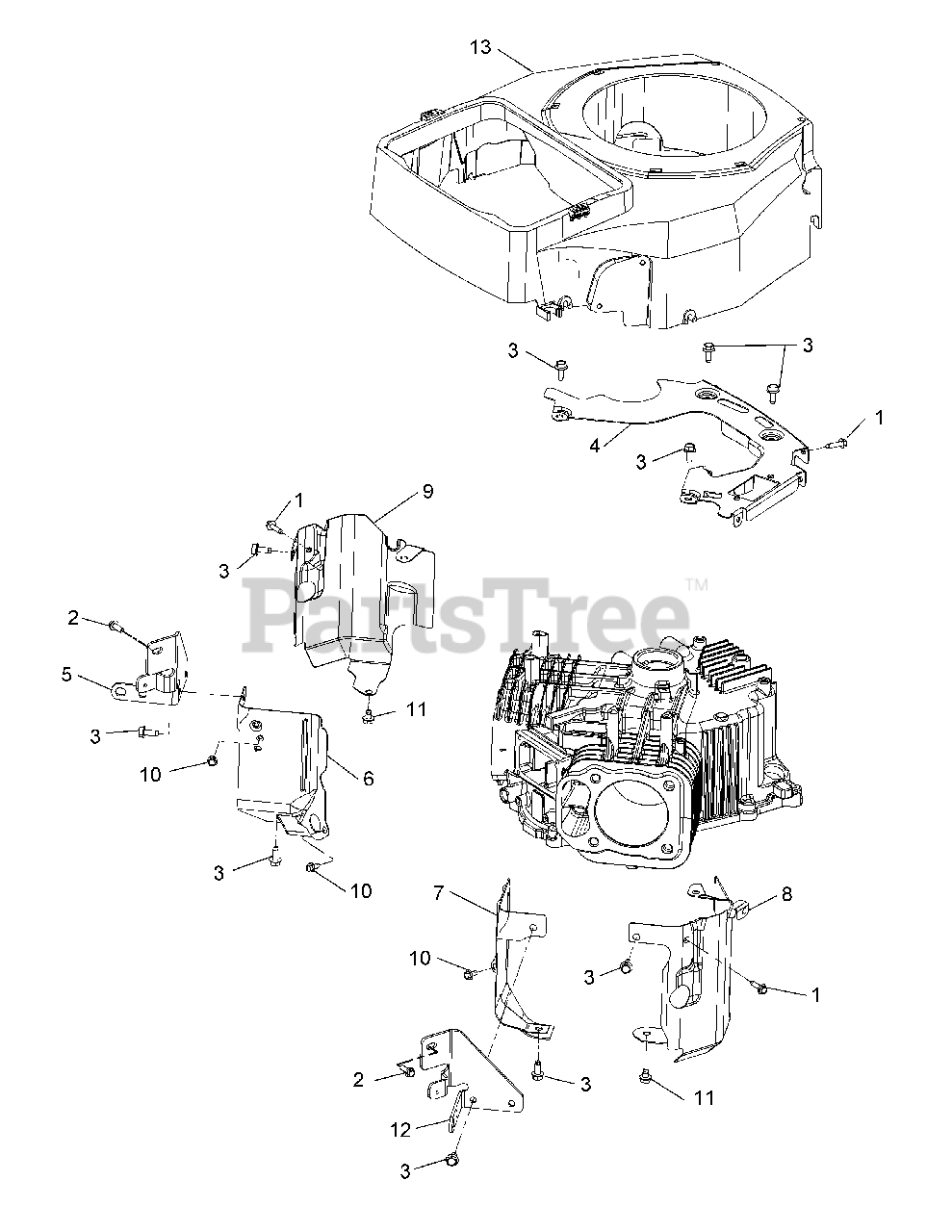

Kohler ZT730-3011 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-25-086-473-S

Thread Forming Screw

$2.49

$

In Stock, Qty 20+

0

2

Cub Cadet KH-25-086-450-S

Hi-Low Screw

$

$

Not available

3

Cub Cadet KH-25-086-397-S

Thread Forming Screw

$3.99

$

In Stock, Qty 13

0

4

Cub Cadet KH-32-146-15-S

Backing Plate

$14.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-16-126-01-S

Air Cleaner Base Bracket (#1)

$7.49

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-32-063-19-S

Valley Baffle, #1 Cylinder
(Superseded to KH-32-063-23-S)

$8.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-32-063-20-S

Valley Baffle, #2 Cylinder
(Superseded to KH-32-063-22-S)

$

$

Not available

8

Cub Cadet KH-16-063-01-S

Left Barrel Baffle

$10.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-16-063-02-S

Right Barrel Baffle

$8.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-25-086-400-S

Thread Forming Screw

$2.49

$

In Stock, only 2 left!

0

11

Cub Cadet KH-25-086-406-S

Thread Forming Screw

$2.49

$

In Stock, Qty 9

0

12

Cub Cadet KH-16-126-02-S

Air Cleaner Base Bracket (#2)

$7.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-16-027-01-S

Blower Housing Kit

$

$

Not available
