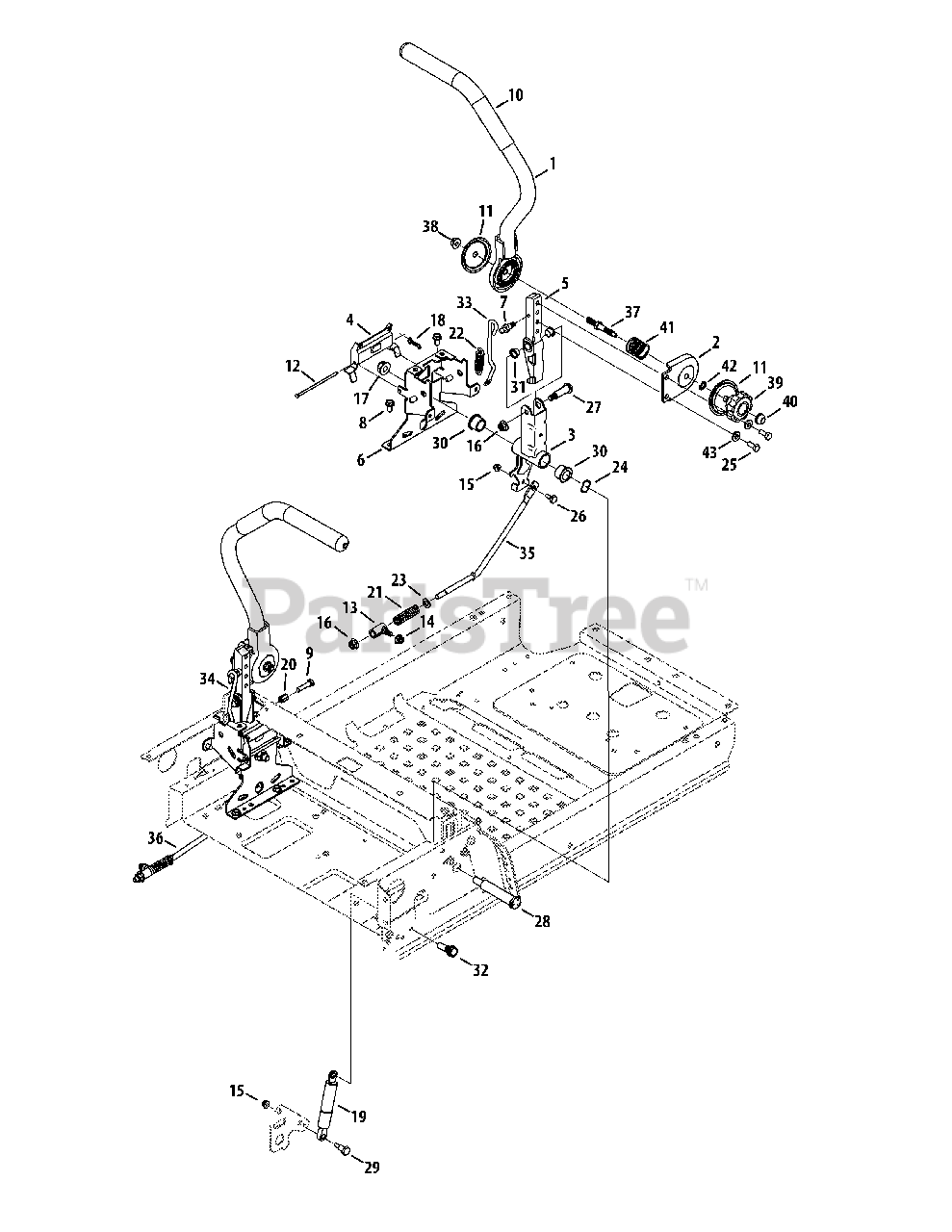

Z-Force LZ48 (53ATDAGB050) - Cub Cadet 48" Z-Force Zero-Turn Mower (2015) Controls Parts Diagram

48" Z-Force Zero-Turn Mower

Controls Parts Diagram

  • Title
1

Cub Cadet 603-05111A

Lapbar Lever Assembly, Otr
(Superseded to 903-05111B)

Variations

Cub Cadet 603-05111A-0637

USE 903-05111A-0637 LAPBAR AS - POWDER BLACK (0637)

$99.99

$

In Stock, only 1 left!

0

Cub Cadet 603-05111A-4021

USE 903-05111A-4021 LAPBAR AS - CUB YELLOW 2 (4021)

$92.99

$

Usually ships in 3-6 days

0

$80.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05113

Lapbar lever Assembly, Inr
(Superseded to 603E05113)

$58.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-05033A-0637

Lapbar Pivot Bracket

$42.99

$

In Stock, only 1 left!

0

4

Cub Cadet 703-09069-0637

Brake Lever Actuator

$6.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 941-00022

Lower Arm
(Superseded to 941-00022A)

$83.99

$

In Stock, only 3 left!

0

6

Cub Cadet 703-09325A-0637

Lapbar Pivot Support Bracket
(Superseded to 703-09325C-0637)

$32.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-04471

Screw, Shoulder Ball, 5/16-18 x .48

$27.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

10

Cub Cadet 720-05008

Lapbar Grip

$25.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-09831-0637

Cup Adjustment Bracket

$11.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 711-06068

Pin, .188 x 4.1

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 711-06094A

Ferrule, 3/8 ID x .420 Shldr

$15.99

$

In Stock, only 1 left!

0

14

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

19

Cub Cadet 727-04400A

Dampener, .87 OD x 7.06 Lg

$63.99

$

In Stock, only 1 left!

0

20

Cub Cadet 728-05012

Nut, 5/16-18

$5.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 732-05075

Compression Spring, .45 x 3.215

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet 732-1162

Extension Spring, .56 x 2.31 x .105

$8.99

$

In Stock, only 3 left!

0

23

Cub Cadet 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

24

Cub Cadet 736-0621

Washer, Wave, .785 x 1.0 x .012

$17.99

$

In Stock, Qty 8

0

25

Cub Cadet 710-1880

Hex Head Screw, 5/16-18 x .75 Patch

$4.99

$

In Stock, Qty 11

0

26

Cub Cadet 938-0255

Shoulder Screw, .375 Dia. x .181

$5.49

$

In Stock, Qty 6

0

27

Cub Cadet 738-05025

Shoulder Screw, .498 Dia. x 1.296

$7.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 738-05033

Shoulder Screw, .75 x 3.25 x 1/2-13

$16.99

$

In Stock, only 3 left!

0

29

Cub Cadet 738-05034

Shoulder Screw, .395 Dia. x .56

$7.49

$

In Stock, only 1 left!

0

30

Cub Cadet 741-04050

Bearing, .75 x 1.00 x .73

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 741-0748

Flange Bearing, .500 x .627

$11.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 738-05074

Shoulder Screw, .395 Dia. x .83

$8.99

$

In Stock, only 1 left!

0

33

Cub Cadet 747-06295

Lapbar Detent Rod, RH

$11.99

$

In Stock, only 1 left!

0

34

Cub Cadet 747-06294

Lapbar Detent Rod, LH

$11.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 747-06149A

Hydro Control Rod, RH

$15.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 747-06160A

Hydro Control Rod, LH

$15.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 711-06208

Adjustment Stud

$10.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 912-3020

Jam Lock Nut, 3/8-16

$6.49

$

In Stock, Qty 10

0

39

Cub Cadet 720-05049

Fluted Knob, 3/8-16

$9.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 726-05029

Push Cap, .250

$3.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 732-04630

Compression Spring, 1.245 x 1.275

$4.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 736-0148

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0
