Z-Force LZ48 (17BIDAGB010) - Cub Cadet 48" Z-Force Zero-Turn Mower (2015) Kawasaki FR730V-AS05 Cylinder & Crankcase Parts Diagram

48" Z-Force Zero-Turn Mower

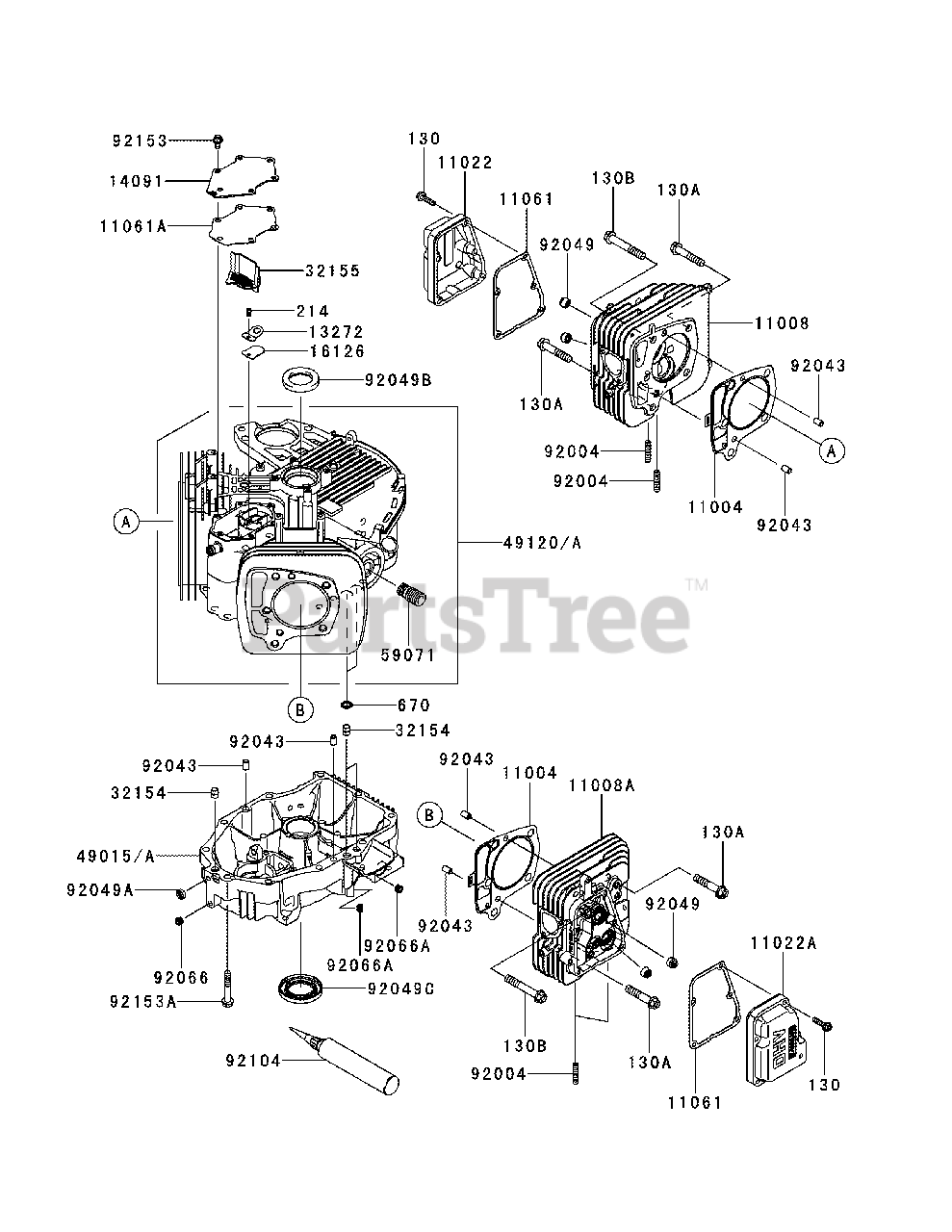

Kawasaki FR730V-AS05 Cylinder & Crankcase Parts Diagram

  • Title

11004

Cub Cadet KM-11004-7026

Head Gaket
(Superseded to KM-11004-0762)

$33.99

$

Usually ships in 3-6 days

0

11008

Cub Cadet KM-11008-0861

Complete Cylinder Head, #1

$236.99

$

In Stock, Qty 20+

0

11008A

Cub Cadet KM-11008-7040

Complete Cylinder Head, #2
(Superseded to KM-11008-0845)

$236.99

$

In Stock, Qty 12

0

11022

Cub Cadet KM-11022-7019

Rocker Case, #1

$16.99

$

In Stock, only 1 left!

0

11022A

Cub Cadet KM-11022-7020

Rocker Case, #2

$16.99

$

In Stock, only 1 left!

0

11061

Cub Cadet KM-11061-7083

Rocker Case Gasket
(Superseded to KM-11061-1285)

$4.49

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7094

Breather Gasket

$8.99

$

In Stock, Qty 20+

0

13272

Cub Cadet KM-13272-7004

Breather Plate

$

$

Not available

14091

Cub Cadet KM-14091-7064

Breather Cover

$2.49

$

In Stock, Qty 11

0

16126

Cub Cadet KM-16126-7020

Breather Valve

$4.99

$

In Stock, Qty 20+

0

32154

Cub Cadet KM-32154-7019

Pipe
(Superseded to KM-92043-0858)

$2.49

$

In Stock, Qty 20+

0

32155

Cub Cadet KM-32155-7003

Breather Pipe
(Superseded to KM-32155-2214)

$2.99

$

In Stock, Qty 11

0

49015

Cub Cadet KM-49015-7106

Crankcase Cover
(Superseded to KM-49015-0023)

$204.99

$

In Stock, only 4 left!

0

49015A

Cub Cadet KM-49015-7106

Crankcase Cover
(Superseded to KM-49015-0023)

$204.99

$

In Stock, only 4 left!

0

49120

Cub Cadet KM-49120-7134

Complete Crankcase
(Superseded to KM-49120-0858)

$609.99

$

Usually ships in 2-5 days

0

49120A

Cub Cadet KM-49120-7142

Complete Crankcase
(Superseded to KM-49120-0858)

$609.99

$

Usually ships in 2-5 days

0

59071

Cub Cadet KM-59071-2079

Joint

$6.49

$

In Stock, Qty 8

0

92004

Cub Cadet KM-92004-7024

Stud, 8 x 30

$6.99

$

In Stock, only 2 left!

0

92043

Cub Cadet KM-92043-1263

Pin

$0.99

$

In Stock, Qty 20+

0

92049

Cub Cadet KM-92049-7001

Oil Seal, RVC 26 x 11 x 10.2

$8.49

$

Usually ships in 2-5 days

0

92049A

Cub Cadet KM-92049-7019

Oil Seal, SO 8 x 14 x 5 HS

$2.49

$

In Stock, Qty 20+

0

92049B

Cub Cadet KM-92049-7010

Oil Seal, SD 35 x 48 x 8 R HS

$3.49

$

In Stock, Qty 20+

0

92049C

Cub Cadet KM-92049-7028

Oil Seal, 38 x 62 x 8MTCLV

$14.99

$

In Stock, Qty 20+

0

92066

Cub Cadet KM-92066-7023

Plug
(Superseded to KM-92066-0880)

$3.99

$

Usually ships in 2-5 days

0

92066A

Cub Cadet KM-92066-0762

Plug
(Superseded to KM-92066-0881)

$4.49

$

In Stock, Qty 6

0

92104

Cub Cadet KM-92104-0007

Liquid Gasket, TB1217H

$51.99

$

In Stock, Qty 15

0

92153

Cub Cadet KM-92153-7043

Bolt, 6 x 12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 20+

0

92153A

Cub Cadet KM-92153-7054

Bolt, 8 x 50

$2.99

$

In Stock, Qty 20+

0

130

Cub Cadet KM-130AA0625

Flanged Bolt, 6 x 25

$0.99

$

In Stock, Qty 20+

0

130A

Cub Cadet KM-130CA1050

Flange Bolt, 10 x 50

$4.49

$

In Stock, Qty 9

0

130B

Cub Cadet KM-130CA1065

Flange Bolt, 10 x 65

$2.99

$

In Stock, Qty 20+

0

214

Cub Cadet KM-214AA0408

Pan Screw, 4 x 8

$3.99

$

In Stock, Qty 11

0

670

Cub Cadet KM-670B2011

O-Ring, 11MM

$1.49

$
