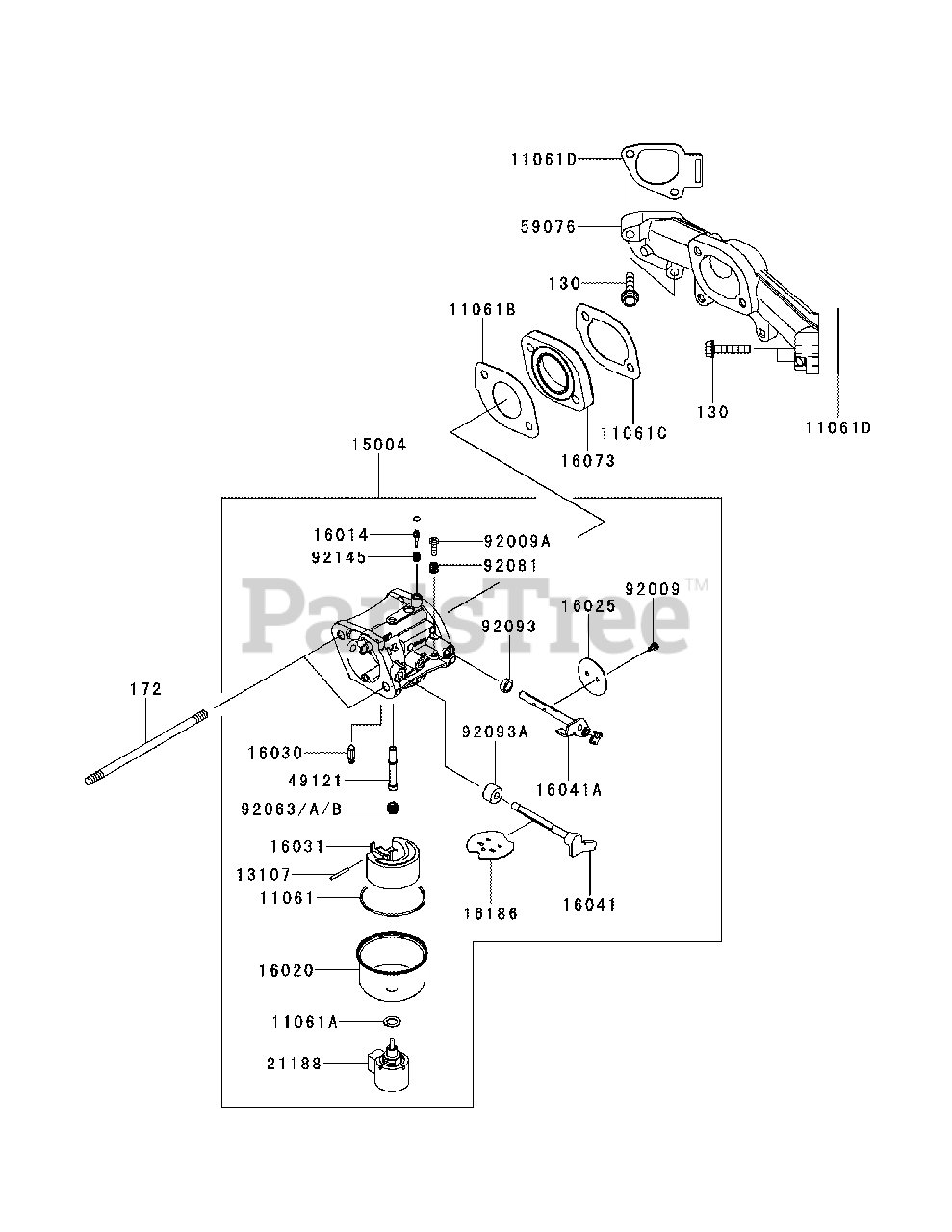

Kawasaki FR730V-AS05 Carburetor Parts Diagram

  • Title
11061

Cub Cadet KM-11061-7009

Chamber Gasket

$2.99

$

In Stock, Qty 20+

0

11061A

$3.49

$

In Stock, Qty 20+

0

11061B

Cub Cadet KM-11061-7087

Insulator Gasket

$1.99

$

In Stock, Qty 20+

0

11061C

Cub Cadet KM-11061-7088

Insulator/Manifold Gasket

$1.99

$

In Stock, Qty 9

0

11061D

Cub Cadet KM-11061-7093

Manifold Gasket

$1.99

$

In Stock, Qty 17

0

$4.49

$

In Stock, only 2 left!

0

15004

Cub Cadet KM-15004-0826

Carburetor Assembly
(Superseded to KM-15004-1097)

$455.99

$

Usually ships in 3-6 days

0

16014

Cub Cadet KM-16014-7010

Pilot Air Screw

$15.99

$

In Stock, only 1 left!

0

16020

Cub Cadet KM-16020-7003

Float Chamber

$14.99

$

In Stock, Qty 20+

0

16025

Cub Cadet KM-16025-7017

Throttle Valve

$16.99

$

Usually ships in 2-5 days

0

16030

$20.99

$

In Stock, Qty 15

0

$28.99

$

In Stock, Qty 20+

0

16041

Cub Cadet KM-16041-0007

Choke Carburetor Shaft

$16.99

$

In Stock, Qty 6

0

16041A

Cub Cadet KM-16041-7056

Throttle Carburetor Shaft

$31.99

$

In Stock, only 1 left!

0

16073

$8.99

$

In Stock, only 2 left!

0

16186

Cub Cadet KM-16186-7006

Choke Valve Assembly

$15.99

$

In Stock, only 1 left!

0

21188

$171.99

$

In Stock, only 2 left!

0

49121

$34.99

$

In Stock, only 1 left!

0

59076

Cub Cadet KM-59076-7019

Intake Manifold
(Superseded to KM-59076-0009)

$159.99

$

Usually ships in 2-5 days

0

$2.49

$

In Stock, Qty 5

0

$1.49

$

In Stock, only 3 left!

0

92063

Cub Cadet KM-92063-7141

Main Jet, #122

$12.99

$

Usually ships in 2-5 days

0

92063A

Cub Cadet KM-92063-7142

Main Jet, #124

$13.99

$

In Stock, only 1 left!

0

92063B

Cub Cadet KM-92063-7149

Main Jet, #120

$13.99

$

In Stock, only 1 left!

0

$4.49

$

In Stock, only 4 left!

0

$3.49

$

In Stock, Qty 20+

0

$4.49

$

In Stock, only 1 left!

0

$2.49

$

In Stock, only 2 left!

0

130

Cub Cadet KM-130AA0630

Flanged Bolt, 6 x 30

$1.99

$

In Stock, only 3 left!

0

172

Cub Cadet KM-172BA06115

Stud Bolt, 6 x 115

$2.99

$

In Stock, Qty 14

0
