Z-Force LX48 KW FAB (17RIDAUB010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Fab Deck, Kawasaki (2019) Transmission (RH) Parts Diagram

48" Z-Force Zero-Turn Mower, Fab Deck, Kawasaki

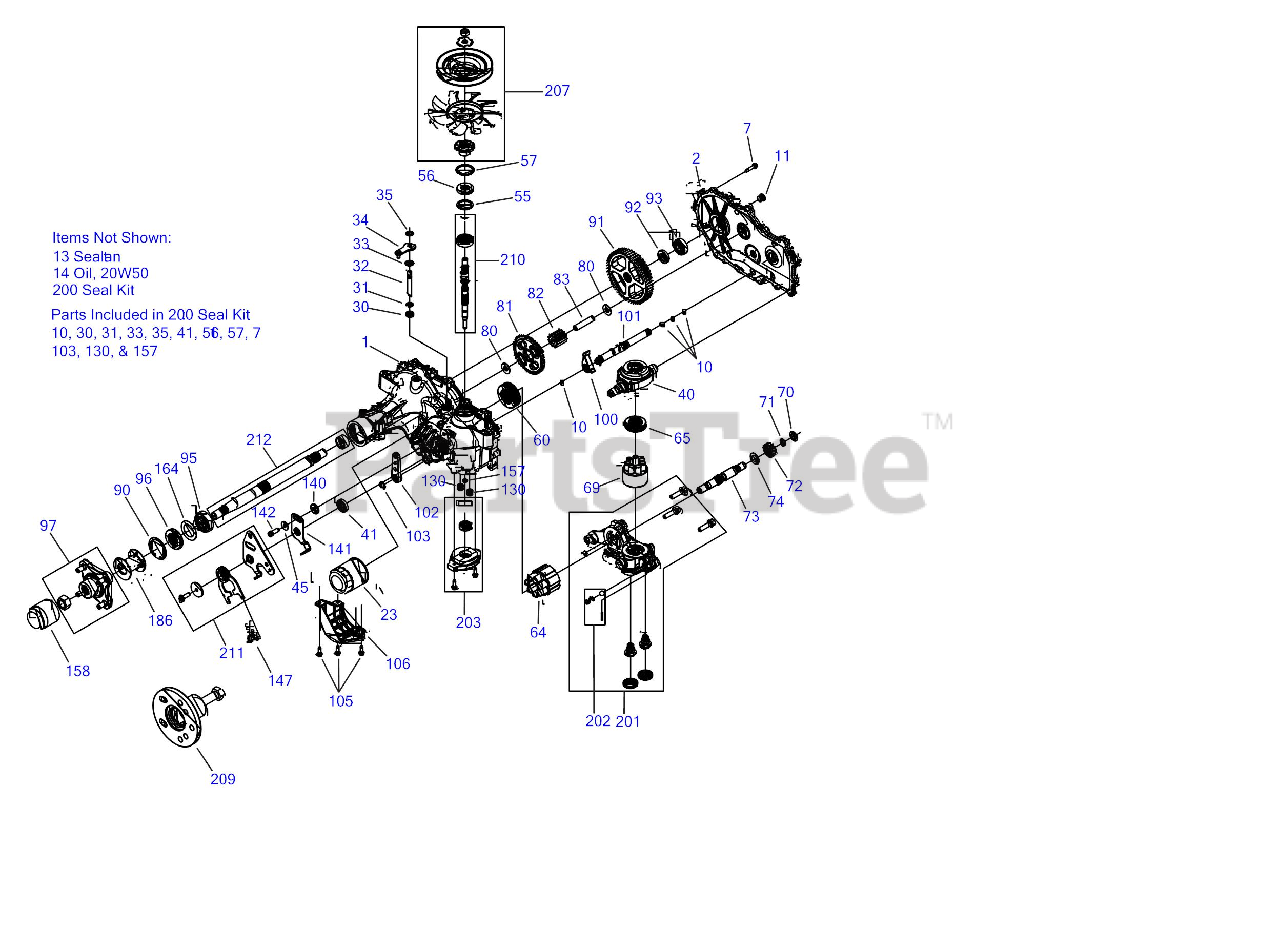

Transmission (RH) Parts Diagram

  • Title

1

Cub Cadet HG-71413

Kit, Main Housing, RH Charge

$228.99

$

Usually ships in 3-6 days

0

2

Cub Cadet HG-71572

Kit, Side Cover RH

$132.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-53246

Screw, Hex Washer

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-51804

O-Ring

$3.49

$

In Stock, only 1 left!

0

11

Cub Cadet HG-9005110-5600

Plug, 9/16-18

$20.99

$

Usually ships in 3-6 days

0

23

Cub Cadet HG-52114P

Filter, Spin-On 2.6 x 3.0

$32.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-51626

Seal, Lip, .375 x .75 x .25
(Superseded to HG-55232)

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-51628

Ring, Retaining .375 External

$4.49

$

In Stock, Qty 14

0

32

Cub Cadet HG-52136

Rod, Bypass

$9.99

$

In Stock, only 1 left!

0

33

Cub Cadet HG-51627

Ring Retaining .750 Internal

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-52370

Arm, Bypass

$9.99

$

Usually ships in 3-6 days

0

35

Cub Cadet HG-51630

Ring, Ret .375 External

$3.99

$

In Stock, only 1 left!

0

40

Cub Cadet HG-51048

Trunnion, Swashplate

$88.99

$

Usually ships in 3-6 days

0

41

Cub Cadet HG-51140

Seal, Lip 18 x 32 x 7

$9.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 736-0371

Washer, .34 x .88 x .06

$4.49

$

In Stock, only 3 left!

0

55

Cub Cadet HG-50951

Washer, 1.23 x 1.57 x .04

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet HG-51161

Seal, Lip 17 x 40 x 7

$11.99

$

Usually ships in 3-6 days

0

57

Cub Cadet HG-50329

Ring Retaining Internal

$11.99

$

Usually ships in 3-6 days

0

60

Cub Cadet HG-51462

Bearing, Thrust 35 x 62 x 18
(Superseded to HG-51462P)

$33.99

$

Usually ships in 3-6 days

0

64

Cub Cadet HG-71579

Kit, 16cc Cylinder Block Assembly
(Superseded to HG-72882)

$140.99

$

Usually ships in 3-6 days

0

65

Cub Cadet HG-50551P

Thrust Bearing, 30 x 52 x 13

$29.99

$

Usually ships in 3-6 days

0

69

Cub Cadet HG-70723

Kit, Block, 7 Piston

$228.99

$

Usually ships in 3-6 days

0

70

Cub Cadet HG-44371

Washer, .63 x 1.00 x .05

$15.99

$

Usually ships in 3-6 days

0

71

Cub Cadet HG-44145

Ring, Reatining, Motor Shaft

$4.49

$

In Stock, only 2 left!

0

72

Cub Cadet HG-52341

Gear, 14T (Steel)

$51.99

$

Usually ships in 3-6 days

0

73

Cub Cadet HG-52150

Shaft, Motor

$81.99

$

Usually ships in 3-6 days

0

74

Cub Cadet HG-51069

Washer, .71 x 1.16 x .04

$4.49

$

Usually ships in 3-6 days

0

80

Cub Cadet HG-50132

Washer

$4.49

$

Usually ships in 3-6 days

0

81

Cub Cadet HG-52110

Gear, 45T

$25.99

$

Usually ships in 3-6 days

0

82

Cub Cadet HG-52586

Gear, 11T (Steel)

$39.99

$

Usually ships in 3-6 days

0

83

Cub Cadet HG-51083

Pin, Jackshaft

$33.99

$

Usually ships in 3-6 days

0

90

Cub Cadet HG-50859

Ring, Retaining 2.25 Internal

$6.99

$

Usually ships in 3-6 days

0

91

Cub Cadet HG-52108

Gear, 54T

$73.99

$

Usually ships in 3-6 days

0

92

Cub Cadet HG-53336

Spacer, .750 x 1.00 x .257

$3.99

$

Usually ships in 3-6 days

0

93

Cub Cadet HG-53071

Bearing, Ball 3/4 x 40mm x 12mm

$12.99

$

Usually ships in 3-6 days

0

95

Cub Cadet HG-53656

Bearing, Ball 25.4 x 52 x 15

$17.99

$

In Stock, only 2 left!

0

96

Cub Cadet HG-53699

Seal, Lip, 1.0 x 2.06 x .38

$9.49

$

In Stock, only 2 left!

0

97

Cub Cadet HG-71445

Kit, Hub 4-Bolt

$102.99

$

Usually ships in 3-6 days

0

100

Cub Cadet HG-52766

Pawl, Brake

$8.99

$

Usually ships in 3-6 days

0

101

Cub Cadet HG-72046

Kit, brake Shaft

$81.99

$

Usually ships in 3-6 days

0

102

Cub Cadet HG-53973

Handle, Actuating

$11.99

$

Usually ships in 3-6 days

0

103

Cub Cadet HG-53019

Ring, Retaining, External .438

$2.49

$

In Stock, only 3 left!

0

105

Cub Cadet HG-50752

Screw, Hex Washer 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

106

Cub Cadet HG-53655

Guard, Filter, RH

$18.99

$

Usually ships in 3-6 days

0

111

Cub Cadet HG-71393

Kit, Fitting 1/2 Beaded 9/16 SAE

$47.99

$

Usually ships in 3-6 days

0

130

Cub Cadet HG-54501

Tube, Charge Triple O-Ring

$4.99

$

In Stock, Qty 14

0

140

Cub Cadet HG-52527

Spacer, .320 x 1.005 x .150
(Superseded to HG-54315)

$2.99

$

Usually ships in 3-6 days

0

141

Cub Cadet HG-51945

Arm, Neutral Right

$13.99

$

In Stock, only 1 left!

0

142

Cub Cadet HG-71341

SHCS, 5/16-24 x 7/8 (W/Patch)

$9.49

$

Usually ships in 3-6 days

0

147

Cub Cadet 732-04448

Spring, Extension

$10.99

$

In Stock, Qty 19

0

157

Cub Cadet HG-72291

Seal, Gerotor .281 x .420 x .160

$12.99

$

Usually ships in 3-6 days

0

158

Cub Cadet HG-53501

Cap, Axle

$11.99

$

Usually ships in 3-6 days

0

164

Cub Cadet HG-53514

Spacer, 1.355 x 2.035 x .021

$4.99

$

Usually ships in 3-6 days

0

186

Cub Cadet HG-53496

Tube, Axle 2.03

$4.99

$

Usually ships in 3-6 days

0

200

Cub Cadet HG-71410

Kit. Seal, ZT-2800
(Superseded to HG-73107)

$72.99

$

Usually ships in 3-6 days

0

201

Cub Cadet HG-72568

Kit, Center Section RH Charge

$231.99

$

Usually ships in 3-6 days

0

202

Cub Cadet HG-71436

Kit, Charge Relief

$10.99

$

Usually ships in 3-6 days

0

203

Cub Cadet HG-72274

Kit, Charge

$114.99

$

Usually ships in 3-6 days

0

207

Cub Cadet HG-72135

Kit, Fan Pulley

$63.99

$

In Stock, only 1 left!

0

207

Cub Cadet HG-53994

Fan Only
(Superseded to HG-55217)

$15.99

$

In Stock, only 1 left!

0

207

Cub Cadet HG-53812

Pulley Hub

$6.49

$

Usually ships in 3-6 days

0

207

Cub Cadet HG-51523

Washer

$3.99

$

In Stock, Qty 8

0

207

Cub Cadet HG-44133

Nut

$4.99

$

In Stock, only 4 left!

0

209

Cub Cadet HG-72320

Kit, Hub Puller

$231.99

$

Usually ships in 3-6 days

0

210

Cub Cadet HG-71442

Kit, Input Shaft
(Superseded to HG-73047)

$88.99

$

Usually ships in 3-6 days

0

211

Cub Cadet HG-71588

Kit, RTN Bidirectional

$48.99

$

In Stock, only 1 left!

0

212

Cub Cadet HG-71570

Kit, Shaft Axle

$178.99

$

Usually ships in 3-6 days

0

Cub Cadet 918-06016B

Transmission Assembly (RH)

$2121.99

$

Usually ships in 3-6 days

0
