Z-Force LE60 KH FAB (17ATDAGD009) - Cub Cadet 60" Z-Force Zero-Turn Mower, Fab Deck, Kohler (2016) Frame Parts Diagram

60" Z-Force Zero-Turn Mower, Fab Deck, Kohler

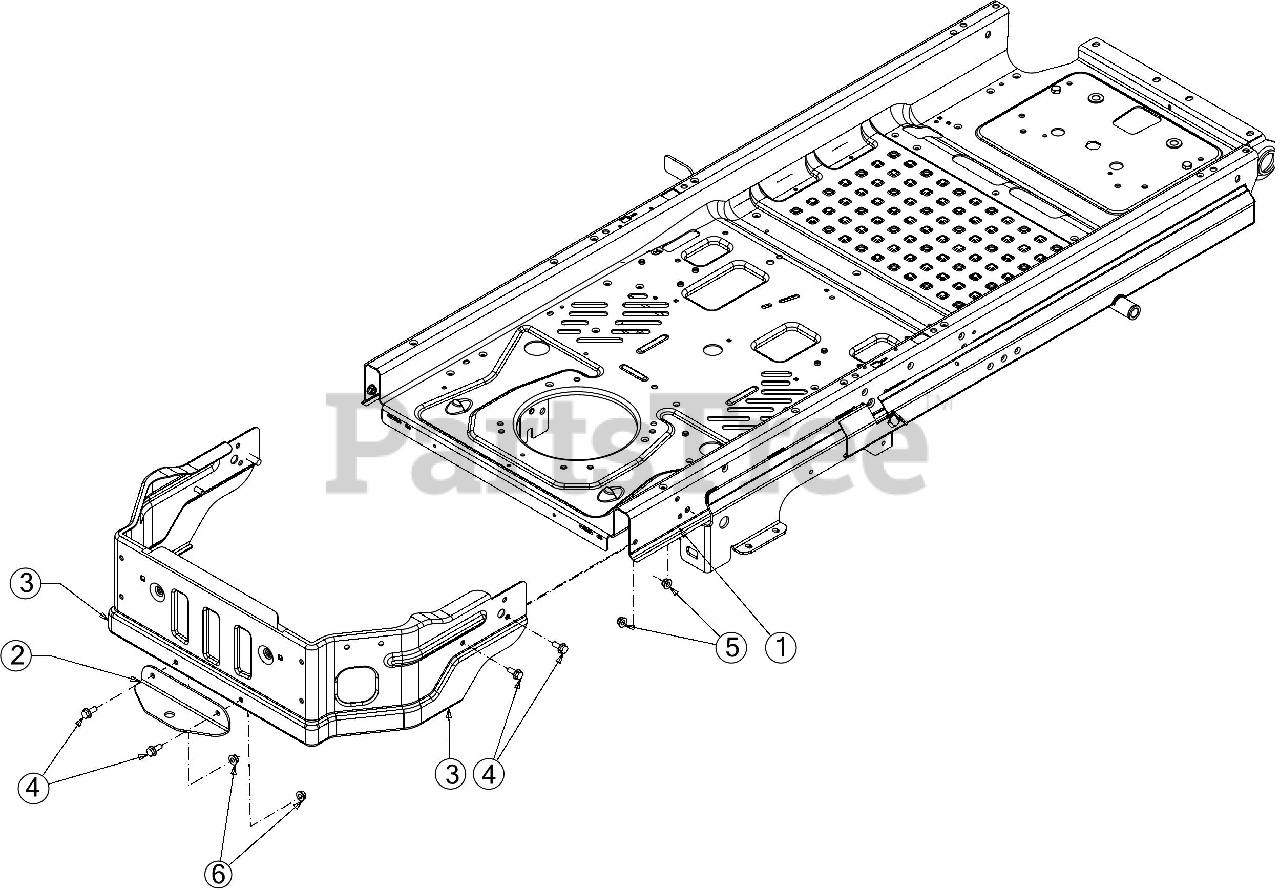

Frame Parts Diagram

  • Title

1

Cub Cadet 603-05300

FRAME ASSEMBLY

Variations

Cub Cadet 603-05300-0637

FRAME ASM-RZF S/L - POWDER BLACK (0637)

$1809.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05300-0691

FRAME ASM-RZF S/L - BLACK JACK (0691)

$1683.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05300-4021

FRAME ASM-RZF S/L - CUB YELLOW 2 (4021)

$1464.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05300-4033

FRAME ASM-RZF S/L - FLINT MICA (4033)

$1464.99

$

Usually ships in 3-6 days

0

$1464.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 703-08615A-0637

TRANSMISSION MOUNTING BRACKET (LH)

$11.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 703-08614A-0637

TRANSMISSION MOUNTING BRACKET (RH)

$11.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 703-09306-0637

DECK HANGER BRACKET

$42.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 18

0

1

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

1

Cub Cadet 703-09578D-0637

RZT FRAME
(Superseded to 703-09578K-0637)

$720.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-07543D-0637

TOW HITCH

$46.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09302A-0637

REAR BUMPER

$169.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04043

SCREW 5/16-18

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04339

FLANGE NUT

$3.99

$

In Stock, only 1 left!

0
