Z-Force L54 KH FAB (17ASDALC056) - Cub Cadet 54" Z-Force Zero-Turn Mower, Fab Deck, Kohler (2017) Deck Parts Diagram

54" Z-Force Zero-Turn Mower, Fab Deck, Kohler

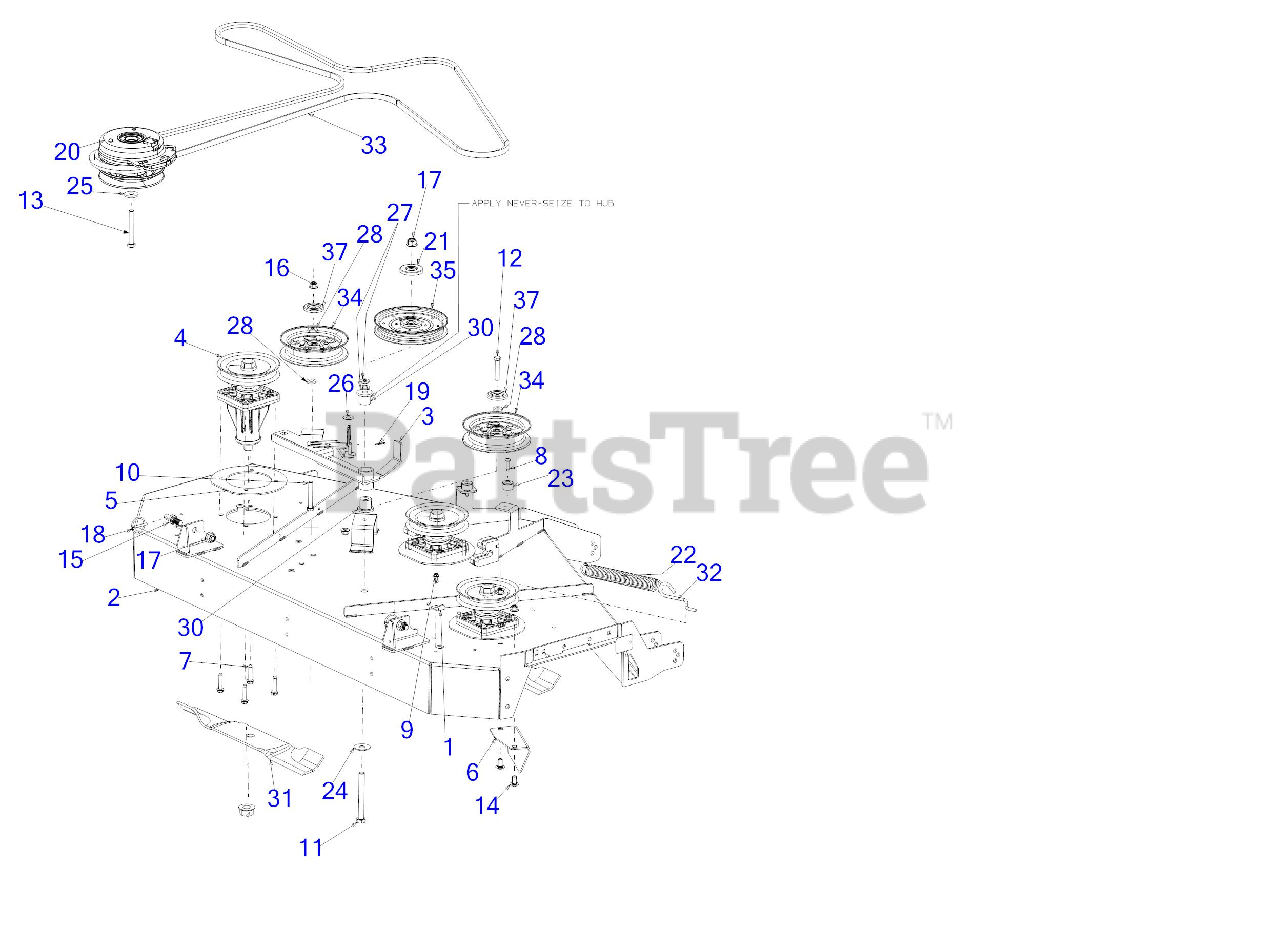

Deck Parts Diagram

  • Title

1

Cub Cadet 96606

HOOK RETAINER BRACKET

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 903-05096B-0637

54"FAB DECK SHELL

$1856.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603E05285

IDLER ARM ASSEMBLY
(Superseded to 603E05285B)

$161.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09583-0637

BELT GUARD BRACKET

Note: (Not Shown)

$13.99

$

In Stock, Qty 20+

0

4

Cub Cadet 918-06993A

BLADE SPINDLE ASSEMBLY (W/PULLEY)

Note: (See Separate Breakdown)

$195.99

$

In Stock, only 3 left!

0

5

Cub Cadet 703-07787-0637

SPINDLE REINFORCEMENT PLATE

$33.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09593-0637

DECK CHUTE BAFFLE
(Superseded to 703-09593A-0637)

$28.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-04605A

SCREW 5/16-18 x 1.50
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-05074

SCREW 1/4-20 x 1.0

$3.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 17

0

11

Cub Cadet 710-1807

SCREW 1/2-13 x 4.5 GR 5

$11.99

$

In Stock, only 1 left!

0

12

Cub Cadet 710-3144

SCREW 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3157A

SCREW 7/16-20 x 3.25 GR5

$10.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-06200B

DECK PIN

$6.49

$

In Stock, only 2 left!

0

16

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 753-04070

LYNCH PIN

$9.99

$

In Stock, Qty 20+

0

19

Cub Cadet 914-0507

COTTER PIN 3/32

$4.49

$

In Stock, Qty 17

0

20

Cub Cadet 917-05192

ELECTRIC PTO CLUTCH

$623.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 721-04850

PULLEY CAP 1/2"

$14.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-04927

EXTENSION SPRING

$22.99

$

In Stock, Qty 20+

0

23

Cub Cadet 735-05147

BUMPER

$5.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 936-0208

WASHER .51 x 1.5 x .07
(Superseded to 736-0208)

$

$

Not available

25

Cub Cadet 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 8

0

26

Cub Cadet 936-0344

FLAT WASHER
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-04606

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 936-3004

FLAT WASHER
(Superseded to 736-3004)

$

$

Not available

30

Cub Cadet 741-05211

SHOULDER SPACER

$9.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 942-04416

19" BLADE (HI LIFT)

$28.99

$

In Stock, Qty 20+

0

32

Cub Cadet 747-05608

DECK SPRING HOOK
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

33

Cub Cadet 954-05013

V-BELT B SEC x 154

$83.99

$

In Stock, only 2 left!

0

34

Cub Cadet 756-05053A

IDLER PULLEY 5.0" DIA

$83.99

$

In Stock, only 1 left!

0

35

Cub Cadet 756-05212

IDLER PULLEY 6.0" DIA

$83.99

$

In Stock, only 1 left!

0

37

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0
