Z-Force L54 (17BSDALC010) - Cub Cadet 54" Z-Force Zero-Turn Mower (2015) Mower Deck 54-Inch Parts Diagram

54" Z-Force Zero-Turn Mower

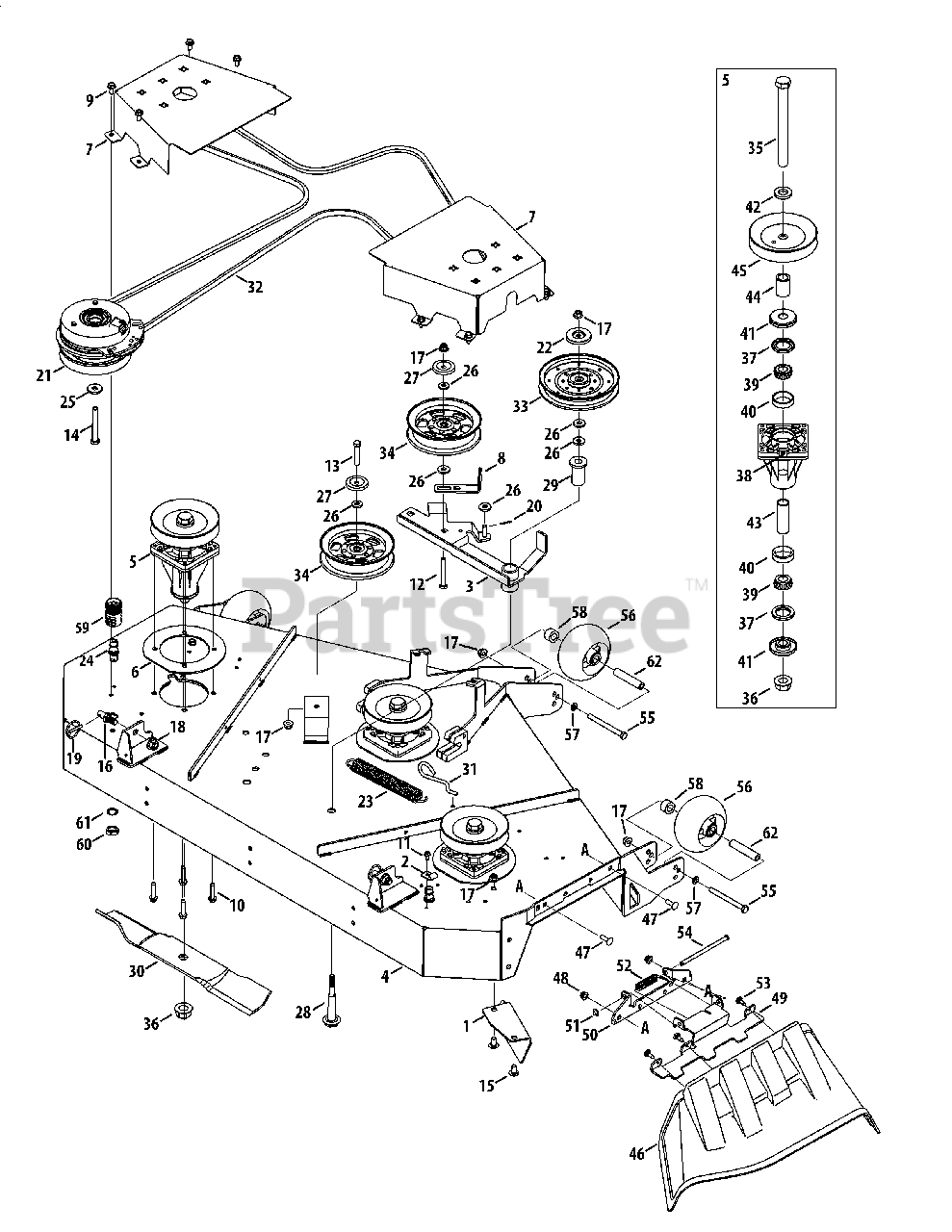

Mower Deck 54-Inch Parts Diagram

  • Title

1

Cub Cadet 703-09593-0637

Chute Baffle
(Superseded to 703-09593A-0637)

$28.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 96606

Bracket, Hook Retainer

$7.49

$

In Stock, Qty 7

0

3

Cub Cadet 903-05081A

Deck Idler Assembly
(Superseded to 903-05266)

$146.99

$

In Stock, only 2 left!

0

4

Cub Cadet 903-05096-0637

54" Deck
(Superseded to 903-05096B-0637)

$1856.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 918-06993

Spindle Assembly
(Superseded to 918-06993A)

$195.99

$

In Stock, only 3 left!

0

6

Cub Cadet 703-07787-0637

Spindle Reinforcement Plate

$33.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09352A-4021

Belt Cover

$71.99

$

In Stock, only 1 left!

0

8

Cub Cadet 703-09583-0637

Bracket, Deck Keeper

$13.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04605A

Hex Washer Screw, 5/16-18 x 1.50
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0859

Hex Cap Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 16

0

13

Cub Cadet 710-3144

Hex Cap Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3157A

Screw, 7/16-20 x 3.25

$10.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3178

Carriage Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 711-06200

Pin, Shoulder Lock, .500
(Superseded to 711-06200B)

$6.49

$

In Stock, only 2 left!

0

17

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 753-04070

Pin, Lynch x .1875

$9.99

$

In Stock, Qty 20+

0

20

Cub Cadet 914-0507

Cotter Pin 3/32" Dia. x .75 Lg.

$4.49

$

In Stock, Qty 17

0

21

Cub Cadet 917-05192

Electric PTO Clutch

$623.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 721-04516

Pulley Cap

$14.99

$

In Stock, only 2 left!

0

23

Cub Cadet 732-04927

Extension Spring, 1.25 OD x 1.751

$22.99

$

In Stock, Qty 20+

0

24

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

25

Cub Cadet 736-0322

Flat Washer, .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

26

Cub Cadet 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

27

Cub Cadet 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

28

Cub Cadet 738-05049A

Shoulder Boult, .625 x 2.12, 3/8-16

$13.99

$

In Stock, only 1 left!

0

29

Cub Cadet 741-05056

Shoulder Spacer, 1.055 x .627 x 2.292

$11.99

$

In Stock, only 1 left!

0

30

Cub Cadet 942-04416

Blade, 19.00

$28.99

$

In Stock, Qty 20+

0

31

Cub Cadet 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

32

Cub Cadet 954-05013

V-Belt

$83.99

$

In Stock, only 2 left!

0

33

Cub Cadet 756-04487

Idler Pulley, 6.00 Dia

$66.99

$

In Stock, Qty 12

0

34

Cub Cadet 756-05053

Idler Pulley, 5.00 Dia.
(Superseded to 756-05053A)

$83.99

$

In Stock, only 1 left!

0

35

Cub Cadet 710-06120

Hex Cap Screw, 3/4-16 x 8.25

$17.99

$

In Stock, only 4 left!

0

36

Cub Cadet 712-3078

Nut, 3/4-16, Flangelock

$9.99

$

In Stock, Qty 20+

0

37

Cub Cadet 921-3018A

Oil Seal

$8.49

$

In Stock, Qty 20+

0

38

Cub Cadet 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 941-04089

Cone Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

40

Cub Cadet 941-04091

Cup Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

41

Cub Cadet 748-3065A

Spindle Spacer

$13.99

$

In Stock, Qty 14

0

42

Cub Cadet 750-05553

Spacer, .812 ID x .218 LG

$9.99

$

In Stock, Qty 20+

0

43

Cub Cadet 750-06139

Spacer, .78 x 1.00 x 2.895

$11.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 750-06145

Spacer, .792 x 1.20 x 1.628

$6.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 756-04459A

V-Type Pulley

$33.99

$

In Stock, only 1 left!

0

46

Cub Cadet 631-05176

Discharge Chute Assembly
(Superseded to 631-05544)

$106.99

$

In Stock, only 1 left!

0

47

Cub Cadet 710-0276

Carriage Bolt, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 703-09625A-0637

Chute Bracket

$52.99

$

In Stock, only 1 left!

0

50

Cub Cadet 703-09626

Chute Bracket
(Superseded to 703-09626A)

Variations

Cub Cadet 703-09626-0637

USE 703-09626A-0637 BRKT-CHUT - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$20.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 726-04009

Push Cap
(Superseded to 726-04009A)

$7.49

$

In Stock, only 2 left!

0

52

Cub Cadet 732-05128A

Torsion Spring

$4.49

$

In Stock, only 1 left!

0

53

Cub Cadet 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0

54

Cub Cadet 747-06318

Chute Rod
(Superseded to 747-06318A)

$10.99

$

In Stock, only 1 left!

0

55

Cub Cadet 710-0411

Hex Cap Screw, 3/8-16 x 4.0

$8.49

$

In Stock, Qty 17

0

56

Cub Cadet 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

57

Cub Cadet 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 750-06193

Shoulder Spacer, .500 x 3.09

$3.49

$

In Stock, Qty 20+

0

59

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

60

Cub Cadet 912-0641

Hex Nut, M-16 x 1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

61

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

62

Cub Cadet 750-06199

Spacer, .380 x .495 x 3.450

$8.49

$

In Stock, only 3 left!

0
