Z-Force L48 Camo (17CSDALB056) - Cub Cadet 48" Z-Force Zero-Turn Mower, Camo (2016) Deck Parts Diagram

48" Z-Force Zero-Turn Mower, Camo

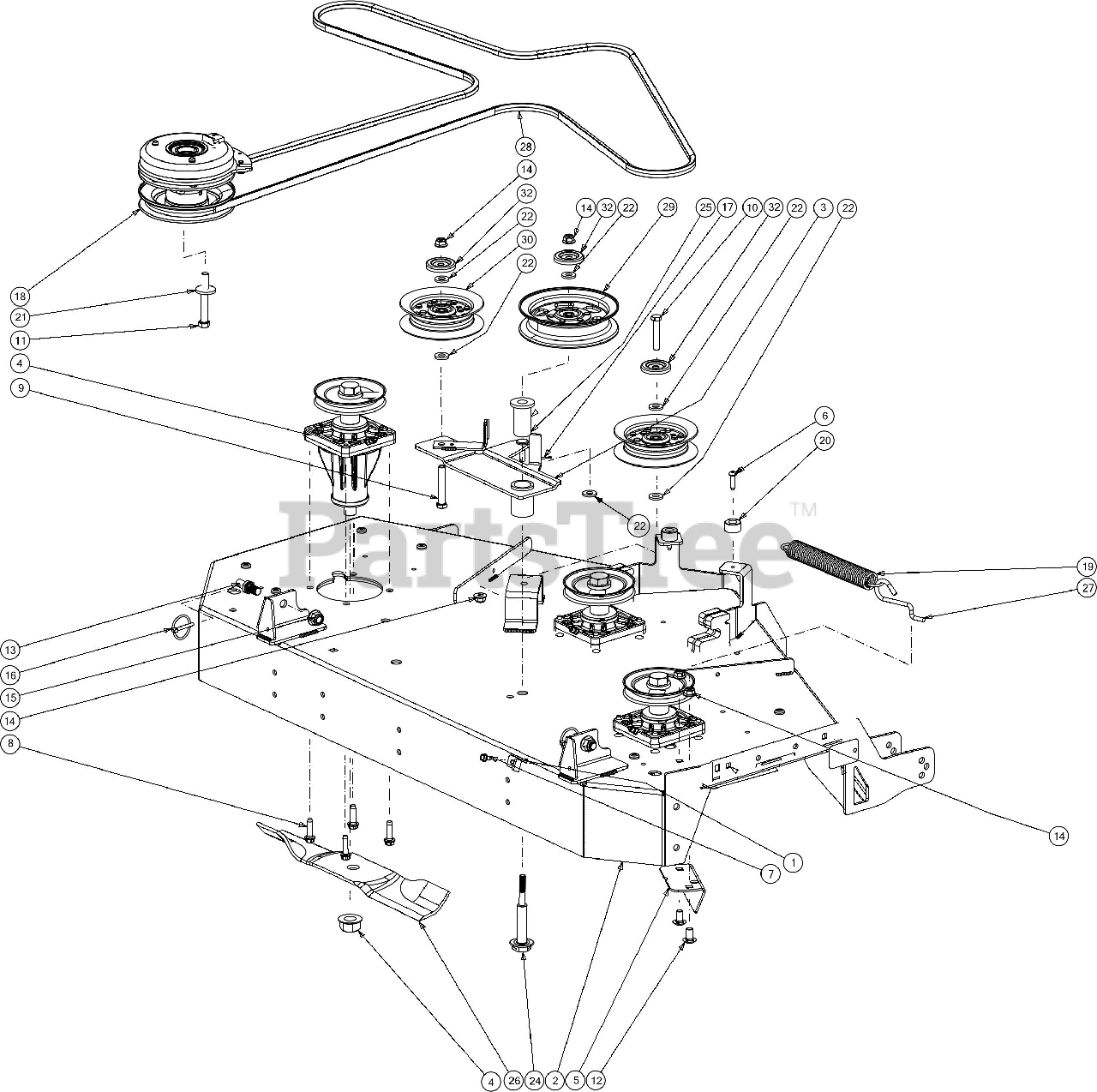

Deck Parts Diagram

  • Title

1

Cub Cadet 96606

HOOK RETAIN BRACKET

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 903-05097B-4028

48" FAB DECK SHELL
(Superseded to 903-05097C-4028)

$1251.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 783-08027-0637

BELT GUARD 54"

Note: (Not Shown)

$22.99

$

In Stock, only 1 left!

0

3

Cub Cadet 903-05265

48" DECK IDLER ASSEMBLY
(Superseded to 759-05108)

$216.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-06120

SCREW 3/4-16 X 8.25 GR5

Note: (Not Shown)

$17.99

$

In Stock, only 4 left!

0

4

Cub Cadet 712-3078

HEX FLANGE NUT 3/4

Note: (Not Shown)

$9.99

$

In Stock, Qty 20+

0

4

Cub Cadet 748-3065A

DECK SPINDLE SPACER

Note: (Not Shown)

$13.99

$

In Stock, Qty 14

0

4

Cub Cadet 750-05553

SPACER .812 ID X .218 LG

Note: (Not Shown)

$9.99

$

In Stock, Qty 20+

0

4

Cub Cadet 750-06139

SPACER

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 750-06145

SPACER

Note: (Not Shown)

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 756-3089

PULLEY-4.50 OD

Note: (Not Shown)

$36.99

$

In Stock, only 3 left!

0

4

Cub Cadet 918-06994A

SPINDLE ASSEMBLY

$195.99

$

In Stock, Qty 14

0

4

Cub Cadet 921-3018A

SINGLE LIP SEAL

Note: (Not Shown)

$8.49

$

In Stock, Qty 20+

0

4

Cub Cadet 937-3000

GREASE FITTING

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 941-04089

BEARING CONE
(Superseded to 941-04298)

Note: (Not Shown)

$16.99

$

In Stock, Qty 18

0

4

Cub Cadet 941-04091

BEARING CUP
(Superseded to 941-04299)

Note: (Not Shown)

$6.99

$

In Stock, Qty 20+

0

5

Cub Cadet 703-09435-0637

DECK CHUTE BAFFLE

$19.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-05074

SCREW 1/4-20 X 1.0

$3.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0817

SCREW 5/16-18 X 1.25

$6.99

$

In Stock, Qty 15

0

9

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 17

0

10

Cub Cadet 710-3144

SCREW 3/8-16 X 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3157A

SCREW 7/16-20 x 3.25 GR5

$10.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 711-06200A

DECK PIN
(Superseded to 711-06200B)

$6.49

$

In Stock, only 2 left!

0

14

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 753-04070

LYNCH PIN

$9.99

$

In Stock, Qty 20+

0

17

Cub Cadet 914-0507

COTTER PIN 3/32

$4.49

$

In Stock, Qty 17

0

18

Cub Cadet 917-05188

ELECTRIC PTO CLUTCH

$481.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-04927

EXTENSION SPRING

$22.99

$

In Stock, Qty 20+

0

20

Cub Cadet 735-05147

BUMPER

$5.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0322

FLAT WASHER .445 X 1.248 X .170

$9.49

$

In Stock, Qty 8

0

22

Cub Cadet 936-3004

FLAT WASHER
(Superseded to 736-3004)

$

$

Not available

24

Cub Cadet 738-05049A

SHOULDER BOLT

$13.99

$

In Stock, only 1 left!

0

25

Cub Cadet 741-05056

SHOULDER SPACER

$11.99

$

In Stock, only 1 left!

0

26

Cub Cadet 942-04417

17" BLADE (HI LIFT)

$28.99

$

In Stock, Qty 20+

0

26

Cub Cadet 490-110-C185

Cub Cadet 48" HI LIFT BLADE SET

Note: Retail Packaged Part

$86.99

$

In Stock, only 1 left!

0

26

Cub Cadet 942-04417-ES

17" HI-LIFT BLADE 0.756 ID
(Superseded to 742-04417-ES)

$50.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 742P04417-L

LOW-LIFT 17" BLADE (48"DECK)

$27.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02005017-X

BLADE-HI LIFT 17.0
(Superseded to 02005017P-X)

$29.99

$

In Stock, Qty 8

0

26

Cub Cadet 942-04278A

17" BLADE (MULCH)
(Superseded to 742P04278A-X)

$39.99

$

In Stock, Qty 6

0

27

Cub Cadet 747-05608

DECK SPRING HOOK
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

28

Cub Cadet 954-05012A

DECK BELT A SEC X 137"

$80.99

$

In Stock, only 1 left!

0

28

Cub Cadet 490-501-C093

Cub Cadet 48"Z-FORCEDECK BELT (05012)

Note: Retail Packaged Part

$80.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 756-05053

IDLER PULLEY 5.0
(Superseded to 756-05053A)

$83.99

$

In Stock, only 1 left!

0

30

Cub Cadet 756-05062

IDLER PULLEY 4.0

$68.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0
