Z-Force L48 Camo (17CSDALB009) - Cub Cadet 48" Z-Force Zero-Turn Mower, Camo (2015) Operators Platform Parts Diagram

48" Z-Force Zero-Turn Mower, Camo

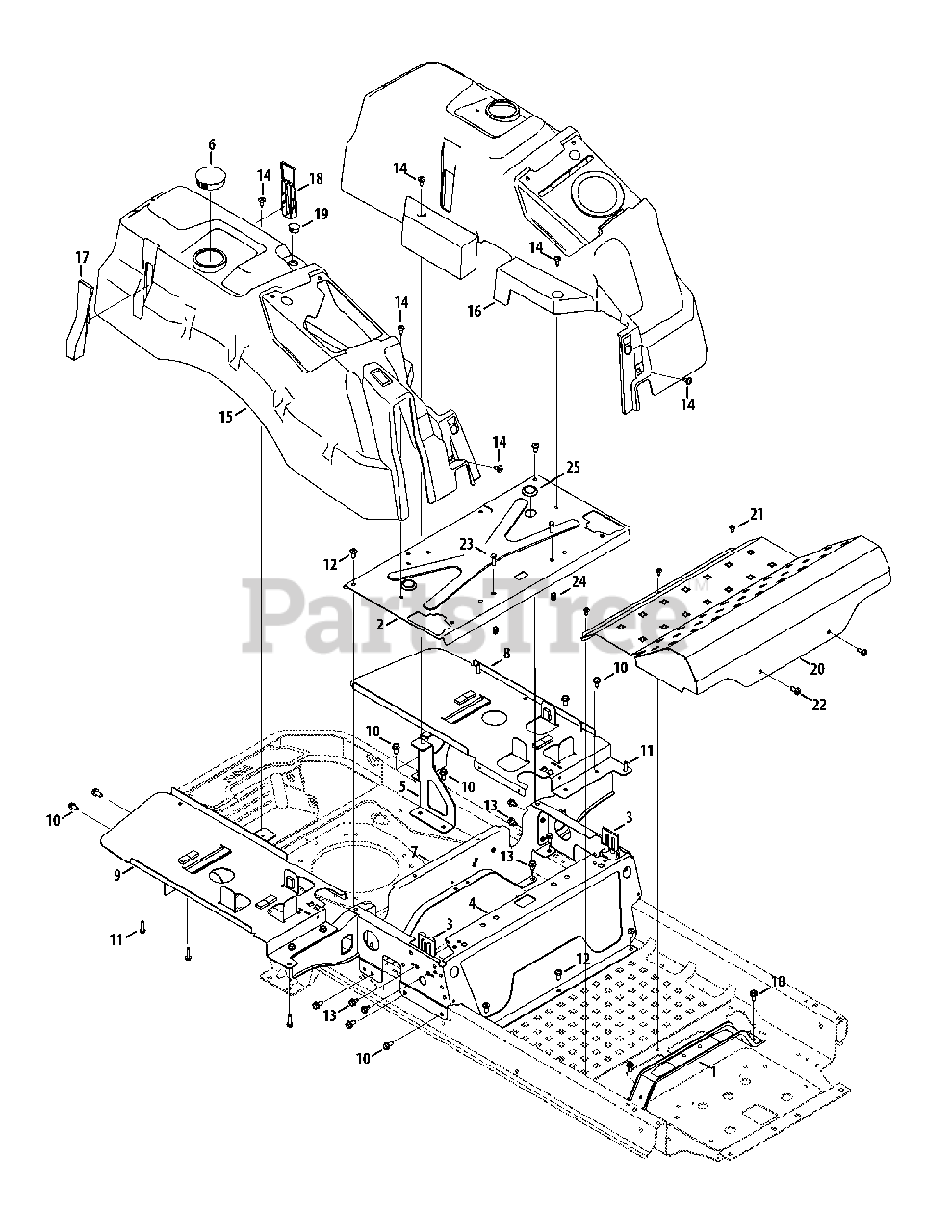

Operators Platform Parts Diagram

  • Title
1

Cub Cadet 703-08620A-0637

Steering Support Bracket

$34.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09045D-0637

Seatbox Plate
(Superseded to 703-09045J-0637)

$45.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09211A-0637

Lapbar Brace Bracket

$7.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09320-0637

Seat Frame
(Superseded to 703-09320F-0637)

$94.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09326A-0637

Rear Support Bracket, LH

$32.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09330A-0637

Rear Support Bracket, RH

$37.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 731-10097

Plug, 2.50 Dia.

Note: If Equipped

$8.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09332A-0637

Rear Seatbox Brace
(Superseded to 703-11179)

$47.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-09404A-0637

Tank Support Plate, LH

$82.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-09775-0637

Tank Support Plate, RH

$82.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.49

$

In Stock, only 3 left!

0

13

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .50

$6.99

$

In Stock, Qty 9

0

14

Cub Cadet 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0

15

Cub Cadet 931-05278

RH Console, Camo

$817.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 931-10961

LH Console, Camo

$703.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-10094A

Outer Pod Plug

Note: If Equipped

$7.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-10095A

Inner Pod Plug

Note: If Equipped

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-10096

Plug, .875 Dia.

Note: If Equipped

$2.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 603-05094A-0637

Floor Board, Fab

$167.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-05070

Screw, 1/4-20 x .50, Black
(Superseded to 710-05070A)

Note: 710-05070A

$6.99

$

In Stock, Qty 7

0

22

Cub Cadet 710-1611B

Screw, 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

23

Cub Cadet 710-0643

Hex Cap Screw, 5/16-18 x 1.00

$6.99

$

In Stock, Qty 5

0

24

Cub Cadet 728-04068

Nut, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 726-3045A

Button Plug

$4.99

$

In Stock, Qty 6

0
