Z-Force L48 (17BSDALB010) - Cub Cadet 48" Z-Force Zero-Turn Mower (2015) Front Axle Parts Diagram

48" Z-Force Zero-Turn Mower

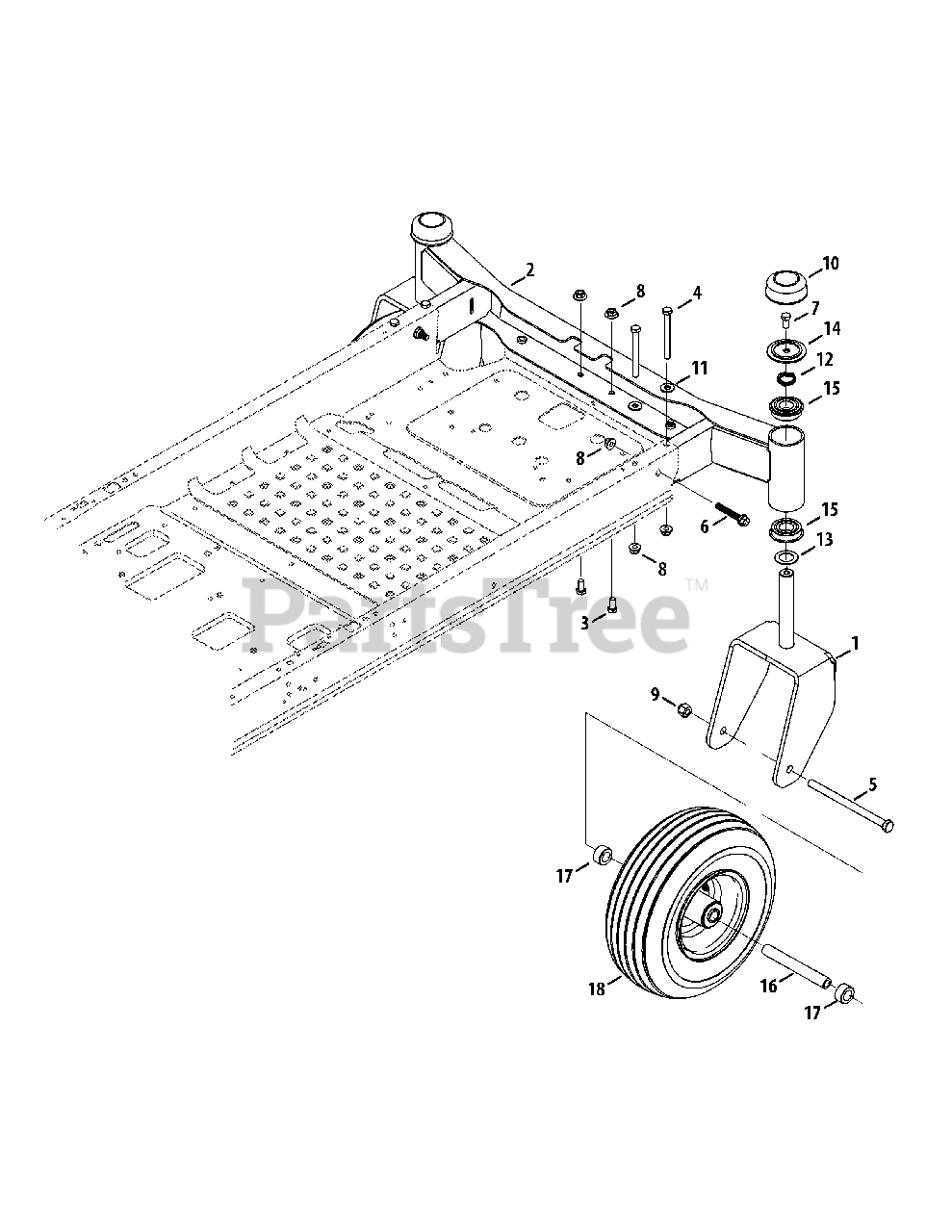

Front Axle Parts Diagram

  • Title
1

Cub Cadet 603-05080-0637

Caster Wheel Bracket - Black
(Superseded to 603-05080A-0637)

$135.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05134-0637

Front Axle - Black

$469.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

4

Cub Cadet 710-04576

Hex Cap Screw, 3/8-16 x 3.75

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04652

Hex Cap Screw, 1/2-20 x 7.25
(Superseded to 710-11661)

$6.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-06093

Hex Flange Screw, 3/8-16 x 2.00

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3119

Hex Cap Screw, 3/8-16 x .750

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 18

0

9

Cub Cadet 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

$5.99

$

In Stock, Qty 5

0

11

Cub Cadet 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-05033A

Wave Washer, 1.25 x 1.00 x .300

$4.99

$

In Stock, Qty 19

0

13

Cub Cadet 736-0745

Flat Washer, 1.010 x 1.56 x .060

$12.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 738-05091

Shoulder Spacer, 2.50 x .200

$8.49

$

In Stock, only 2 left!

0

15

Cub Cadet 941-05022A

Ball Bearing

$20.99

$

In Stock, only 1 left!

0

16

Cub Cadet 750-04775A

Spacer, .51 x .75 x 5.825

$28.99

$

In Stock, Qty 20+

0

17

Cub Cadet 750-05572

Spacer, .76 x 1.23 x .63

$6.99

$

In Stock, only 1 left!

0

18

Cub Cadet 634-04629

Wheel Assembly, 13 x 5 x 6

Variations

Cub Cadet 634-04629-0499

Caster Wheel Assembly - CUB BEIGE (0499)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04629-0637

WHEEL ASM-CASTER - POWDER BLACK (0637)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04629-0662

WHEEL ASM-CASTER - OYSTER GRAY (0662)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04629-4028

Caster Wheel Assembly - SEARS YELLOW (4028)

$177.99

$

Usually ships in 3-6 days

0

$144.99

$

Usually ships in 3-6 days

0
