Z-Force L48 (17BSDALB010) - Cub Cadet 48" Z-Force Zero-Turn Mower (2015) Frame Parts Diagram

48" Z-Force Zero-Turn Mower

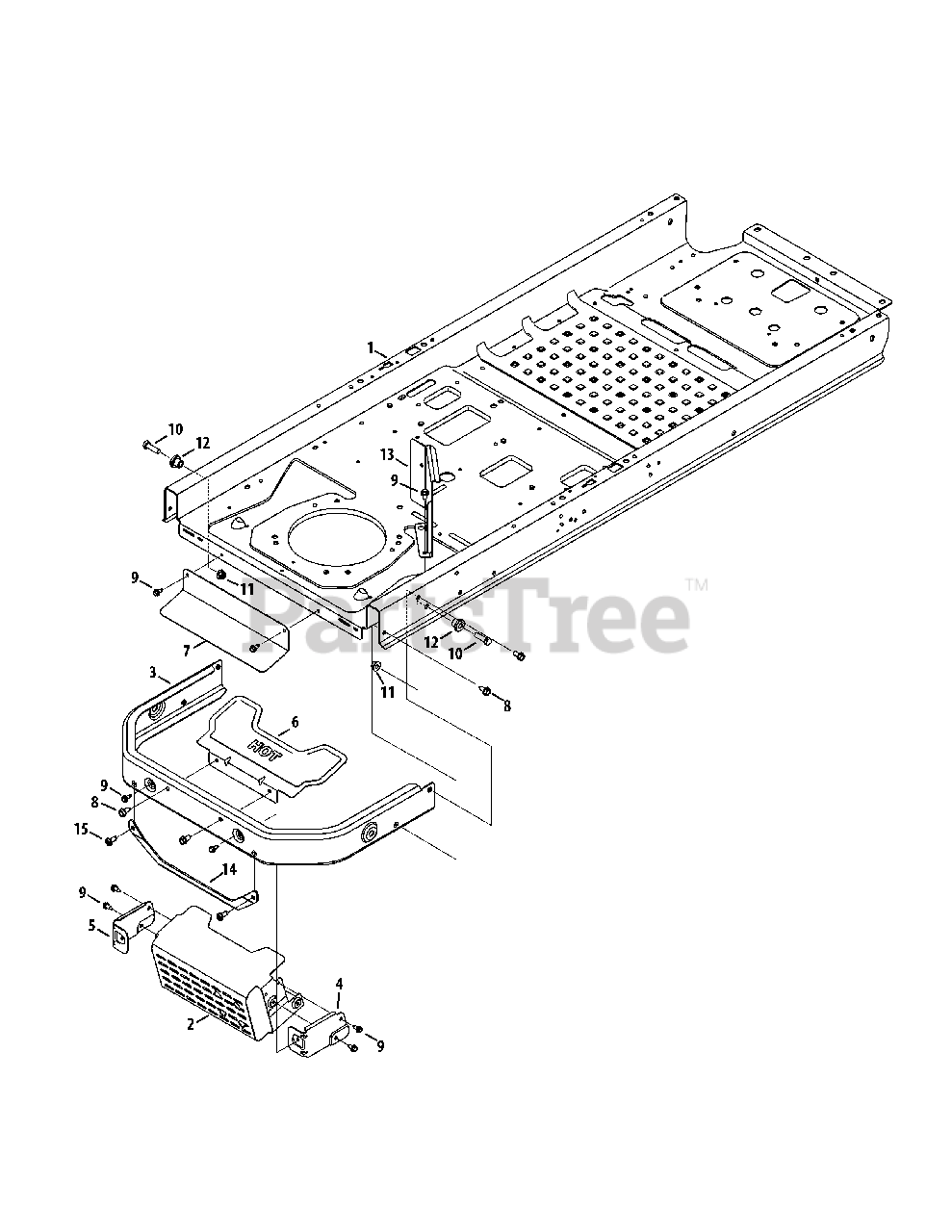

Frame Parts Diagram

  • Title

1

Cub Cadet 603-04982-0637

Frame Assembly
(Superseded to 603-05300-0637)

$1809.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05156A-0637

Muffler Shield Assembly

$94.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08558B-0637

Rear Bumper

$51.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08671A-0637

Muffler Mounting Shield Bracket, RH
(Superseded to 703-08671B-0637)

$8.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08695-0637

Muffler Mounting Shield Bracket, LH
(Superseded to 703-08695A-0637)

$8.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09083-0637

Muffler Shield

$31.99

$

In Stock, only 1 left!

0

7

Cub Cadet 703-09195

Lower Heat Shield

$18.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet 703-09611

Engine Heat Shield
(Superseded to 703-09611A)

$22.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-09884-0637

Rear Muffler Shield Bracket

$26.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-06096

Screw, Self-Tapping, 5/16-18, 0.750

$6.99

$

Usually ships in 3-6 days

0
