Z-Force 60 (53AA5DBJ709) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kawasaki Mower Spindle Assembly 60 inch Parts Diagram

60" Z-Force Zero-Turn Mower, Kawasaki

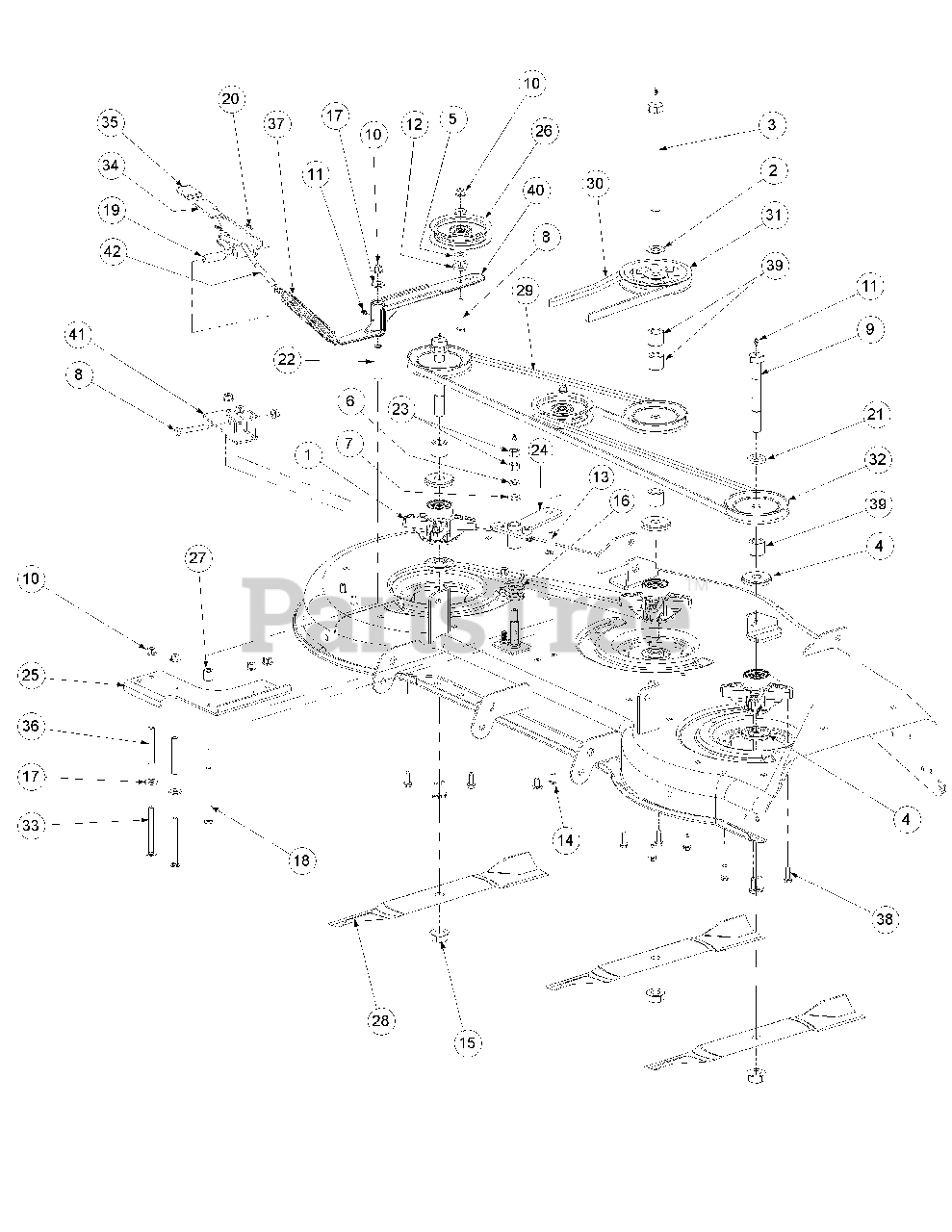

Mower Spindle Assembly 60 inch Parts Diagram

  • Title

1

Cub Cadet 918-04426

Spindle Assembly

Note: Replaces 618-04394

$112.99

$

In Stock, Qty 20+

0

1

Cub Cadet 941-04091

Cup, Bearing
(Superseded to 941-04299)

Note: Not Shown

$6.99

$

In Stock, Qty 20+

0

1

Cub Cadet 941-04089

Bearing, Cone
(Superseded to 941-04298)

Note: Not Shown

$16.99

$

In Stock, Qty 20+

0

1

Cub Cadet 750-04409

Spacer, Bearing .78 x 1.0 x 1.0425

Note: Not Shown

$20.99

$

In Stock, only 1 left!

0

1

Cub Cadet 921-3018A

Seal, Oil 1.25 x 1.874 x .25

Note: Not Shown

$8.49

$

In Stock, Qty 20+

0

1

Cub Cadet 937-3000

Fitting, Lube

Note: If Equipped Not Shown

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0188

Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 02001986

Hex Cap Screw, 3/4-16 x 8.50

$132.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 748-3065A

Spindle Spacer

$13.99

$

In Stock, Qty 18

0

5

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$11.99

$

In Stock, Qty 5

0

6

Cub Cadet 00010734

Lock Washer, 1/2
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 5

0

7

Cub Cadet 00010958

Washer, 1/2 Zinc

$

$

Not available

8

Cub Cadet 00011861

Hex Cap Screw, 3/8-16 x 2.50
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 16

0

9

Cub Cadet 02001987

Hex Cap Screw, 3/4-16 x 6.00
(Superseded to 710-05173A)

$28.99

$

In Stock, only 4 left!

0

10

Cub Cadet 00022560

Hex Nut, 3/8-16, Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

12

Cub Cadet 01003269

Washer, .4375 ID x 1.75 OD x .25
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

13

Cub Cadet 00030276

Hex Carriage Screw, 3/8-16, 1.50
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01000372

Carriage Bolt, 3/8-16 x .75
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 01000380

Hex Flange Nut, 3/4-16
(Superseded to 712-3078)

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 01000387

Torsion Idler Spring
(Superseded to 932-3009)

$24.99

$

In Stock, only 4 left!

0

17

Cub Cadet 01000723

Flat Washer, .406 ID, 1.0 OD, .105
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 01002539

Hex Cap Screw, 3/8-16 x 4-1/2
(Superseded to 710-0944)

$10.99

$

In Stock, Qty 14

0

19

Cub Cadet 01002751

Spacer, .39 x .63 x 1.75

$13.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01002771

Cotter Pin, .072 x 1.12 Lg
(Superseded to 914-0104)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 01003123

Spacer .812 ID x .218
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

22

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, only 1 left!

0

23

Cub Cadet 01003607

Hex Nut, 1/2-20
(Superseded to 912-3066)

$6.99

$

In Stock, only 1 left!

0

24

Cub Cadet 01004821

Idler Arm Assembly

$

$

Not available

24

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

$16.99

$

In Stock, only 2 left!

0

25

Cub Cadet 02001534

Idler Arm Mounting Bracket

$

$

Not available

26

Cub Cadet 01004101

Idler Pulley, 4.06 OD
(Superseded to 02004447)

$57.99

$

In Stock, Qty 20+

0

27

Cub Cadet 01010173

Spacer, .39 ID x .875 OD x 1.00

$

$

Not available

28

Cub Cadet 01004719

Hi-Lift Blade, 20.5, .756 ID
(Superseded to 01004719-0637)

Variations

Cub Cadet 01004719-0637

Mower Blade, 20.5" Lg Hi-Lift - POWDER BLACK (0637)

$41.99

$

In Stock, Qty 15

0

$41.99

$

In Stock, Qty 15

0

29

Cub Cadet 01004752

V Belt, A Section x 120.0
(Superseded to 01004752P)

$93.99

$

In Stock, only 4 left!

0

30

Cub Cadet 01005012

V Belt, B Section x 84.2
(Superseded to 01005012P)

$97.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 01005203

V-Pulley, 5.774 OD

$132.99

$

In Stock, Qty 5

0

32

Cub Cadet 01006535

Pulley, A Sect x 4.90
(Superseded to 956-1209)

$60.99

$

In Stock, only 1 left!

0

33

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4.00
(Superseded to 710-05384)

$5.49

$

In Stock, Qty 19

0

34

Cub Cadet 02001532

Handle Tension Weldment
(Superseded to 01008247-0637)

$81.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01008270

Handle Tension Grip

$26.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 01009808

Spacer, .385 x .50 x 3.045

$11.99

$

In Stock, Qty 9

0

37

Cub Cadet 02000726

Extension Spring, 1.0 x OD x 5.00

$

$

Not available

38

Cub Cadet 02000762

Self Tapping Screw 5/16-18 x 1.00
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 02000776

Spacer, .78 x 1.25 x 1.0425

$

$

Not available

40

Cub Cadet 02001855

Idler Arm Assembly, Top

$118.99

$

In Stock, only 3 left!

0

41

Cub Cadet 02001536

Idler Tension Mounting Bracket

$

$

Not available

42

Cub Cadet 02001574

Spring Tension Rod

$37.99

$

Usually ships in 3-6 days

0
