Z-Force 60 (53AA5DBJ709) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kawasaki Mower Deck 60 inch Parts Diagram

60" Z-Force Zero-Turn Mower, Kawasaki

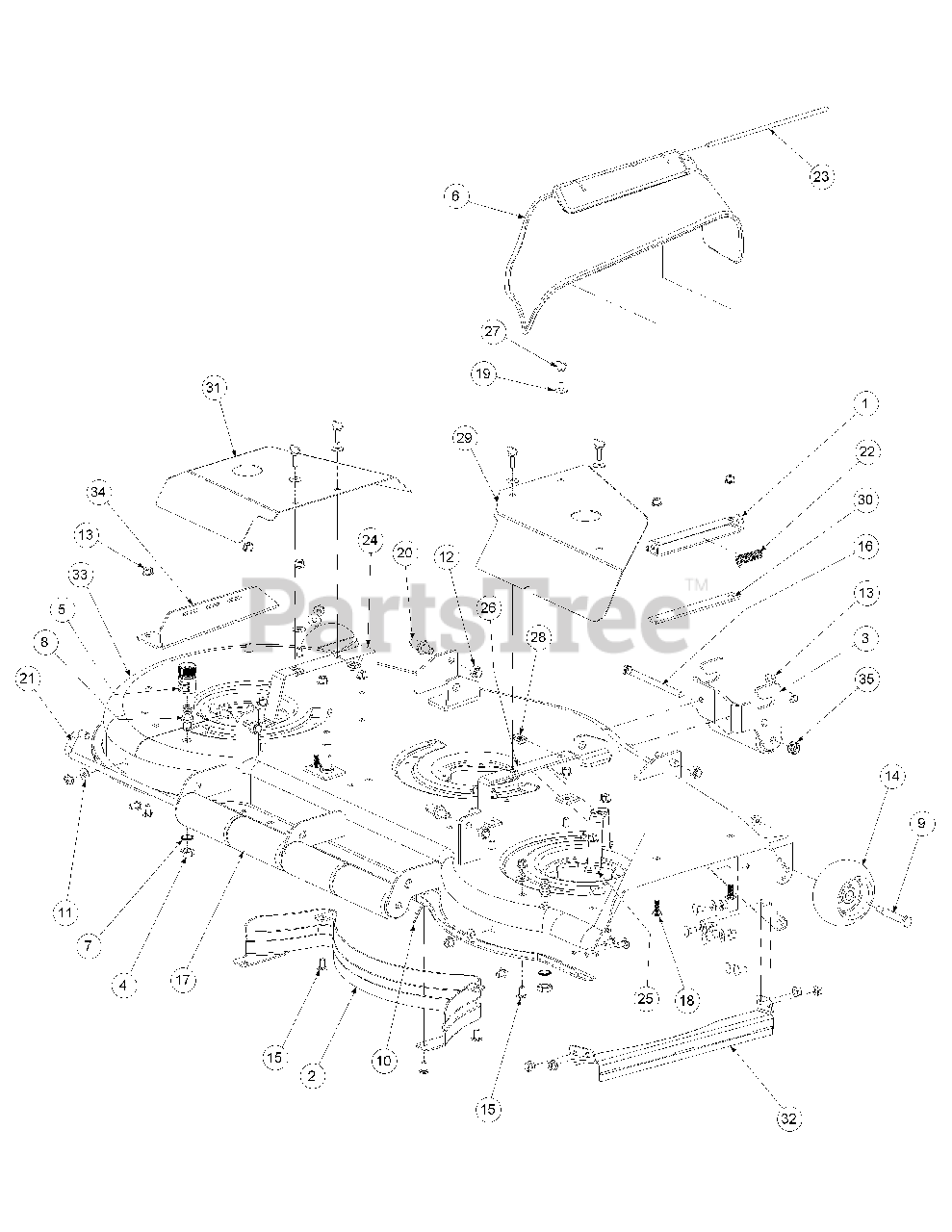

Mower Deck 60 inch Parts Diagram

  • Title

1

Cub Cadet 01004857

Chute Deflector Bracket

$

$

Not available

2

Cub Cadet 01004856

Deck Baffle
(Superseded to 703-3248-0637)

$157.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 01004852

Front Roller Bracket
(Superseded to 703-3043A-4021)

$69.99

$

In Stock, only 1 left!

0

4

Cub Cadet 712-0641

Hex Nut, M16-1.5

$6.49

$

In Stock, Qty 7

0

5

Cub Cadet 721-04041

Water Nozzle Adaptor
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

6

Cub Cadet 731-3257

Chute Deflector

$83.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 736-0760

Lock Washer, 17 x 23.8 x 1.9

$4.49

$

In Stock, Qty 7

0

8

Cub Cadet 737-04003B

Nozzle, Deck Water
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

9

Cub Cadet 738-3056

Shoulder Screw .498 x 1.53
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

10

Cub Cadet 00003107

Cotter Pin, .125 Dia. x 1.0
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

12

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

13

Cub Cadet 00022560

Hex Nut, 3/8-16, Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 703-1890

Complete Wheel, 5.00 Dia
(Superseded to 703-1890A)

$39.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01000372

Carriage Bolt 3/8-16 x .75
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 02002154

Hex Cap Screw, 1/2-20 x 7.25

$

$

Not available

17

Cub Cadet 01000385

Front Roller
(Superseded to 731-3005)

$28.99

$

In Stock, Qty 20+

0

18

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.00

$5.49

$

In Stock, Qty 7

0

19

Cub Cadet 01000960

Washer, .325 x .930 x .045
(Superseded to 936-0425)

$

$

Not available

20

Cub Cadet 01001745

Pin, 5/8 Dia x 1.2 Lg
(Superseded to 711-05604)

$11.99

$

In Stock, Qty 14

0

21

Cub Cadet 01002635

Roller Pin
(Superseded to 711-05664)

$22.99

$

In Stock, only 1 left!

0

22

Cub Cadet 01003253

Torsion Spring
(Superseded to 732-04797)

$11.99

$

In Stock, only 4 left!

0

23

Cub Cadet 01003254

Chute Deflector Rod
(Superseded to 747-3384)

$27.99

$

In Stock, only 1 left!

0

24

Cub Cadet 01004858

Support Bracket Belt Cover Left Hand

$

$

Not available

25

Cub Cadet 01004859

Support Bracket Belt Cover Right Hand

$

$

Not available

26

Cub Cadet 01004860

Support Bracket Belt Cover Center

$

$

Not available

27

Cub Cadet 01003560

Thumb Screw, 5/16-18 x 1.0 Lg.
(Superseded to 710-3232)

$9.99

$

In Stock, only 2 left!

0

28

Cub Cadet 01003563

U Nut, 5/16-18
(Superseded to 926-0211)

$4.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 02001538

Belt Cover 60 Right Hand

$

$

Not available

30

Cub Cadet 01004864

Strip Spacer, 0.1875 Thick
(Superseded to 01004327-4021)

$

$

Not available

31

Cub Cadet 02001539

Belt Cover 60 Left Hand

$

$

Not available

32

Cub Cadet 01005594

Finger Guard Assembly

$

$

Not available

33

Cub Cadet 02001542

Deck Assembly 60"

$2049.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 02001543

Belt Cover Support Bracket

$

$

Not available

35

Cub Cadet 02002299

Nut, 1/2-20, Nylon Insert
(Superseded to 712-04316)

$3.99

$

Usually ships in 3-6 days

0
