Z-Force 60 (53AA5DBJ709) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kawasaki Lubrication Equipment Parts Diagram

60" Z-Force Zero-Turn Mower, Kawasaki

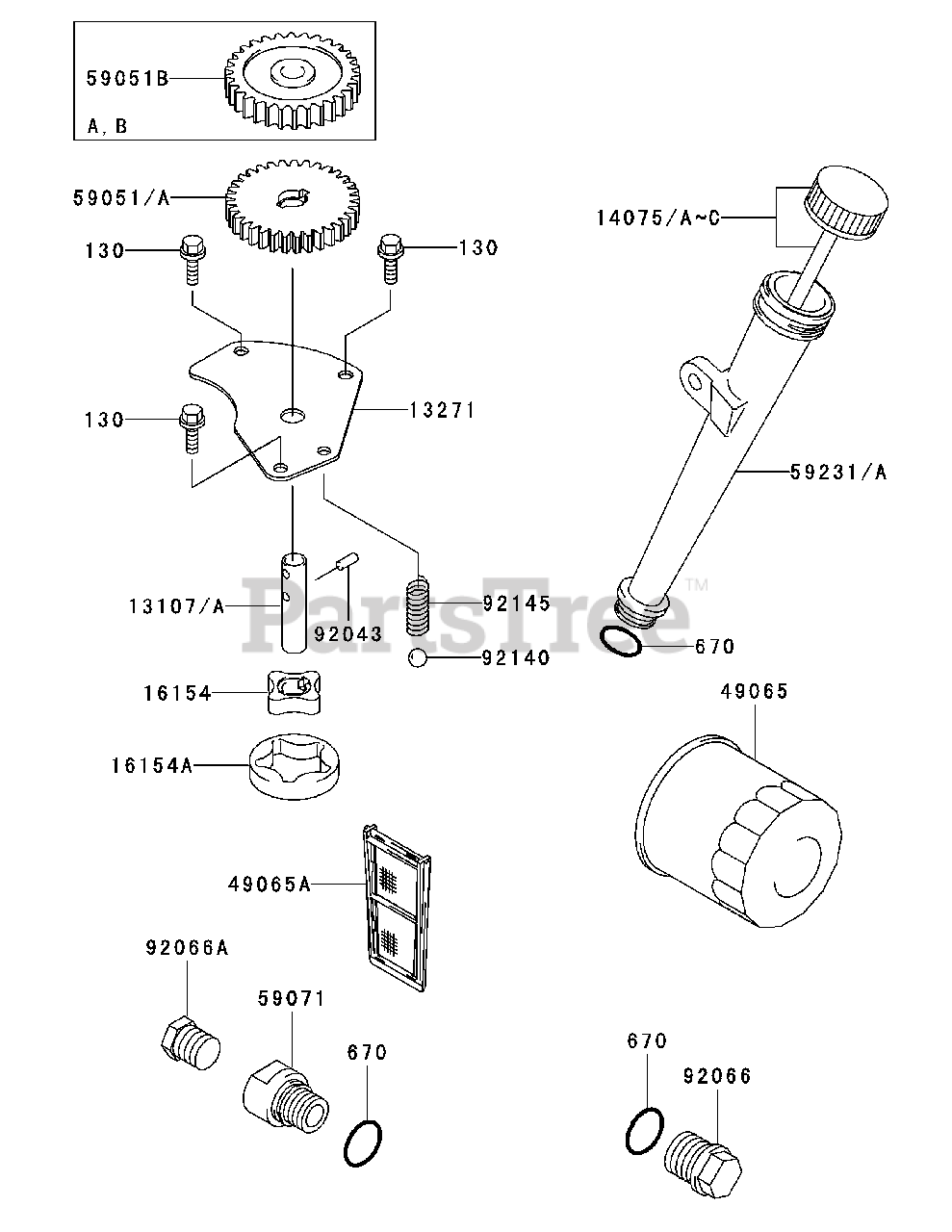

Lubrication Equipment Parts Diagram

  • Title

130

Cub Cadet KM-130B0612

BOLT-FLANGED
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

670

Cub Cadet KM-670D2016

O RING,16MM

$1.99

$

In Stock, Qty 20+

0

13271

Cub Cadet KM-13271-7005

PLATE

$3.99

$

Usually ships in 2-5 days

0

16154

Cub Cadet KM-16154-2053

ROTOR-PUMP,IN

$12.99

$

In Stock, Qty 5

0

49065

Cub Cadet KM-49065-2078

FILTER-OIL
(Superseded to KM-49065-7010)

$18.99

$

In Stock, Qty 20+

0

59071

Cub Cadet KM-59071-7004

JOINT
(Superseded to KM-59071-7023)

$8.99

$

In Stock, Qty 12

0

92043

Cub Cadet KM-92043-7003

PIN
(Superseded to KM-92042-014)

$0.99

$

In Stock, Qty 12

0

92066

Cub Cadet KM-92066-7003

PLUG
(Superseded to KM-92066-0774)

$5.49

$

In Stock, Qty 8

0

92140

Cub Cadet KM-92140-7003

BALL

$1.49

$

In Stock, Qty 11

0

92145

Cub Cadet KM-92145-7002

SPRING

$

$

Not available

13107A

Cub Cadet KM-13107-7009

SHAFT
(Superseded to KM-13107-0858)

$2.49

$

In Stock, only 2 left!

0

14075A

Cub Cadet KM-14075-7002

CAP-ASSY
(Superseded to KM-14075-7008)

$11.99

$

In Stock, only 1 left!

0

14075B

Cub Cadet KM-14075-7004

CAP-ASSY
(Superseded to KM-14075-7008)

$11.99

$

In Stock, only 1 left!

0

14075C

Cub Cadet KM-14075-7008

CAP-ASSY

$11.99

$

In Stock, only 1 left!

0

16154A

Cub Cadet KM-16154-2054

ROTOR-PUMP,OUT

$9.49

$

In Stock, Qty 5

0

49065A

Cub Cadet KM-49065-7003

FILTER-OIL

$3.99

$

In Stock, Qty 15

0

59051A

Cub Cadet KM-59051-7004

GEAR-SPUR
(Superseded to KM-59051-6001)

$

$

Not available

59051B

Cub Cadet KM-59051-7011

GEAR-SPUR

$65.99

$

In Stock, only 1 left!

0

59231A

Cub Cadet KM-59231-7002

FILLER
(Superseded to KM-59231-7006)

$7.49

$

In Stock, Qty 13

0

92066A

Cub Cadet KM-92066-7006

PLUG
(Superseded to KM-92066-0827)

$1.49

$

In Stock, only 3 left!

0
