Z-Force 60 (53AA5DBJ709) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kawasaki Fuel Tank Assembly Parts Diagram

60" Z-Force Zero-Turn Mower, Kawasaki

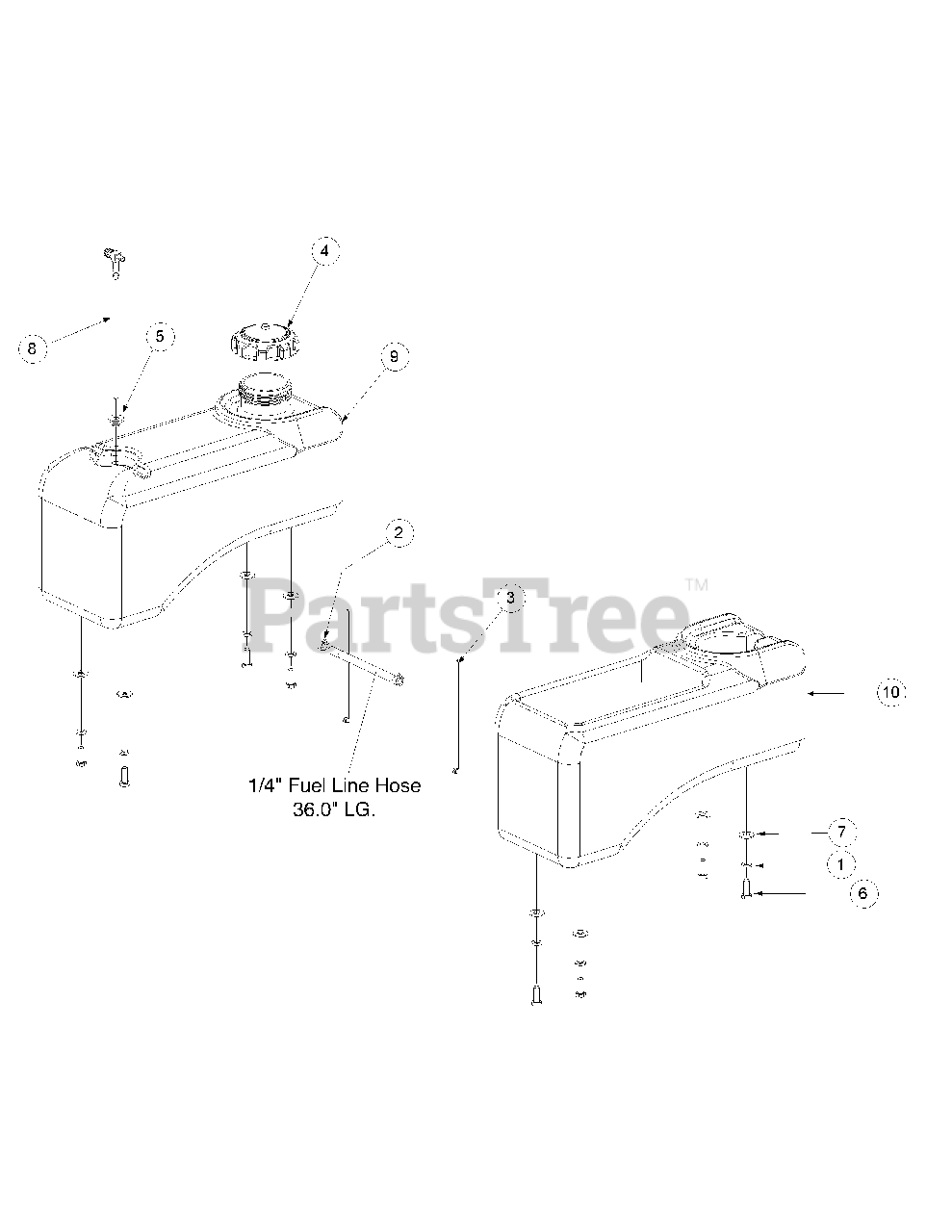

Fuel Tank Assembly Parts Diagram

  • Title
1

Cub Cadet 00012157

Lock Washer, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012235

Clamp, Union
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

3

Cub Cadet 00012470

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 01000069

Fuel Cap, 3.5
(Superseded to 951-3124E)

$36.99

$

In Stock, only 1 left!

0

5

Cub Cadet 02002253

Grommet, Fuel Tank

$4.99

$

In Stock, only 2 left!

0

6

Cub Cadet 01000368

Hex, Cap Screw, 3/8-16, .88
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

7

Cub Cadet 01000723

Flat Washer, .406 ID, 1.0 OD, .105
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 01003116

Fuel Fitting

$58.99

$

In Stock, only 4 left!

0

9

Cub Cadet 01004350

Fuel Tank

$

$

Not available

10

Cub Cadet 01008138

Utility Bin
(Superseded to 01008138P)

$198.99

$

Usually ships in 3-6 days

0

11

Hose, 1/4" Fuel Line (36 inches)

Note: Purchase locally

$

$

Not available
