Z-Force 60 (53AA5DBJ709) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kawasaki Carburetor Parts Diagram

60" Z-Force Zero-Turn Mower, Kawasaki

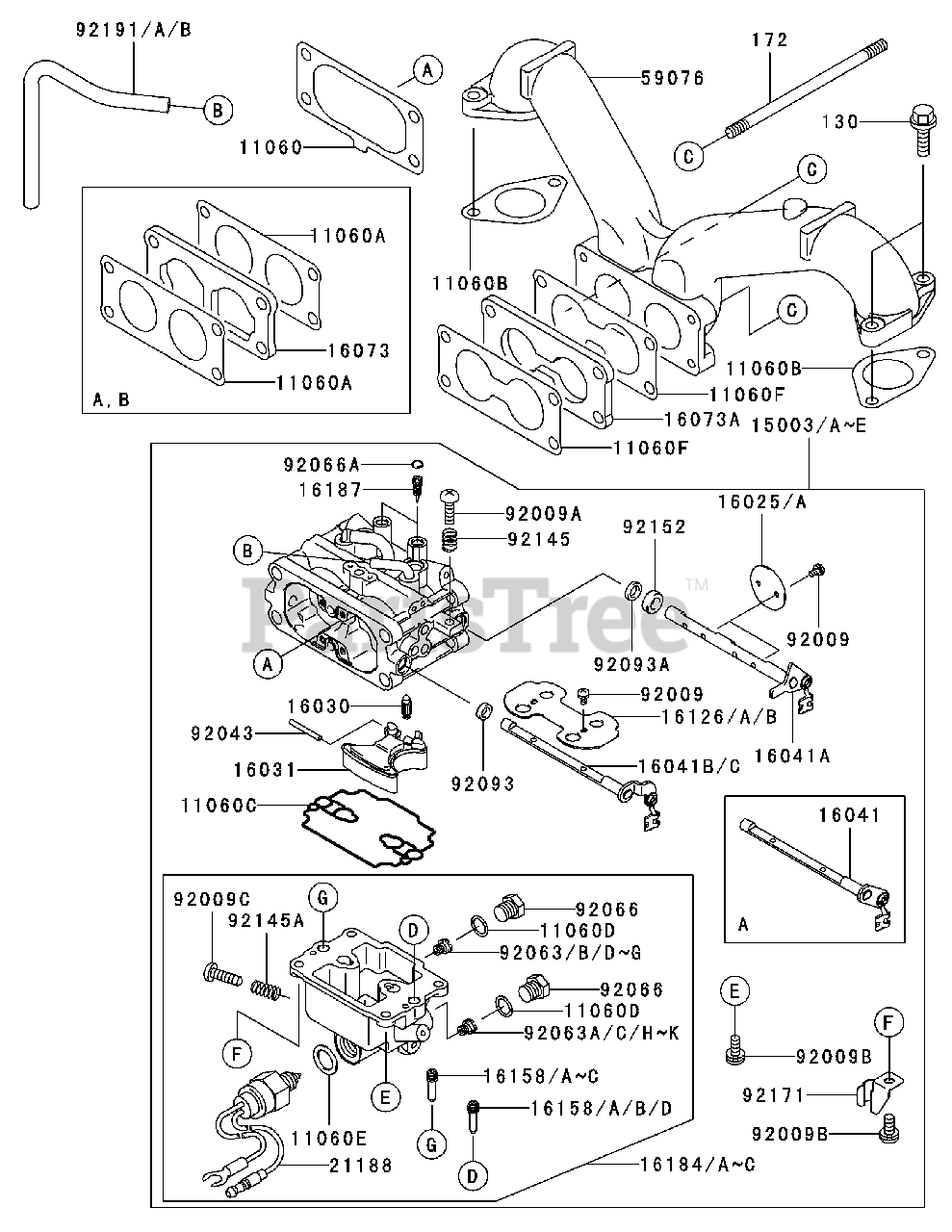

Carburetor Parts Diagram

  • Title

11060

Cub Cadet KM-11060-7009

GASKET,AIR FILTER

$2.49

$

In Stock, only 3 left!

0

11060B

Cub Cadet KM-11060-70K11

GASKET,MANIFOLD

$

$

Currently unavailable

11060C

Cub Cadet KM-11060-7018

GASKET,FLOAT CHAMBER

$1.49

$

In Stock, Qty 20+

0

11060D

Cub Cadet KM-11060-7019

GASKET,MAIN PLUG

$1.49

$

In Stock, Qty 16

0

11060E

Cub Cadet KM-11060-7020

GASKET,SOLENOID

$0.99

$

In Stock, Qty 11

0

11060F

Cub Cadet KM-11060-7024

GASKET,CARBURETOR

$11.99

$

In Stock, only 1 left!

0

15003D

Cub Cadet KM-15003-7045

CARBURETOR-ASSY
(Superseded to KM-15003-7079)

Note: Substitute part

$469.99

$

Usually ships in 2-5 days

0

15003E

Cub Cadet KM-15003-7079

CARBURETOR-ASSY

$469.99

$

Usually ships in 2-5 days

0

16025A

Cub Cadet KM-16025-7003

VALVE-THROTTLE

$25.99

$

Usually ships in 2-5 days

0

16030

Cub Cadet KM-16030-7002

VALVE-FLOAT

$18.99

$

In Stock, only 1 left!

0

16031

Cub Cadet KM-16031-7001

FLOAT

$29.99

$

In Stock, only 1 left!

0

16041A

Cub Cadet KM-16041-7004

SHAFT-CARBURETOR

$

$

Not available

16041B

Cub Cadet KM-16041-7007

SHAFT-CARBURETOR,CHOKE
(Superseded to KM-16041-7059)

$41.99

$

In Stock, only 1 left!

0

16073A

Cub Cadet KM-16073-7005

INSULATOR

$4.49

$

In Stock, Qty 5

0

16126

Cub Cadet KM-16126-7002

VALVE,CHOKE

$

$

Not available

16126B

Cub Cadet KM-16126-7004

VALVE,CHOKE

Note: Substitute part

$6.49

$

Usually ships in 2-5 days

0

16158C

Cub Cadet KM-16158-7006

JET-SLOW,#46

$

$

Not available

16158D

Cub Cadet KM-16158-7007

JET-SLOW,#44

$

$

Not available

16184C

Cub Cadet KM-16184-7006

CHAMBER-ASSY-FLOAT

$

$

Not available

16187

Cub Cadet KM-16187-7002

NEEDLE-JET

$13.99

$

In Stock, only 2 left!

0

21188

Cub Cadet KM-21188-7001

SOLENOID

$172.99

$

In Stock, only 1 left!

0

59076

Cub Cadet KM-59076-7002

MANIFOLD-INTAKE
(Superseded to KM-59076-0026)

$125.99

$

In Stock, only 1 left!

0

92009

Cub Cadet KM-92009-7003

SCREW

$0.99

$

In Stock, Qty 20+

0

92009A

Cub Cadet KM-92009-7004

SCREW

$1.49

$

In Stock, only 4 left!

0

92009B

Cub Cadet KM-92009-7005

SCREW

$1.49

$

In Stock, Qty 7

0

92009C

Cub Cadet KM-92009-7006

SCREW,DRAIN

$1.49

$

In Stock, only 3 left!

0

92043

Cub Cadet KM-92043-7004

PIN,FLOAT

$6.99

$

In Stock, only 3 left!

0

92063B

Cub Cadet KM-92063-7010

JET-MAIN,#136

$

$

Not available

92063C

Cub Cadet KM-92063-7011

JET-MAIN,#140

$

$

Not available

92063E

Cub Cadet KM-92063-7017

JET-MAIN,#133

$19.99

$

Usually ships in 2-5 days

0

92063G

Cub Cadet KM-92063-7018

JET-MAIN,#130

$

$

Not available

92063I

Cub Cadet KM-92063-7019

JET-MAIN,#139

$24.99

$

Usually ships in 2-5 days

0

92063K

Cub Cadet KM-92063-7020

JET-MAIN,#134

$

$

Not available

92066

Cub Cadet KM-92066-7008

PLUG,MAIN JET

$4.49

$

In Stock, only 1 left!

0

92066A

Cub Cadet KM-92066-7009

PLUG,EXPANSION

$7.99

$

In Stock, Qty 12

0

92093

Cub Cadet KM-92093-7001

SEAL,D=5.9

$2.49

$

In Stock, Qty 12

0

92093A

Cub Cadet KM-92093-7002

SEAL,D=6.9

$2.49

$

In Stock, Qty 7

0

92145

Cub Cadet KM-92145-7010

SPRING

$2.49

$

Usually ships in 2-5 days

0

92145A

Cub Cadet KM-92145-7011

SPRING

$2.49

$

Usually ships in 2-5 days

0

92152

Cub Cadet KM-92152-7001

COLLAR

$11.99

$

Usually ships in 2-5 days

0

92171

Cub Cadet KM-92171-7001

CLAMP

$

$

Not available

92191B

Cub Cadet KM-92191-7023

TUBE,4.76X7.94X215

$

$

Not available

130

Cub Cadet KM-130B0620

BOLT-FLANGED

$

$

Not available

172

Cub Cadet KM-172G06105

BOLT-STUD
(Superseded to KM-172BA06105)

$4.49

$

In Stock, only 1 left!

0
