Z-Force 60 (53AA5DBJ709) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kawasaki Brake Assembly Parts Diagram

60" Z-Force Zero-Turn Mower, Kawasaki

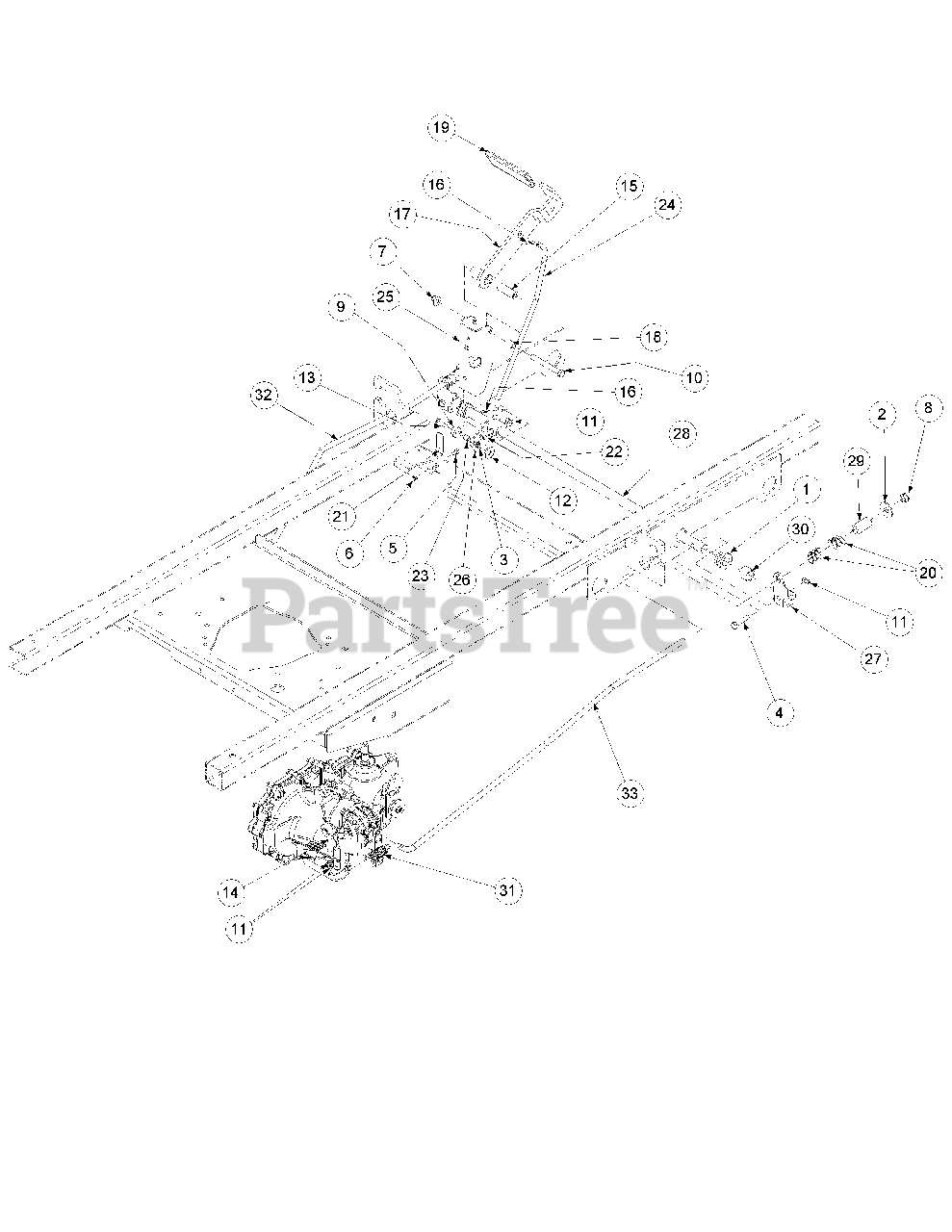

Brake Assembly Parts Diagram

  • Title

1

Cub Cadet 741-0598

Hex Flange Bearing, .752 ID
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00011459

Washer, 1/2

$5.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00012382

Hex Cap Screw, 5/16-18 x 1-1/2

$

$

Not available

5

Cub Cadet 00013669

Screw, Hex Washer, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

7

Cub Cadet 00022560

Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00027279

Nut, 7/16-14, Nylock
(Superseded to 712-0290)

$4.99

$

In Stock, Qty 11

0

9

Cub Cadet 00071691

Spacer, Control Rod

$11.99

$

In Stock, only 1 left!

0

10

Cub Cadet 01000371

Hex Cap Screw, 3/8-16 x 3-1/4
(Superseded to 710-3130)

$10.99

$

In Stock, only 2 left!

0

11

Cub Cadet 01000635

Nut, Lock, HexFlange, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 01000723

Flat Washer, .406 ID x 1.0 OD x .105
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 01000897

Screw, TT, 1/4-20, 1.0, Hex Index Washer
(Superseded to 710-0788)

$7.49

$

In Stock, only 4 left!

0

14

Cub Cadet 01001972

Hex Cap Screw, 5/16-18 x 2.75

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01002751

Spacer, .39 ID x .63 OD x 1.75

$13.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01002771

Hair Pin, INT .072 x 1.12 Lg.
(Superseded to 914-0104)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 01003595

Weldment, Brake Handle

$

$

Not available

18

Cub Cadet 01003468

Spacer, .375 x .50 x .75 Lg

$

$

Not available

19

Cub Cadet 01003716

Grip, Park Brake

$36.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01004971

Lift Handle Spring

$13.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01008042

Spring Retainer
(Superseded to 732-04200)

$10.99

$

In Stock, Qty 6

0

22

Cub Cadet 01008600

Socket Head Capscrew, 5/16-18 x 1.50
(Superseded to 710-3250)

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01008607

Spacer, Pump Release

$

$

Not available

24

Cub Cadet 01008886

Rod Brake, Connect To Handle

$40.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01008889

Park Brake Mounting Bracket

$

$

Not available

26

Cub Cadet 01009561

Brake Arm Assembly

$

$

Not available

27

Cub Cadet 01009566

Brake Arm Bracket

$

$

Not available

28

Cub Cadet 01009569

Pivot Brake Shaft

$

$

Not available

29

Cub Cadet 01009601

Hose, .5 ID x .78 OD, Low Pressure

$

$

Not available

30

Cub Cadet 01009602

Spacer, .76 ID x 1.0 OD x 3/4

$

$

Not available

31

Cub Cadet 02000401

Spring Extension, .740 OD x 2.656

$9.99

$

In Stock, only 1 left!

0

32

Cub Cadet 02001588

Brake Rod, LH

$

$

Not available

33

Cub Cadet 02001589

Brake Rod, RH

$

$

Not available
