Z-Force 60 (53AA5BBJ710) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kohler Drive Assembly Parts Diagram

60" Z-Force Zero-Turn Mower, Kohler

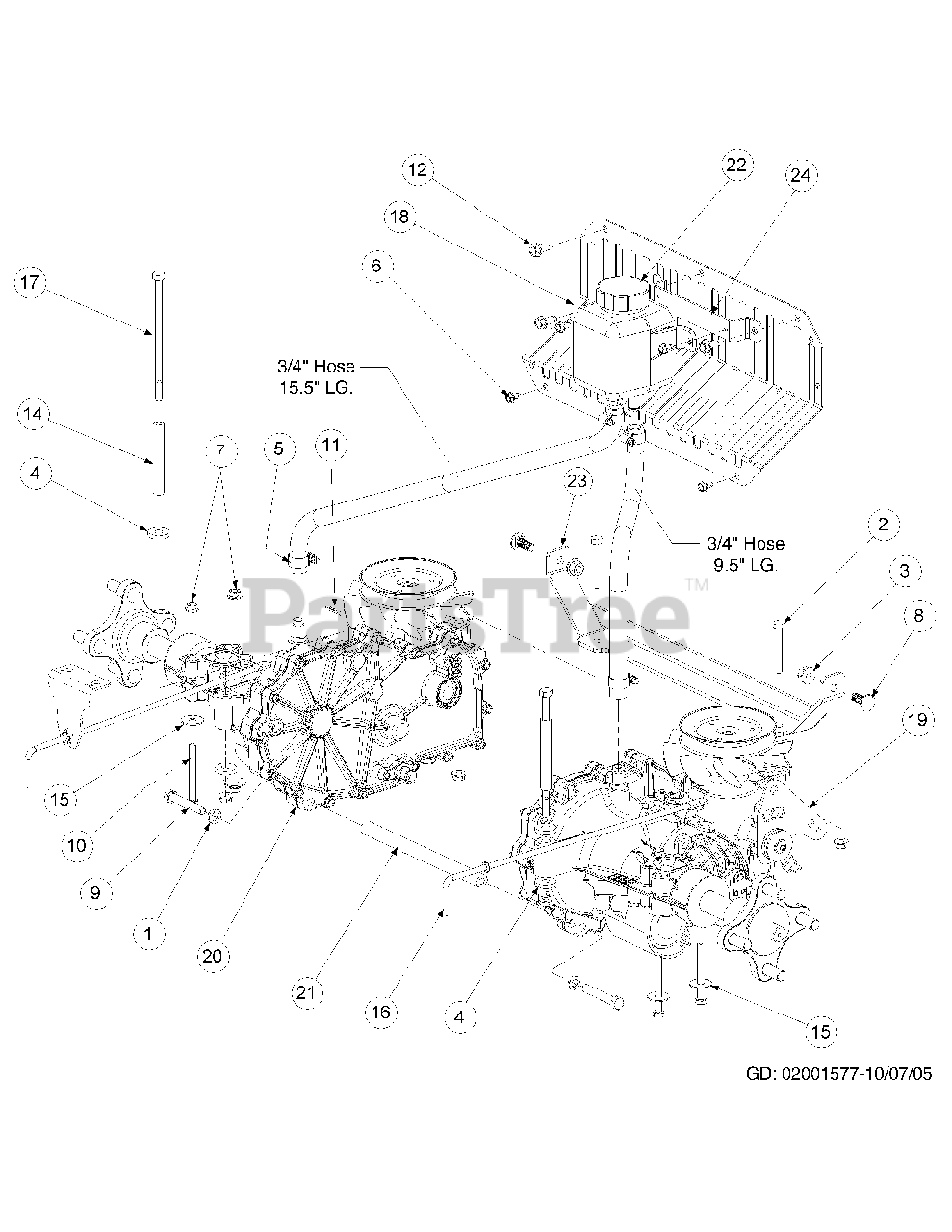

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 00012157

Lock Washer, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012747

Hex Cap Screw, 5/16-18 x 2.25

$

$

Currently unavailable

3

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 01000216

Hose Clamp

$

$

Not available

6

Cub Cadet 01000628

Screw, TT, 1/4-20 x .5, Hex Index Washer
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 01000635

Hex Flange Lock Nut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

9

Cub Cadet 01001366

Hex Cap Screw, 3/8-16 x 2.25

$

$

Not available

10

Cub Cadet 01001972

Hex Cap Screw, 5/16-18 x 2.75

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01002771

Cotter Pin, .072 x 1.12 Long
(Superseded to 914-0104)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01008620

Self Tapping Screw 5/16-18 x .750
(Superseded to 710-04484)

$3.99

$

In Stock, Qty 20+

0

13

Hose, .50 ID x .75 OD (in inches)

Note: 25 inches

$

$

Not available

14

Cub Cadet 01009872

Spacer, .370 ID x .500 OD x 3.45

$17.99

$

In Stock, only 2 left!

0

15

Cub Cadet 01009937

Washer, 5/16 x 1.06

$

$

Not available

16

Cub Cadet 02001332

Pump Rod

$23.99

$

In Stock, only 1 left!

0

17

Cub Cadet 02001556

Hex Cap Screw, 5/16-18 x 6.00
(Superseded to 710-06071)

$5.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02001559

Pump Screen

$

$

Not available

19

Cub Cadet 02001570

Trnsmission Assembly, RH includes:
(Superseded to 02002161P)

$

$

Not available

Cub Cadet 02002150

Filter
(Superseded to HG-52114P)

$32.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02001571

Transmission Assembly, LH includes:
(Superseded to 02002162P)

$

$

Not available

Cub Cadet 02002150

Filter
(Superseded to HG-52114P)

$32.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02001572

Transmission Support Tube

$

$

Not available

22

Cub Cadet 02001578

Hydraulic Tank
(Superseded to 631-04286)

$41.99

$

In Stock, only 1 left!

0

23

Cub Cadet 02001584

Transmission Brace Weldment

$

$

Not available

24

Cub Cadet 02001554

Hydraulic Tank Bracket

$

$

Not available
