Z-Force 60 (53AA5BBJ710) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kohler Control Assembly Parts Diagram

60" Z-Force Zero-Turn Mower, Kohler

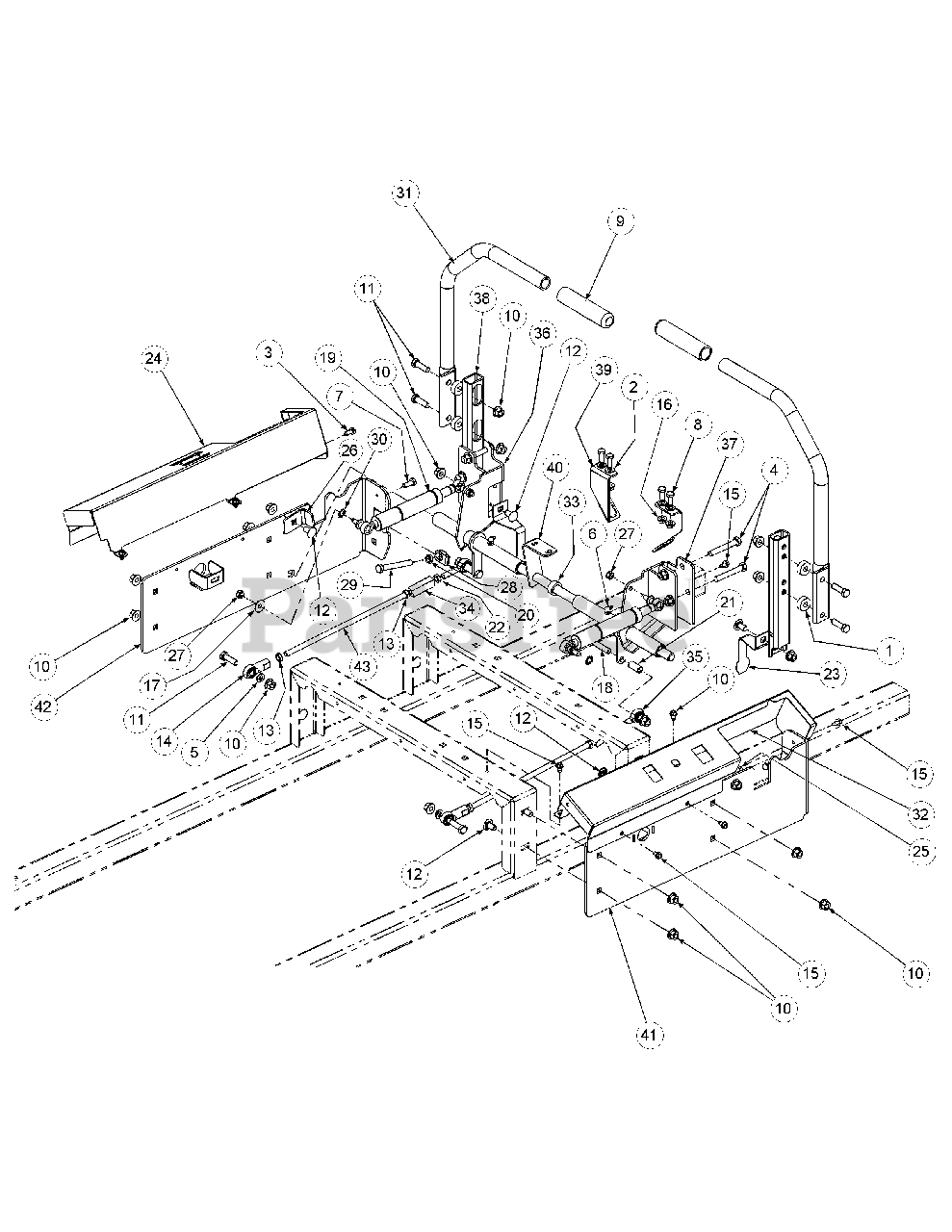

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 750-3119

Spacer, .406 ID x 1.00 OD x .38

$11.99

$

In Stock, only 4 left!

0

2

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

3

Cub Cadet 01000629

Screw, TT, 1/4-20, 0.75, Hex Index Washer
(Superseded to 710-0642)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00011861

Hex Cap Screw, 3/8-16, 2.5
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 17

0

5

Cub Cadet 00012157

Lock Washer, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00012226

Grease Fitting, 90°, 1/4-28
(Superseded to 737-3004)

$11.99

$

In Stock, Qty 6

0

7

Cub Cadet 00013092

HHCS, 5/16-18 x 1.0
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 00013406

Hex, Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 00022223

Grip, 1

$

$

Not available

10

Cub Cadet 00022560

Hex Nut, 3/8-16, Lock Flange
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01000369

Hex Cap Screw, 3/8-16, 1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 01000372

Carriage Bolt, 3/8-16 x .75
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 01000450

Hex Jam Nut, 3/8-24
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

14

Cub Cadet 01000451

B/Joint, 3/8-24, Right Hand Female
(Superseded to 723-04080)

$41.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01000628

Screw, TT, 1/4-20, 0.5, Hex Index Washer
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 01000635

Nut, Lock, HexFlange, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 01000960

Belle Washer, .325 x .930 x .045
(Superseded to 936-0425)

$

$

Not available

18

Cub Cadet 01001366

Hex Cap Screw, 3/8-16 x 2.25

$

$

Not available

19

Cub Cadet 01001727

Cylinder Return to Neutral

$265.99

$

In Stock, Qty 7

0

20

Cub Cadet 01002511

Nut, 3/8-16, Jam

$5.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01002772

Spacer, .375 x .50 x 1.02
(Superseded to 750-0434)

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01002986

Nut, 3/8-24, Jam, LH Third

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01003011

Lever, Safety Switch

$37.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01004889

Control Panel, LH
(Superseded to 01003099-4021)

$

$

Not available

25

Cub Cadet 02002017

Stop, RH

$

$

Not available

26

Cub Cadet 02002015

Stop, LH

$

$

Not available

27

Cub Cadet 01003561

Nut, Hex, Center Lock, M8 x 1.2

$

$

Not available

28

Cub Cadet 01003947

U-Nut, 3/8-16 x .75

$7.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 01004127

HHCS, 3/8-16, 3.00
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 11

0

30

Cub Cadet 01005851

External Lock Washer
(Superseded to 736-0148)

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 01007359

Lapbar Handle, One Position

$

$

Not available

32

Cub Cadet 01004890

Control Panel, RH
(Superseded to 01006343-4021)

$111.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 01006350

Shaft Collar, .625 ID, 1.00 OD, .438 Lg

$24.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 01007734

Turnbuckle

$31.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01008367

B/Joint, 3/8-24, Left Hand Female

$46.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 01009552

Hub Assy, Control LH Bearing

$

$

Not available

36

Cub Cadet 01004265

Bearings

$20.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 01009553

Hub Assy, Control RH Bearing

$

$

Not available

37

Cub Cadet 01004265

Bearings

$20.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 01010176

Mounting Handle

$

$

Not available

39

Cub Cadet 02001957

Switch Mounting Bracket, Lapbar

$

$

Not available

40

Cub Cadet 02000175

Shaft Control Brake Steering

$

$

Not available

41

Cub Cadet 02001952

Side Panel, Control, Right

$

$

Not available

42

Cub Cadet 02001955

Side Panel, Control, Left

$

$

Not available

43

Cub Cadet 02001573

Rod Connector, 3/8-24 x 11.00 Long

$20.99

$

Usually ships in 3-6 days

0
