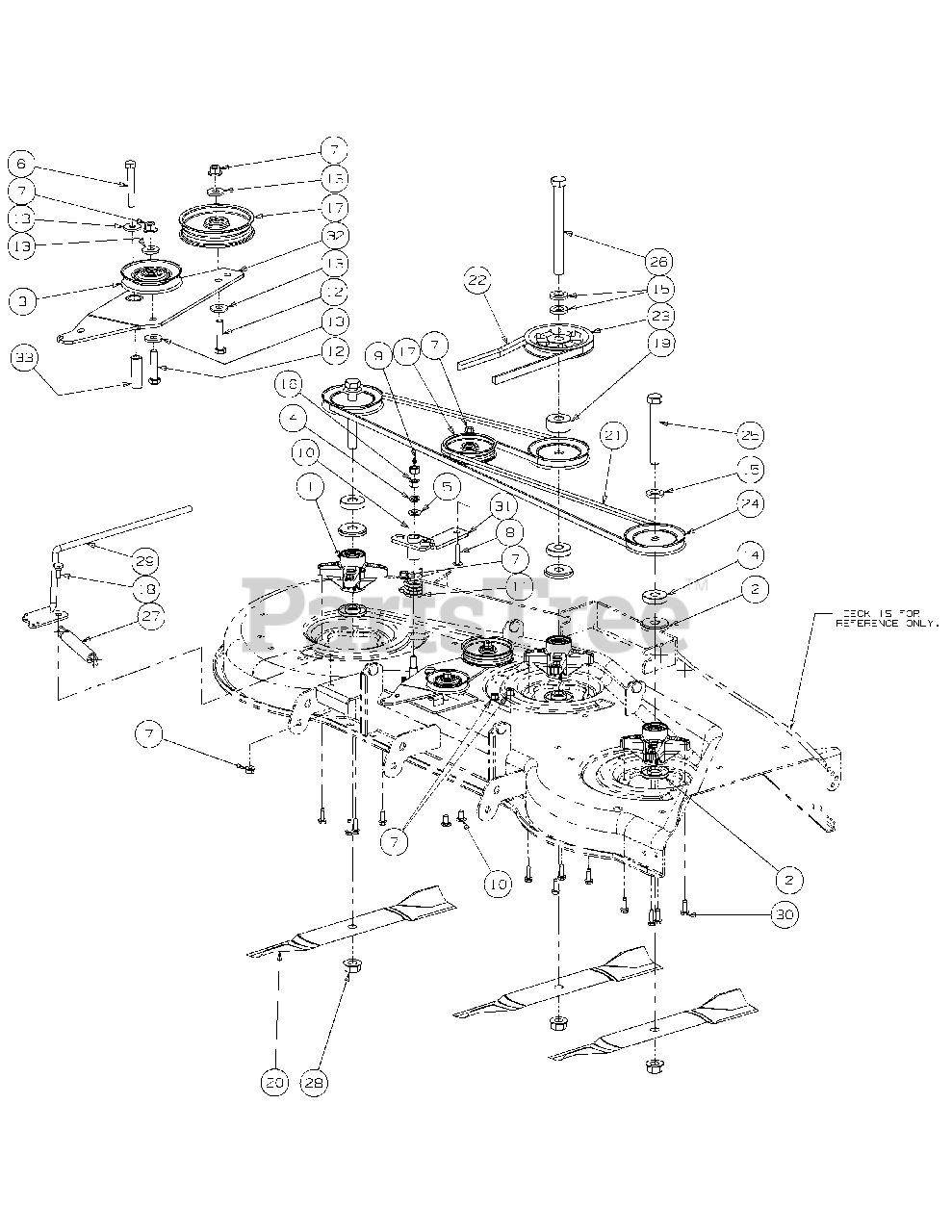

Z-Force 60 (17AI3AGJ710) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kawasaki Mower Spindle Assembly 60 Parts Diagram

60" Z-Force Zero-Turn Mower, Kawasaki

Mower Spindle Assembly 60 Parts Diagram

  • Title

1

Cub Cadet 918-04426

Spindle Assembly

$112.99

$

In Stock, Qty 20+

0

1

Cub Cadet 721-3018A

Seal, Oil
(Superseded to 921-3018A)

Note: (Not shown)

$8.49

$

In Stock, Qty 20+

0

1

Cub Cadet 741-04089

Bearing, Cone
(Superseded to 941-04298)

Note: (Not shown)

$16.99

$

In Stock, Qty 18

0

1

Cub Cadet 741-04091

Bearing, Cup
(Superseded to 941-04299)

Note: (Not shown)

$6.99

$

In Stock, Qty 20+

0

1

Cub Cadet 750-04409

Spacer, Bearing

Note: (Not shown)

$20.99

$

In Stock, only 1 left!

0

2

Cub Cadet 748-3065A

Spindle Spacer

$13.99

$

In Stock, Qty 14

0

3

Cub Cadet 756-0399

V-Pulley, 3.50 OD
(Superseded to 956-0399)

$50.99

$

In Stock, only 2 left!

0

4

Cub Cadet 00010734

Lock Washer, 1/2
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

5

Cub Cadet 00010958

Washer, 1/2 Zinc

$

$

Not available

6

Cub Cadet 00011861

Hex Cap Screw, 3/8-16 x 2.50
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 17

0

7

Cub Cadet 00022560

Hex Nut, 3/8-16, Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00030276

Hex Carriage Screw, 3/8-16, 1.50
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

10

Cub Cadet 01000372

Carriage Bolt 3/8-16 x .75
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 932-3009

Torsion Idler Spring

Note: (replaces 01000387)

$24.99

$

In Stock, only 4 left!

0

12

Cub Cadet 01000512

Hex Cap Screw, 3/8-16 x 1.750
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 01000723

Flat Washer, .406 ID, 1.0 OD, .105
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 01002564

Spacer, .76 ID x 2.00 OD x .477

$20.99

$

In Stock, only 2 left!

0

15

Cub Cadet 01003123

Spacer .812 ID x .218
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 01003607

Hex Nut, 1/2-20
(Superseded to 912-3066)

$6.99

$

In Stock, only 1 left!

0

17

Cub Cadet 02005077

Flat Pulley

Note: (replaces 01004081)

$35.99

$

In Stock, Qty 20+

0

18

Cub Cadet 01004118

Shoulder Screw, .50x.27 Lg., 3/8-16
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

19

Cub Cadet 01004415

Spacer, .760 ID x 2.000 OD x 1.1

$40.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01004719-0637

Hi-Lift Blade, 20.5, .756 ID

$41.99

$

In Stock, Qty 15

0

21

Cub Cadet 01004752

V Belt, A Section x 120.0
(Superseded to 01004752P)

$93.99

$

In Stock, only 4 left!

0

22

Cub Cadet 01005011

V Belt, B Section x 83.2
(Superseded to 01005011P)

$96.99

$

In Stock, only 1 left!

0

23

Cub Cadet 01005203

V-Pulley, 5.774 OD

$132.99

$

In Stock, Qty 5

0

24

Cub Cadet 956-1209

Pulley, A Sect x 4.90

Note: (replaces 01006535)

$60.99

$

In Stock, only 3 left!

0

25

Cub Cadet 01006590

Spindle Bolt 3/4-16 x 5.50

$

$

Not available

26

Cub Cadet 01008542

Hex Cap Screw, 3/4-16, 7.50

$28.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01009635

Extension Spring, .98 OD x 5.00

$19.99

$

In Stock, only 1 left!

0

28

Cub Cadet 02000402

Flange Hex Nut, 3/4-16

$12.99

$

In Stock, only 3 left!

0

29

Cub Cadet 02000416

Spring Tension Rod Assembly

$

$

Not available

30

Cub Cadet 02000762

Self Tapping Screw 5/16-18 x 1.00
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 02003571

Idler Arm Assembly, Deck Spindle includes:

$

$

Not available

31

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (Not shown)

$16.99

$

In Stock, Qty 18

0

32

Cub Cadet 02003795

Idler Arm Assembly, Double, includes:

Note: (Note: Handle has been added to the part for other applications. Not shown in image.)

$

$

Not available

32

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (Not shown)

$16.99

$

In Stock, Qty 18

0

33

Cub Cadet 02003640

Spacer, .39 ID x .625 OD x 1.875

$6.99

$

In Stock, Qty 10
