Z-Force 60 (17AI3AGJ709) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kawasaki Front Caster & Tire Assembly 60 inch Parts Diagram

60" Z-Force Zero-Turn Mower, Kawasaki

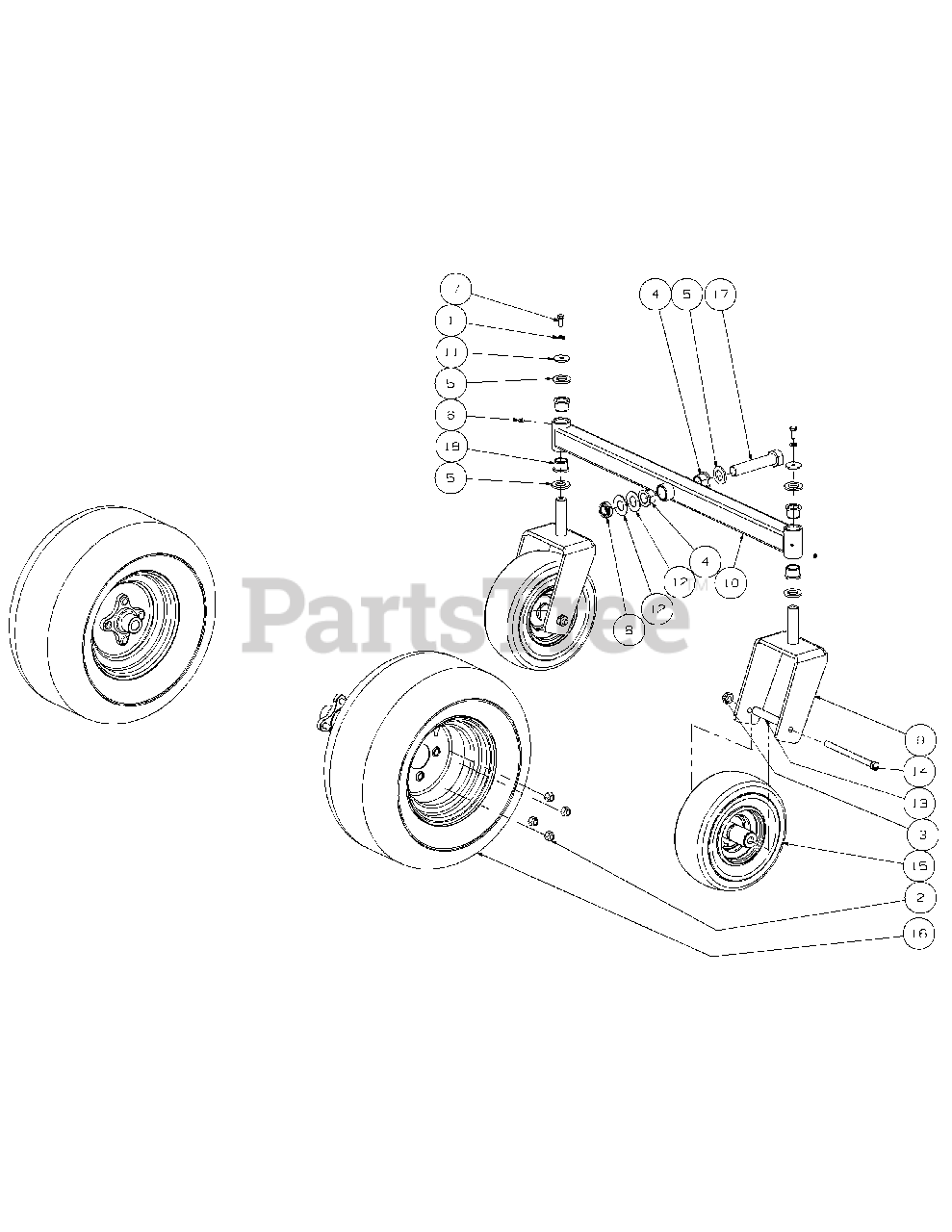

Front Caster & Tire Assembly 60 inch Parts Diagram

  • Title
1

Cub Cadet 00012157

Lock Washer, 3/8 Zinc
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012187

Lug Nut, 1/2-20
(Superseded to 712-04311)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 02002299

Lock Nut, Nylon insert, 1/2-20
(Superseded to 712-04316)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 02003599

Flange Bearing, 1.001 ID
(Superseded to 741-04488)

$9.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00023822

Washer Special
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

6

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet 01000368

Hex Cap Screw, 3/8-16 x .88
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

8

Cub Cadet 01000678

Nut Jam, 1.0-14, Nylon Insert
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet 01007364

Castor Wheel Mounting Bracket
(Superseded to 01006207-0637)

$138.99

$

In Stock, only 1 left!

0

10

Cub Cadet 02000616

Front Axle Assembly
(Superseded to 01008384-0637)

$325.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01009253

Flat Washer, .390 x 1.5 x .134
(Superseded to 936-0227)

$

$

Not available

12

Cub Cadet 02000588

Flat Washer, 1.00 ID x 2.25 OD x ,075
(Superseded to 736-04605)

$4.49

$

In Stock, Qty 12

0

13

Cub Cadet 02002153

Spacer, .54 ID x .75 OD x 5.925 Lg

$14.99

$

In Stock, Qty 19

0

14

Cub Cadet 01006961

Hex Cap Screw, 1/2-20 x 7.50
(Superseded to 710-05385)

$11.99

$

In Stock, Qty 10

0

15

Cub Cadet 02002956

Wheel Assembly 11 x 6.00 - 5, Beige

$204.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02003490

WHeel Assembly 20 x 10.00 - 10

$391.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02003804

Hex Cap Screw, 1-14 x 5.5
(Superseded to 710-06026)

$46.99

$

In Stock, only 1 left!

0

18

Cub Cadet 731-0374

Flange Bearing, 1.0 ID
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0
