Z-Force 60 (17AI3AGJ709) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kawasaki Engine Assembly 23HP Kawasaki Parts Diagram

60" Z-Force Zero-Turn Mower, Kawasaki

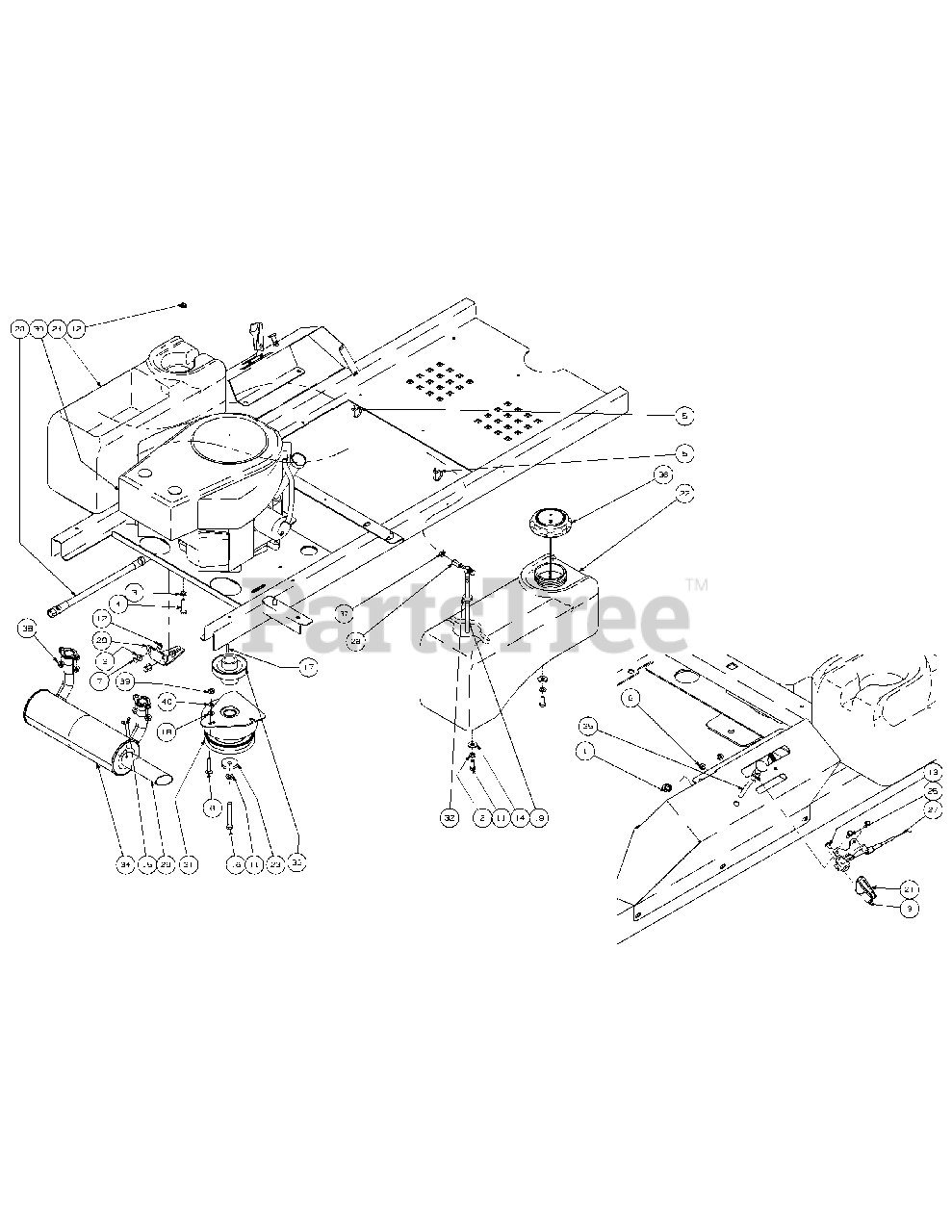

Engine Assembly 23HP Kawasaki Parts Diagram

  • Title

1

Cub Cadet 00011453

Hex Jam Nut, 3/8-24

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012157

Lock Washer, 3/8 Zinc
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 00006129

Hex Cap Screw, 5/16-18 x 1-3/4

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00012470

Cable Tie, 3/16 x .05 x 7.4
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01000956

Carriage Bolt, 5/16-18 x 1.75
(Superseded to 710-0458)

$4.49

$

In Stock, only 4 left!

0

7

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

9

Cub Cadet 00060056

Nut, w/ Star Washer

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet 01000368

Hex Cap Screw, 3/8-16 x .88
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

11

Cub Cadet 01000389

Lock Washer, 7/16
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 01000635

Lock Nut, Hex Flange, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 01000721

Machine Screw, 8-32 x .375
(Superseded to 710-3217)

$6.99

$

In Stock, Qty 7

0

14

Cub Cadet 00083192

Flat Washer, .390 ID x 1.0 OD x .180
(Superseded to 736-0258)

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet 01000811

Screw, 8-32 x .375, Hex Washer
(Superseded to 710-0148)

$4.49

$

In Stock, Qty 16

0

16

Cub Cadet 01000813

Hex Cap Screw, 7/16-20 x 3.00
(Superseded to 710-0510)

$11.99

$

In Stock, only 1 left!

0

17

Cub Cadet 00021517

Key, .25 x .25 x 2.00

$8.99

$

In Stock, only 1 left!

0

18

Cub Cadet 01002710

Washer, 3/8 x .738 x .063

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 01003116

Fuel Pickup Fitting

$58.99

$

In Stock, only 4 left!

0

20

Cub Cadet 01003283

Oil Drain Extension Hose

$84.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01004004

Throttle Control Knob
(Superseded to 731-04914)

$13.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01004350

Fuel Tank

$

$

Not available

23

Cub Cadet 01005314

Flat Washer, 7/16 ID x 1.75 OD x .250
(Superseded to 736-04131)

$15.99

$

In Stock, only 1 left!

0

24

Cub Cadet 01008138

Utility Bin
(Superseded to 01008138P)

$198.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01008531

Screw, #10-32 x 0.500
(Superseded to 01008531P)

$5.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01008623

Exhaust Pipe

$

$

Not available

27

Cub Cadet 02000477

Throttle Control Cable
(Superseded to 02000477P)

$51.99

$

In Stock, Qty 7

0

28

Hose, 1/4" Fuel Line

Note: Purchase locally

$

$

Not available

29

Cub Cadet 02001994

Clutch Retainer Assembly
(Superseded to 02001992-0637)

$30.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02001993

23HP Kawasaki Engine
(Superseded to 02001993P)

$

$

Not available

31

Cub Cadet 02002160

Electric Clutch
(Superseded to 02002160P)

$

$

Not available

32

Cub Cadet 02002253

Fuel Tank Groment

$4.99

$

In Stock, only 2 left!

0

33

Cub Cadet 02003418

Transmission Drive Pulley

$

$

Not available

34

Cub Cadet 02003472

Kawasaki Muffler
(Superseded to 02003472P)

$304.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 02003479

Choke Cable
(Superseded to 02003479P)

$42.99

$

In Stock, only 4 left!

0

36

Cub Cadet 02003809

Fuel Cap
(Superseded to 951-3124E)

$36.99

$

In Stock, only 1 left!

0

37

Cub Cadet 01000215

Hose Clamp

$

$

Not available

38

Cub Cadet 02003984

Nut, M8-1.25, Hex Flange
(Superseded to 712-04312)

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 00012166

Hex Nut, 5/16-18

$

$

Not available

40

Cub Cadet 00012168

Lock Washer, 5/16

$

$

Not available
