Z-Force 60 (17AI3AGJ709) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kawasaki Control Assembly SN 1D237 & After Parts Diagram

60" Z-Force Zero-Turn Mower, Kawasaki

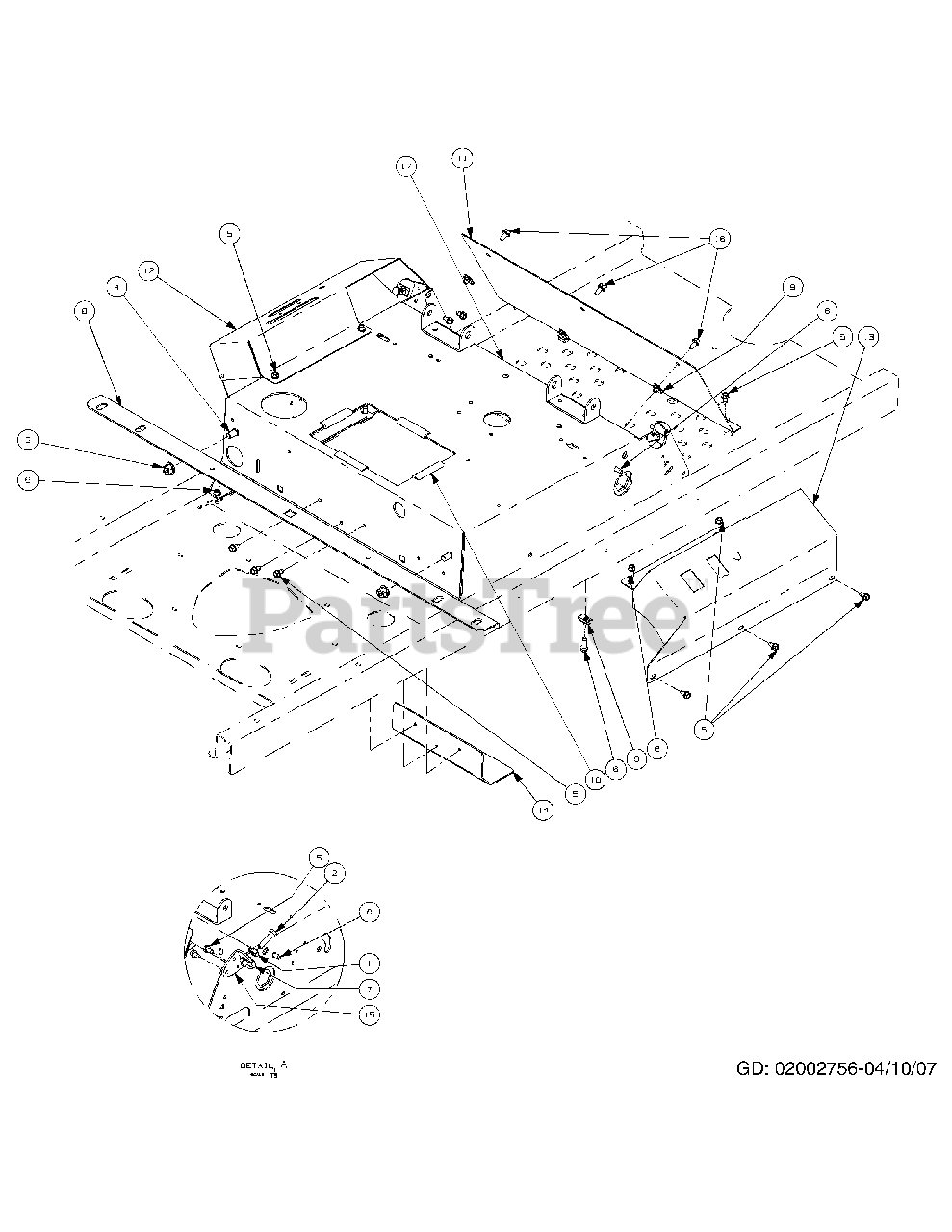

Control Assembly SN 1D237 & After Parts Diagram

  • Title

1

Cub Cadet 00012166

Hex Nut, 5/16-18

$

$

Not available

2

Cub Cadet 00013116

HHCS, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

3

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01000372

Carriage Bolt, 3/8-16
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 01000628

Screw, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 01000629

Self Tapping Screw, 1/4-20 x .75
(Superseded to 710-0642)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 01003563

U-Nut, 5/16-18
(Superseded to 926-0211)

$4.49

$

In Stock, only 1 left!

0

8

Cub Cadet 01008491

Front Tank Mounting Bracket

$

$

Not available

9

Cub Cadet 01008539

U-Nut, 1/4-20
(Superseded to 726-3054)

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 01008572

Battery Edge Trim
(Superseded to 735-04130)

$8.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 02002457

Front Panel

$

$

Not available

12

Cub Cadet 02002741

Left Hand Control Console

$

$

Not available

13

Cub Cadet 02002742

Right Hand Control Console

$

$

Not available

14

Cub Cadet 02002745

Battery Bracket

$

$

Not available

15

Cub Cadet 02002761

Forward/Reverse Stop Bracket

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 02003812

Screw, 1/4-20 x 1/2

$

$

Not available

17

Cub Cadet 02004172

Control Housing Weldment

$

$

Not available
