Z-Force 54 (17BF3AGX010) - Cub Cadet 54" Z-Force Zero-Turn Mower, Kohler (2013) Kohler SV725-3020 Ignition & Electrical Parts Diagram

54" Z-Force Zero-Turn Mower, Kohler

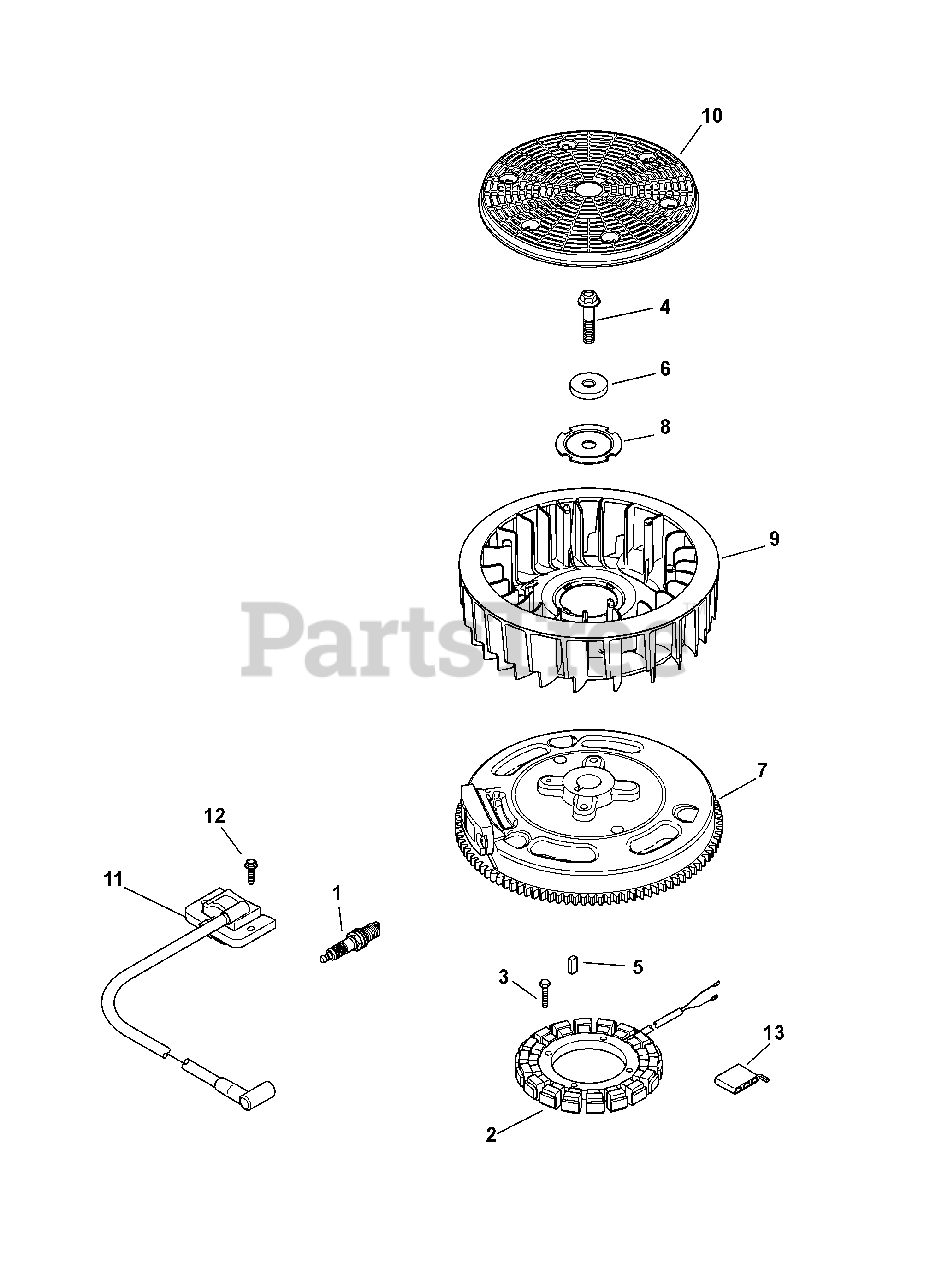

Kohler SV725-3020 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-25-132-12-S

Spark Plug

$20.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-237878

15 Amp Stator Kit

$149.99

$

In Stock, Qty 8

0

3

Cub Cadet KH-M-548025-S

Screw, M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-25-086-361-S

Hex Flange Screw

$3.99

$

In Stock, Qty 12

0

5

Cub Cadet KH-25-340-04-S

Square Key

$3.99

$

In Stock, Qty 10

0

6

Cub Cadet KH-25-468-09-S

Flat Washer

$6.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-32-025-22-S

Flywheel Assembly

$347.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-20-146-05-S

Fan Mounting Plate

$2.99

$

In Stock, Qty 11

0

9

Cub Cadet KH-32-157-01-S

Fan
(Superseded to KH-32-755-38-S)

$21.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-32-162-03-S

Grass Screen

$5.49

$

In Stock, Qty 7

0

11

Cub Cadet KH-24-584-45-S

Module Ignition Kit
(Superseded to KH-24-584-201-S)

$110.99

$

Usually ships in 3-6 days

0

12

Cub Cadet KH-M-545020-S

Screw, M5 x .8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

13

Cub Cadet KH-25-155-41-S

Connector

$24.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-454-03-S

Wire Tie

Note: (not shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-32-176-24-S

Wiring Harness

Note: (not shown)

$31.99

$

Usually ships in 2-5 days

0
