Z-Force 54 (17BF3AGX010) - Cub Cadet 54" Z-Force Zero-Turn Mower, Kohler (2013) Electrical Parts Diagram

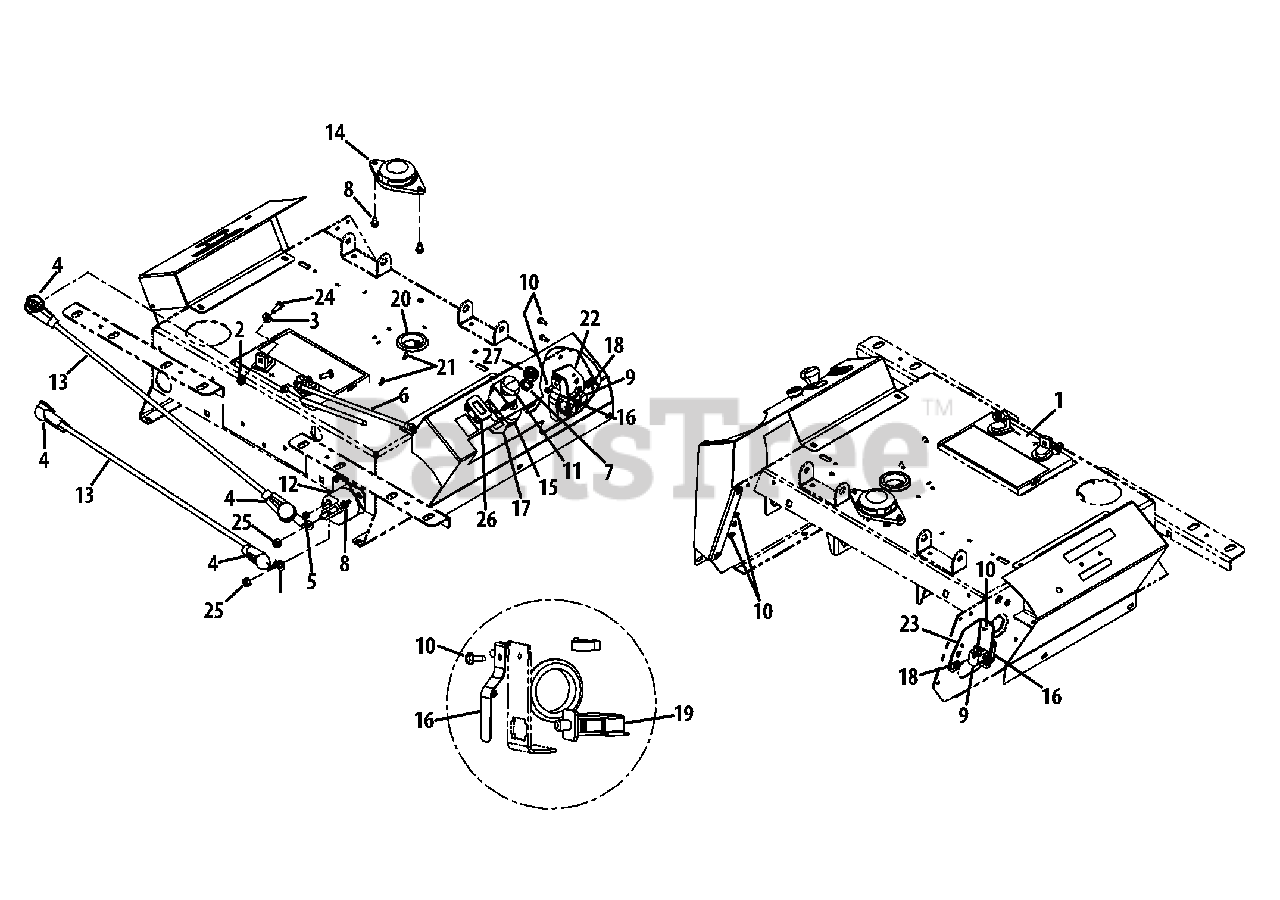

54" Z-Force Zero-Turn Mower, Kohler

Electrical Parts Diagram

  • Title

$

$

Not available

2

Cub Cadet 712-0324

Nylock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

3

Cub Cadet 936-3020

Flat Washer, .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

4

Cub Cadet 00013258

Boot Terminal, 1.00 x 2.50

$9.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-05003

Nylock Nut, #10-32

$3.49

$

In Stock, only 3 left!

0

6

Cub Cadet 00024233

Battery Cable

$39.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 925-1346

Nut, Ignition Switch, 5/8-32

$

$

Not available

8

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

$16.99

$

In Stock, Qty 20+

0

10

Cub Cadet 1767754

Flange Screw, #10-24 x .500
(Superseded to 710-04460)

$

$

Not available

11

Cub Cadet 925-04174

PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

12

$58.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01002252

Battery Cable

$38.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01003277

Seat Switch

$39.99

$

In Stock, only 1 left!

0

15

Cub Cadet 925-06073

Ignition Switch

$40.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 732-04200

Renovator Spring

$10.99

$

In Stock, Qty 7

0

17

Cub Cadet 01009905

PTO Bracket

$27.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-05009

Nut, #10-24

$

$

Not available

19

Cub Cadet 925-3164A

Delta Switch

$40.99

$

In Stock, Qty 20+

0

20

Cub Cadet 02001134

Grommet, 1/8 x 1.5 x 2.13

$

$

Not available

21

Cub Cadet 02003037

Electric CDT Clip

$3.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 02003926

RH Deck Switch Mount Bracket

$36.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02003927

LH Deck Switch Mount Bracket

$21.99

$

In Stock, only 1 left!

0

24

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

26

$95.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

Cub Cadet 02002990

Wiring Harness

Note: (not shown)

$273.99

$

Usually ships in 3-6 days

0

Cub Cadet 02005213

Harness Assembly

Note: (not shown)

$39.99

$

Usually ships in 3-6 days

0
