Z-Force 54 (17BF3AGX010) - Cub Cadet 54" Z-Force Zero-Turn Mower, Kohler (2012) Transmission Assembly Parts Diagram

54" Z-Force Zero-Turn Mower, Kohler

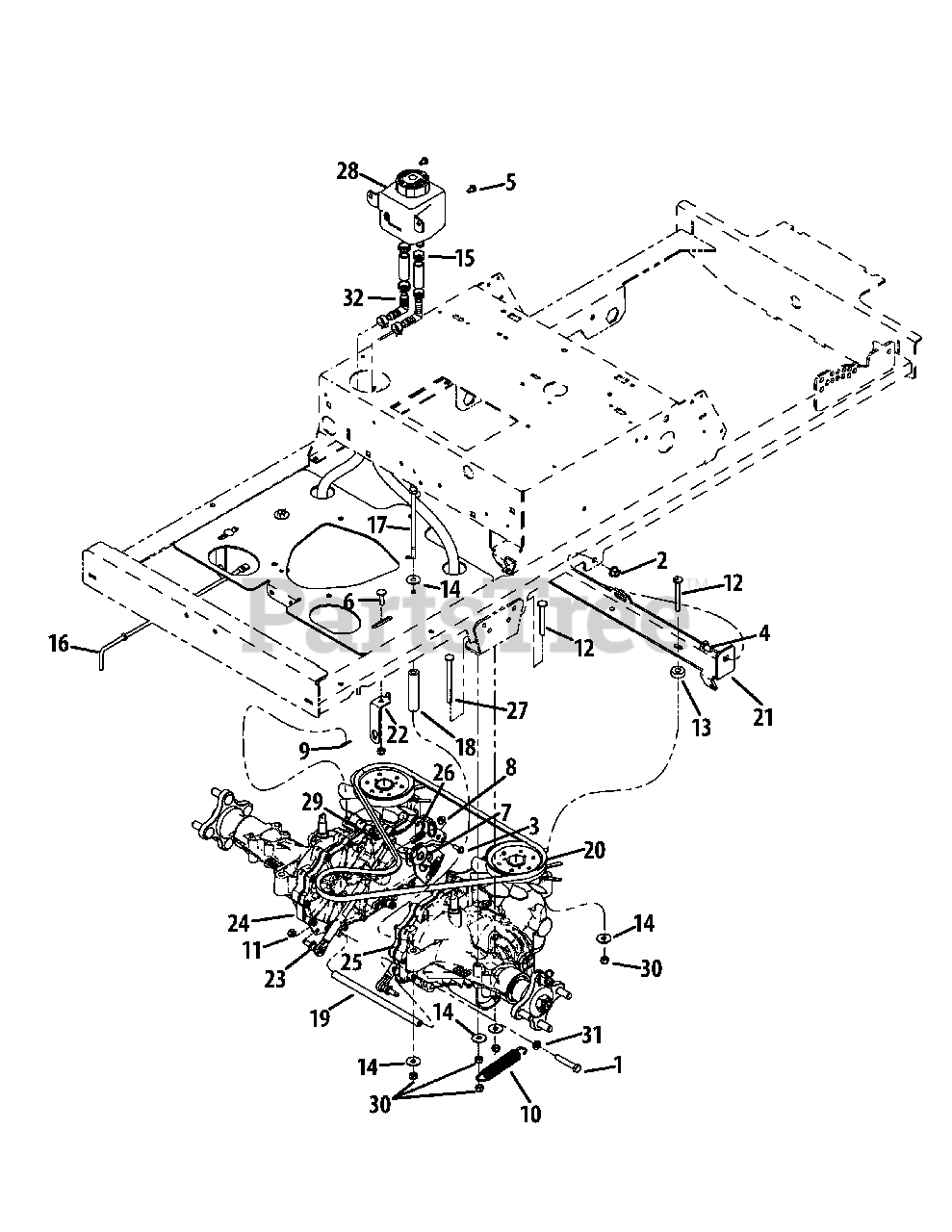

Transmission Assembly Parts Diagram

  • Title

1

Cub Cadet 00012172

Hex Screw, 3/8-16 x 2.00
(Superseded to 710-3096)

$7.99

$

In Stock, only 1 left!

0

2

Cub Cadet 00022560

Flange Counterlock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 01000641

Carriage Bolt, 5/16-18 x 1.00

$3.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 01001919

Shoulder Bolt, 1/4-28 x .38 x .465
(Superseded to 938-0826)

$12.99

$

In Stock, Qty 5

0

8

Cub Cadet 912-3027

Flange Toplock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 914-0104

Hair Pin, 1/8 x 1.125 x .072
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 01002874

Extension Spring, .865 x 4.7 x .12

$11.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01003561

Nylock Nut, M8-1.25

$

$

Not available

12

Cub Cadet 01005340

Carriage Bolt, 5/16-18 x 2.75
(Superseded to 710-06075)

$6.99

$

In Stock, only 1 left!

0

13

Cub Cadet 750-3119

Spacer, .406 x 1.00 x .38

$11.99

$

In Stock, only 4 left!

0

14

Cub Cadet 01009937

Washer, .313 x 1.06 x .062

$

$

Not available

15

Cub Cadet 02001111

Hose Clamp, .750

$6.99

$

In Stock, only 2 left!

0

16

Cub Cadet 02001332

Pump Relay Rod

$23.99

$

In Stock, only 1 left!

0

17

Cub Cadet 02001556

Hex Screw, 5/16-18 x 6.00
(Superseded to 710-06071)

$5.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02002646

Spacer, .375 x .750 x 3.30

$11.99

$

In Stock, only 4 left!

0

19

Cub Cadet 02002647

Transmission Support Tube

$

$

Not available

20

Cub Cadet 02002648

V-Belt
(Superseded to 02002648P)

$48.99

$

In Stock, only 3 left!

0

21

Cub Cadet 02002679-0637

Transmission Bracket Weldment

$101.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 02002965-0637

Neutral Bracket

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02003622

Damper

$94.99

$

In Stock, Qty 5

0

24

Cub Cadet 02004678P

LH Transmission

$1872.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 02004679P

RH Transmission

$1890.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02004681

Control Arm Damper Bracket

$

$

Not available

27

Cub Cadet 02005326

Carriage Bolt, 5/16-18 x 4.0
(Superseded to 710-06027)

$3.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 631-04286

Expansion Tank Assembly

$41.99

$

In Stock, only 1 left!

0

29

Cub Cadet 712-04177

Jam Nut, 1/4-28

$6.99

$

In Stock, only 4 left!

0

30

Cub Cadet 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 737-04342

Elbow, 90

$8.99

$

Usually ships in 3-6 days

0
