Z-Force 54 (17BF3AGX010) - Cub Cadet 54" Z-Force Zero-Turn Mower, Kohler (2012) Spindle Assembly Deck 54-Inch Parts Diagram

54" Z-Force Zero-Turn Mower, Kohler

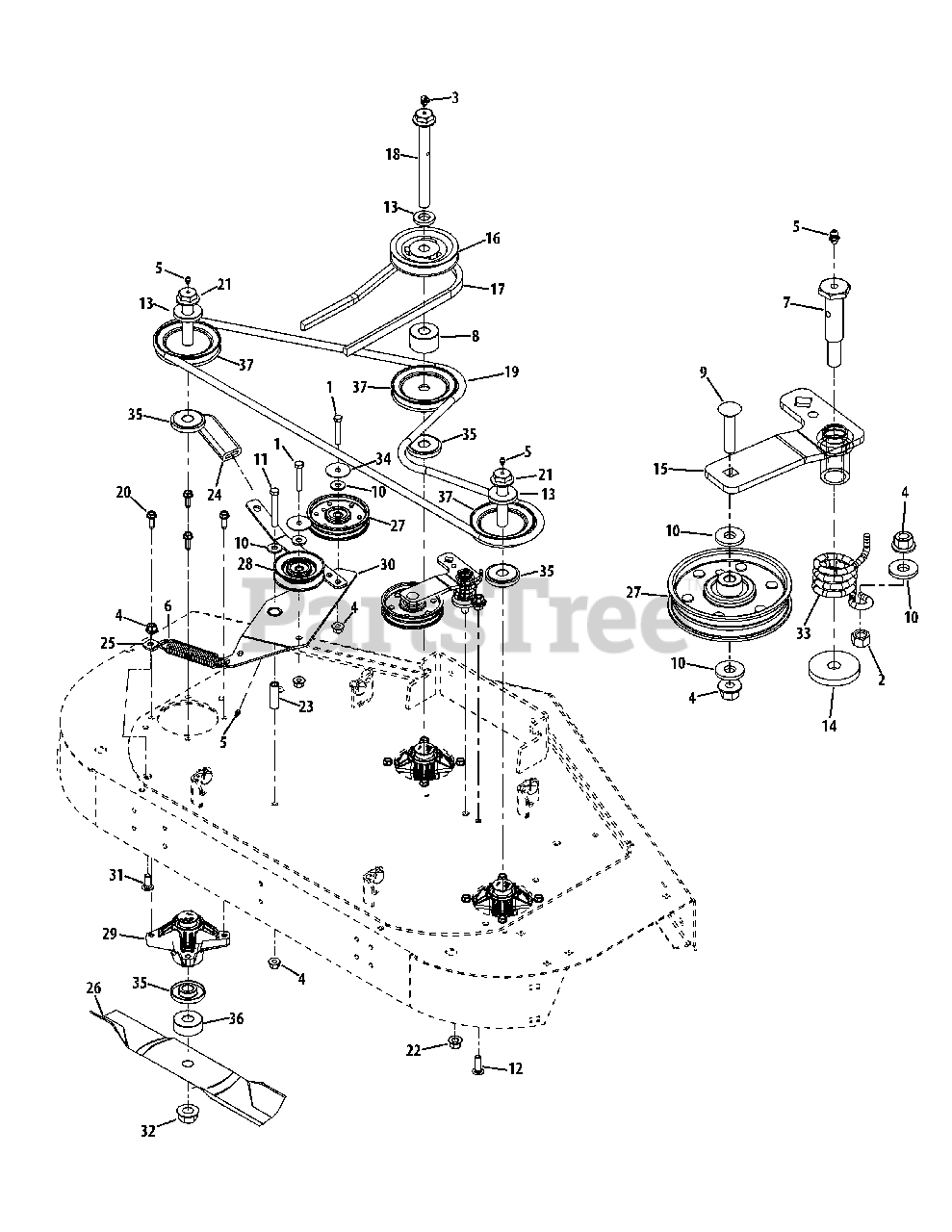

Spindle Assembly Deck 54-Inch Parts Diagram

  • Title

1

Cub Cadet 710-3011

Hex Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 20+

0

2

Cub Cadet 912-3017

Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 737-3004

Grease Fitting, 1/4-28 x .788

$11.99

$

In Stock, only 4 left!

0

4

Cub Cadet 00022560

Flange Counterlock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 737-04345

Grease Fitting, 1/4-28

$4.99

$

In Stock, Qty 6

0

6

Cub Cadet 01000199

Extension Spring, 1.00 x 5.00 x .125

$17.99

$

In Stock, only 4 left!

0

7

Cub Cadet 01000302

Shoulder Bolt, .625 x 1.95
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

8

Cub Cadet 750-05518

Spacer, .760 x 2.00 x 1.27

$

$

Not available

9

Cub Cadet 710-0560

Carriage Bolt, 3/8-18 x 1.75

$6.99

$

In Stock, Qty 12

0

10

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01004127

Hex Screw, 3/8-16 x 3.00
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 10

0

12

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

13

Cub Cadet 748-3101A

Spacer, 2.0 x .75 ID x .31

$23.99

$

In Stock, only 2 left!

0

14

Cub Cadet 01003269

Washer, .438 x 1.75 x .250
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

15

Cub Cadet 01005737

Idler Arm Assembly

$108.99

$

In Stock, only 2 left!

0

15

Cub Cadet 741-04555

Sleeve Bearing, .638 x .753 x .615

$16.99

$

In Stock, only 2 left!

0

16

Cub Cadet 01005201

Pulley

$130.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01005012

V-Belt, PTO
(Superseded to 01005012P)

$97.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-05110A

Hex Screw, 3/4-16 x 7.7

$56.99

$

In Stock, only 3 left!

0

19

Cub Cadet 02000653

V-Belt, Deck

$65.99

$

In Stock, only 1 left!

0

20

Cub Cadet 02000762

Hex Flange Screw, 5/16-18 x 1.00
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-05417

Hex Flange Screw, 3/4-16 x 5.625

$38.99

$

In Stock, only 1 left!

0

22

Cub Cadet 02000948

Flange Counterlock Nut, 7/16-14
(Superseded to 712-04337)

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02003640

Spacer, .390 x .625 x 1.88

$6.99

$

In Stock, Qty 10

0

24

Cub Cadet 02003740

Flat Grip, 1.0 x 3.2 x .25

$10.99

$

In Stock, only 1 left!

0

25

Cub Cadet 02004195

Spring Mount Bracket

$31.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02005018

Blade, Hi-Lift, 19.0
(Superseded to 942-04416)

$28.99

$

In Stock, Qty 20+

0

27

Cub Cadet 02005077

Idler Pulley, Flat

$35.99

$

In Stock, Qty 20+

0

28

Cub Cadet 02005078

Idler Pulley, V

$36.99

$

In Stock, only 4 left!

0

29

Cub Cadet 918-04426

Spindle Assembly

$112.99

$

In Stock, Qty 20+

0

30

Cub Cadet 853-000029

Double Idler

$

$

Not available

30

Cub Cadet 741-04555

Sleeve Bearing, .638 x .753 x .615

Note: Not shown

$16.99

$

In Stock, only 2 left!

0

31

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-3078

Flange Lock Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

33

Cub Cadet 732-3067

Torsion Spring

$23.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 736-3040

Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

35

Cub Cadet 748-3065A

Deck Spindle Spacer

$13.99

$

In Stock, Qty 17

0

36

Cub Cadet 750-05184

Spacer, .760 x 2.000 x .790

$37.99

$

In Stock, only 4 left!

0

37

Cub Cadet 756-3089

Pulley

$36.99

$

Usually ships in 3-6 days

0
