Z-Force 54 (17BF3AGX010) - Cub Cadet 54" Z-Force Zero-Turn Mower, Kohler (2011 & Before) Kohler SV720-3044 Crankcase Parts Diagram

54" Z-Force Zero-Turn Mower, Kohler

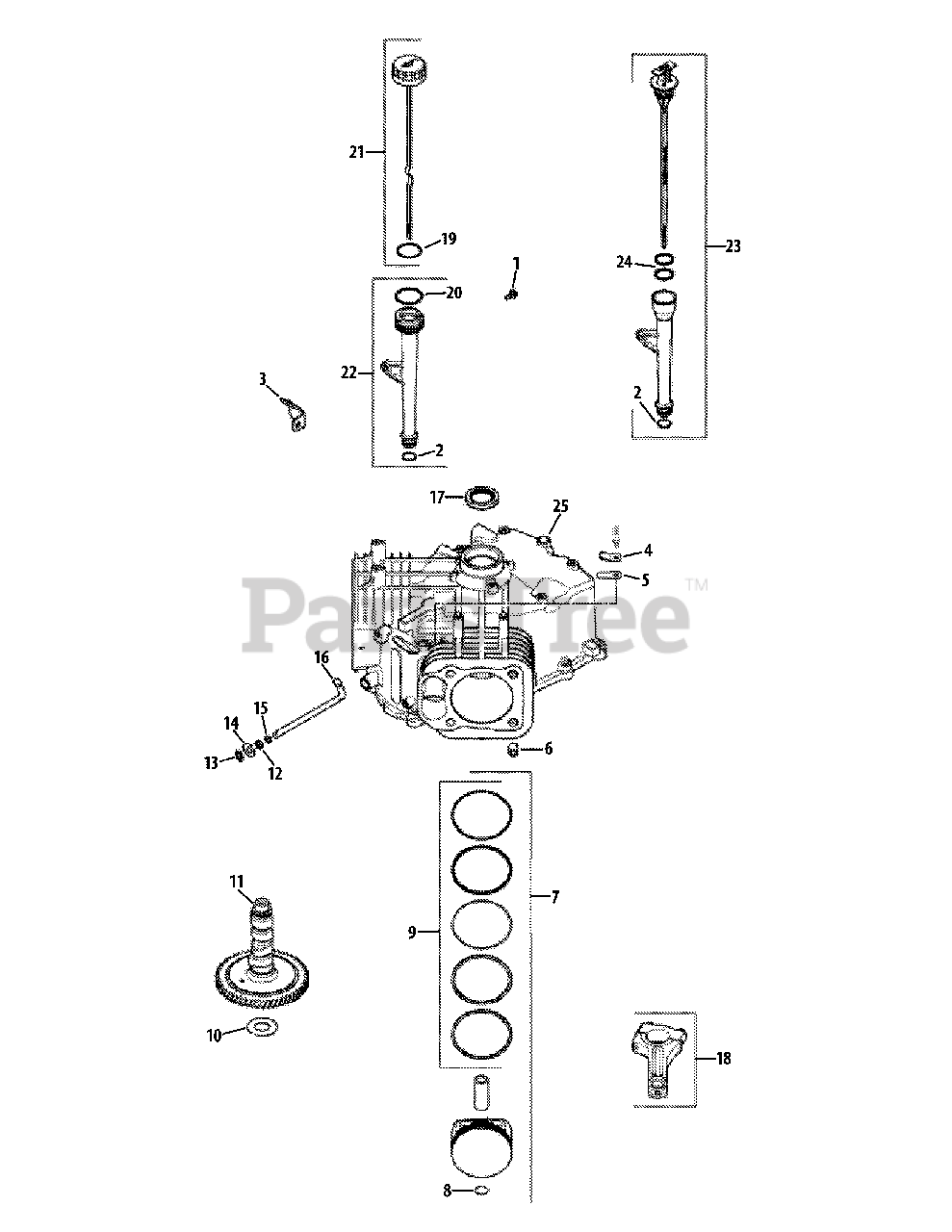

Kohler SV720-3044 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-M-545013-S

Flange Screw, M5 x .8 x 13

$2.49

$

In Stock, Qty 9

0

2

Cub Cadet KH-12-153-01-S

Lower Oil Fill Tube O-Ring

$4.99

$

In Stock, Qty 17

0

3

Cub Cadet KH-24-126-19

Oil Fill Tube Bracket
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-24-018-04-S

Breather Reed Retainer

$2.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-12-402-02

Breather Reed

$

$

Not available

6

Cub Cadet KH-24-380-16-S

Locating Pin

$4.49

$

In Stock, only 3 left!

0

7

Cub Cadet KH-25-874-01-S

Piston Kit w/ Ring Set, 83mm (STD) (Inc. #8 & 9)
(Superseded to KH-25-874-13-S)

$270.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-25-874-03-S

Piston Kit w/ Ring Set, 83mm (.25) (Inc. #8 & 9)
(Superseded to KH-25-874-16-S)

$261.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-25-874-02-S

Piston Kit w/ Ring Set, 83mm (.08) (Inc. #8 & 9)
(Superseded to KH-25-874-07-S)

$261.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-24-018-01-S

Piston Pin Retainer

$2.99

$

In Stock, Qty 7

0

9

Cub Cadet KH-24-108-15-S

Ring Set, .08

$103.99

$

In Stock, only 3 left!

0

9

Cub Cadet KH-24-108-14-S

Ring Set, STD

$

$

Not available

9

Cub Cadet KH-24-108-16-S

Ring Set, .25

$103.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-12-422-07-S

Camshaft Shim, .028 (White)

$4.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-12-422-08-S

Camshaft Shim, .03 (Blue)

$2.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-12-422-09-S

Camshaft Shim, .032 (Red)

$2.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-12-422-10-S

Camshaft Shim, .034 (Yellow)

$2.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-12-422-11-S

Camshaft Shim, .036 (Green)

$2.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-12-422-12-S

Camshaft Shim, .038 (Gray)

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-12-422-13-S

Camshaft Shim, .04 (Black)

$2.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-32-012-01-S

Camshaft Kit (Inc. KH-25-357-14-S)

$136.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-28-032-09-S

Governor Cross Shaft Seal

$3.49

$

In Stock, Qty 7

0

13

Cub Cadet KH-24-018-09-S

Ring Retainer

$2.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-M-931010-S

Flat Washer, 9mm

$2.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-468-15-S

Flat Washer, 11.32

$2.49

$

In Stock, Qty 5

0

16

Cub Cadet KH-24-144-38-S

Governor Cross Shaft
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-24-032-19-S

Oil Seal, 1.78 x 1.26

$7.49

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-067-24-S

Connecting Rod (STD)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, Qty 6

0

19

Cub Cadet KH-25-153-02-S

Dipstick O-Ring

$2.49

$

In Stock, only 1 left!

0

20

Cub Cadet KH-12-153-02-S

Upper Oil Fill Tube O-Ring

$2.49

$

In Stock, Qty 8

0

21

Cub Cadet KH-24-038-04-S

Dipstick Assembly (Inc. #19)

$19.99

$

In Stock, only 1 left!

0

22

Cub Cadet KH-25-123-07-S

Tube Assembly (Inc. #2, 19 & KH-12-123-04-S)
(Superseded to KH-32-755-04-S)

$

$

Not available

23

Cub Cadet KH-32-755-04-S

Dipstick & Tube Kit

$

$

Not available

24

Cub Cadet KH-20-153-01-S

O-Ring
(Superseded to KH-25-153-09-S)

$3.49

$

In Stock, only 1 left!

0

25

Cub Cadet N/A

Crankcase (Use Short Block)

$

$

Currently unavailable

Cub Cadet KH-25-357-14-S

Camshaft Lubricant

Note: Not shown

$2.49

$

In Stock, only 3 left!

0
