Z-Force 54 (17BF3AGX010) - Cub Cadet 54" Z-Force Zero-Turn Mower, Kohler (2011 & Before) Brake Assembly Parts Diagram

54" Z-Force Zero-Turn Mower, Kohler

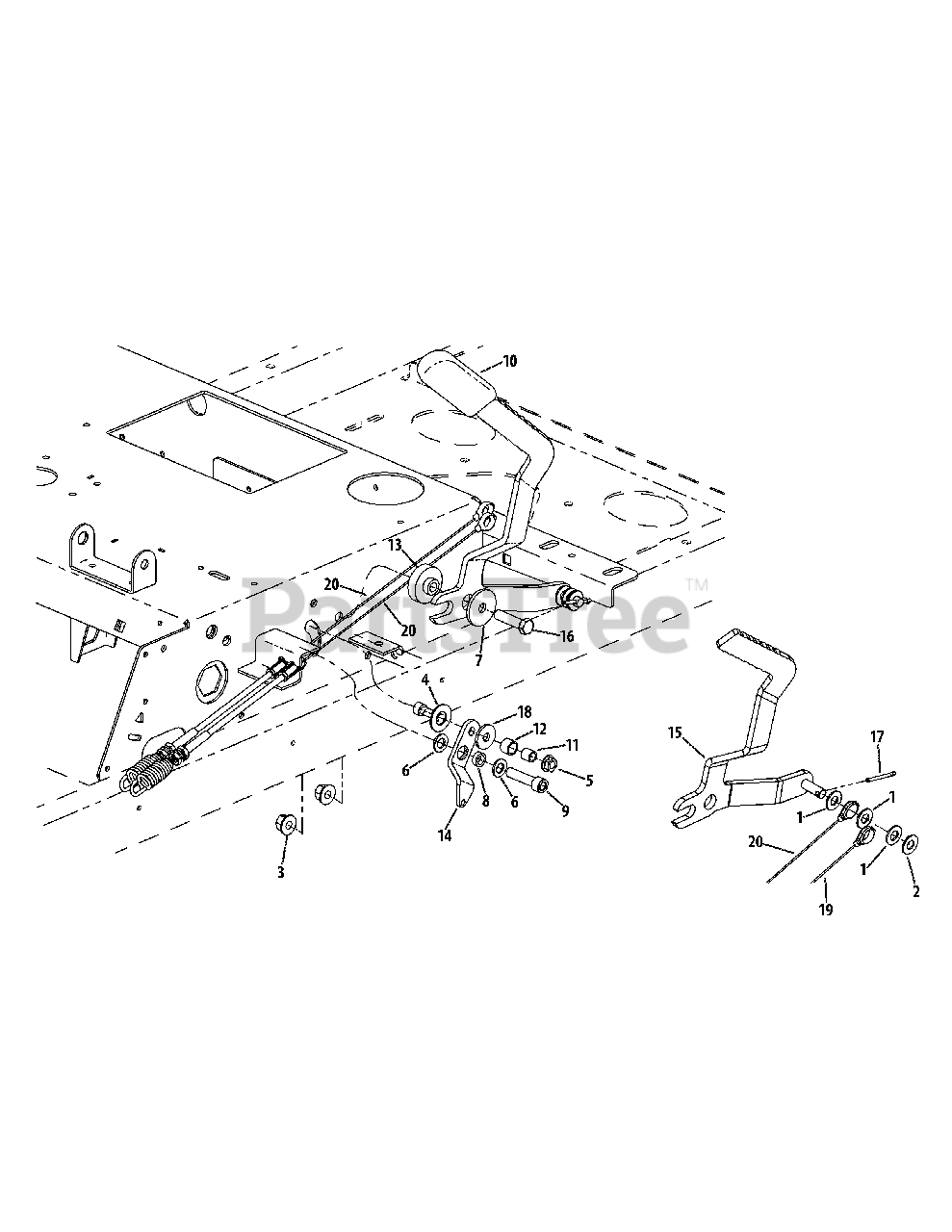

Brake Assembly Parts Diagram

  • Title

1

Cub Cadet 00005530

Flat Washer, .406 x .812 x .062
(Superseded to 736-04070)

$

$

Not available

2

Cub Cadet 00012180

Flat Washer, 3.8

$

$

Not available

3

Cub Cadet 00022560

Hex Nut, 3.8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01000101

Slide Washer
(Superseded to 936-0414)

$

$

Not available

5

Cub Cadet 712-3004A

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01002710

Washer, .375 x .738 x .063

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 01009253

Flat Washer, .390 x 1.5 x .134
(Superseded to 936-0227)

$

$

Not available

8

Cub Cadet 02002885

Spacer, .380 x .563 x .196

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 02003717

Sockethead Capscrew, 3.8-16 x 1.50
(Superseded to 710-06024)

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 02003740

Parking Brake Grip

$10.99

$

In Stock, only 1 left!

0

11

Cub Cadet 02003839

Spacer, .322 x .438 x .44

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 02003840

Spacer, .442 x .563 x .405

$

$

Not available

13

Cub Cadet 02004045

Step Hub, .379 x 1.5 x .257/.400

$

$

Not available

14

Cub Cadet 02004174

Lockout Lever Plate

$16.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 680-00049

Brake Handle

$

$

Not available

16

Cub Cadet 710-0520

Hex Head Cap Screw, 3.8-16 x 1.50

$4.49

$

In Stock, Qty 5

0

17

Cub Cadet 914-0474

Cotter Pin, 1.8 x .75
(Superseded to 714-0474)

$

$

Not available

18

Cub Cadet 736-3089

Washer, .345 x 1.00 x .100

$

$

Not available

19

Cub Cadet 946-04564

Left Hand Brake Cable

$42.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 946-04565

Right Hand Brake Cable

$

$

Not available
