Z-Force 50 (53AA5B7P710) - Cub Cadet 50" Z-Force Zero-Turn Mower, Kohler Electrical Assembly Parts Diagram

50" Z-Force Zero-Turn Mower, Kohler

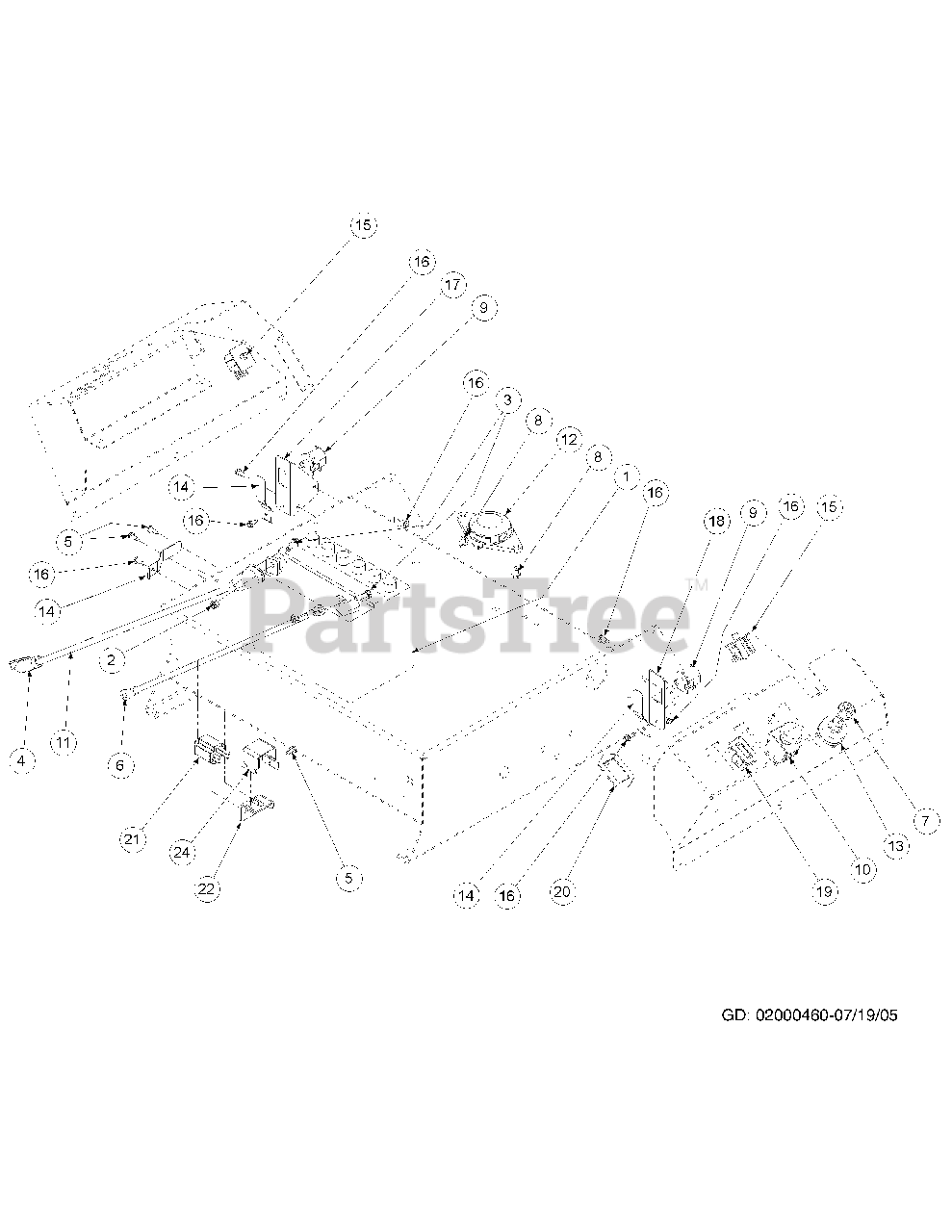

Electrical Assembly Parts Diagram

  • Title
1

Cub Cadet 00012032

Battery, 12V 225CCA 30Min
(Superseded to 925-1707D)

$

$

Not available

2

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00013131

Hex Cap Screw, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00013258

Boot, 1" OD Rubber Battery-PST Red

$9.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 01010129

Self Tapping Screw, 12-24

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00024233

Cable, Battery, Black, 17"

$39.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00032097

Nut, 5/8-32, w/Cap
(Superseded to 00032097P)

$

$

Not available

8

Cub Cadet 01000628

Self Tapping Screw, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 01001717

Normally Closed Safety Switch
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

10

Cub Cadet 01002111

Electric PTO Switch
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 13

0

11

Cub Cadet 01002252

Cable, Battery, Red, 24"

$38.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01003277

Normally Closed Seat Switch

$39.99

$

In Stock, only 1 left!

0

13

Cub Cadet 01003581

Switch, Ignition, 6 Pin
(Superseded to 01003581P)

$69.99

$

In Stock, Qty 7

0

13

Cub Cadet 725-1341B

Key, Ignition

Note: Not Shown

$10.99

$

In Stock, only 1 left!

0

14

Cub Cadet 01008042

Safety Switch Retainer Spring
(Superseded to 732-04200)

$10.99

$

In Stock, Qty 7

0

15

Cub Cadet 01008386

Neutral Switch
(Superseded to 925-04165)

$32.99

$

In Stock, only 4 left!

0

16

Cub Cadet 01001864

Self Tapping Screw, 10-32 x 1/2
(Superseded to 1767754)

$

$

Not available

17

Cub Cadet 01008614

Bracket, Safety Switch, Left Hand

$

$

Not available

18

Cub Cadet 01008615

Bracket, Safety Switch, Right Hand

$

$

Not available

19

Cub Cadet 01007597

Hour Meter
(Superseded to 925-05120A)

$95.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01009905

PTO Switch Bracket

$27.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02000165

Switch, Plunger
(Superseded to 725-04232)

$49.99

$

In Stock, only 1 left!

0

22

Cub Cadet 02000368

Control Housing Assembly

$

$

Not available

24

Cub Cadet 02000488

Switch, Clamp

$

$

Not available

Cub Cadet 02000555

Harness Assembly
(Superseded to 02000555P)

Note: Not Shown

$320.99

$

In Stock, only 1 left!

0
