Z-Force 50 (53AA5B7P710) - Cub Cadet 50" Z-Force Zero-Turn Mower, Kohler Crankcase Parts Diagram

50" Z-Force Zero-Turn Mower, Kohler

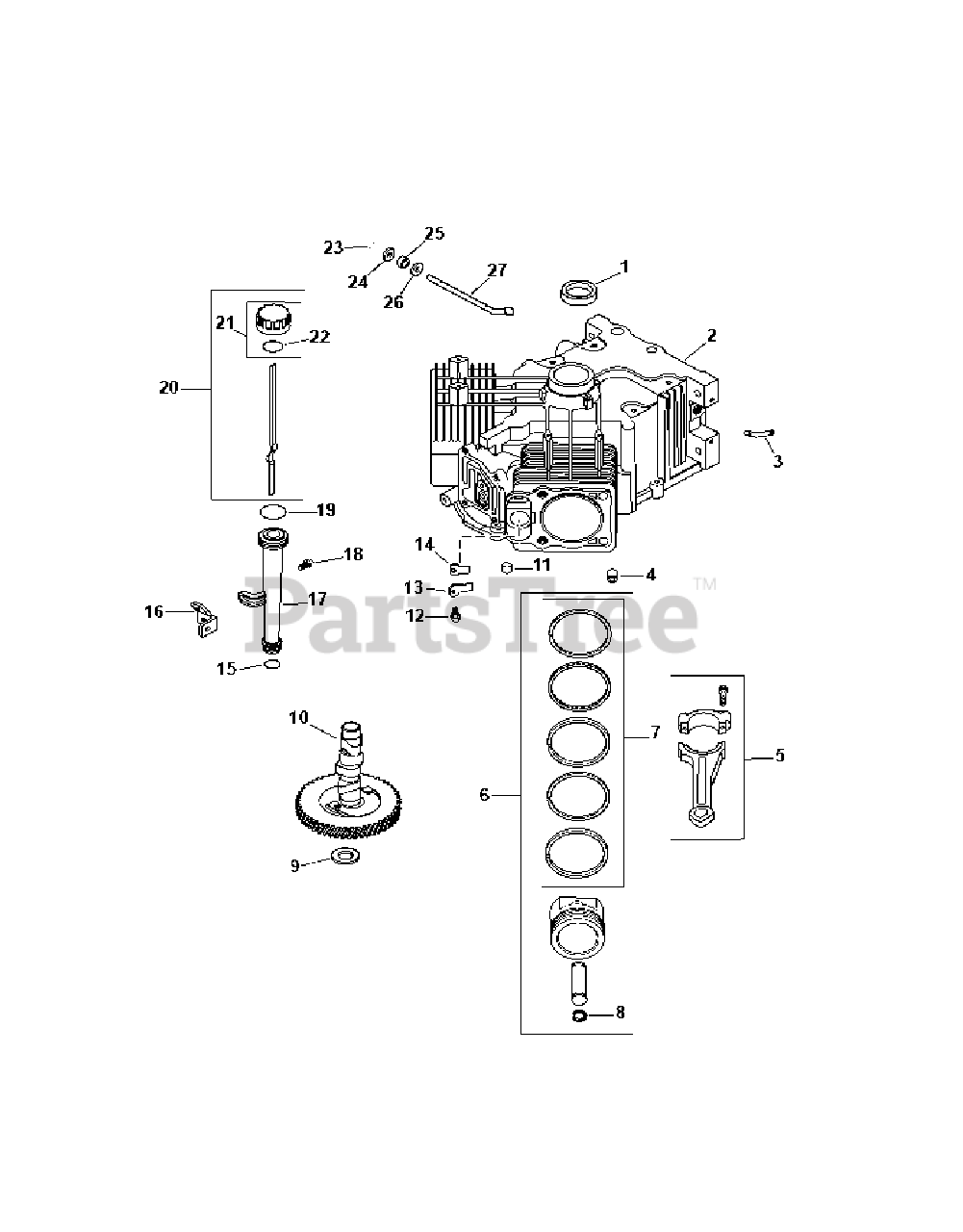

Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-24-032-01-S

Oil Seal
(Superseded to KH-24-032-19-S)

$7.49

$

In Stock, Qty 20+

0

2

Cub Cadet KH-24-522-393

Short Block

$

$

Not available

2

Cub Cadet KH-24-782-14

Miniblock

$1281.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-24-294-13

Fitting

$

$

Not available

4

Cub Cadet KH-24-380-13-S

Split Dowel Pin
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-067-13-S

Connecting Rod (Std.)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, Qty 6

0

5

Cub Cadet KH-24-067-14

Connecting Rod (.25)

$

$

Not available

6

Cub Cadet KH-24-874-09-S

Piston w/Ring Set Kit (Std.)
(Superseded to KH-24-874-54-S)

$250.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-24-874-15

Piston w/Ring Set Kit (.08.)
(Superseded to KH-24-874-43-S)

$

$

Not available

6

Cub Cadet KH-24-874-10

Piston w/Ring Set Kit (.25.)
(Superseded to KH-24-874-56-S)

$288.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-874-11

Piston w/Ring Set Kit (.50.)
(Superseded to KH-24-874-45-S)

$288.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-108-08-S

Ring Set (Std. & .08)
(Superseded to KH-24-108-18-S)

$

$

Not available

7

Cub Cadet KH-24-108-09-S

Ring Set (.25)
(Superseded to KH-24-108-20-S)

$

$

Not available

7

Cub Cadet KH-24-108-10-S

Ring Set (.50)

$

$

Not available

8

Cub Cadet KH-24-018-01

Piston Pin Retainer
(Superseded to KH-24-018-01-S)

$2.49

$

In Stock, Qty 7

0

9

Cub Cadet KH-12-422-07

Shim (White)
(Superseded to KH-12-422-07-S)

Note: (AS REQUIRED)

$4.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-08

Shim (Blue)
(Superseded to KH-12-422-08-S)

Note: (AS REQUIRED)

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-12-422-09

Shim (Red)
(Superseded to KH-12-422-09-S)

Note: (AS REQUIRED)

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-12-422-10

Shim (Yellow)
(Superseded to KH-12-422-10-S)

Note: (AS REQUIRED)

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-12-422-11

Shim (Green)
(Superseded to KH-12-422-11-S)

Note: (AS REQUIRED)

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-12

Shim (Gray)
(Superseded to KH-12-422-12-S)

Note: (AS REQUIRED)

$2.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-13

Shim (Black)
(Superseded to KH-12-422-13-S)

Note: (AS REQUIRED)

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-012-10-S

Camshaft Kit
(Superseded to KH-24-012-23-S)

$164.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-52-139-09

Cup Plug
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-M-0545010

Screw

$

$

Not available

13

Cub Cadet KH-24-018-04

Reed Retainer

$

$

Not available

14

Cub Cadet KH-24-402-05-S

Breather Reed
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-12-153-01-S

O-Ring

$4.99

$

In Stock, Qty 17

0

16

Cub Cadet KH-24-126-19

Oil Fill Tube Bracket
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-12-123-04

Oil Fill Tube
(Superseded to KH-32-755-04-S)

$

$

Not available

18

Cub Cadet KH-M-545016-S

Screw
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-12-153-03

O-Ring Upper Fill Tube
(Superseded to KH-25-153-02-S)

$2.49

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-24-038-04-S

Dipstick

$19.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-24-755-46

Oil Fill Cap Kit

$

$

Not available

22

Cub Cadet KH-25-153-02-S

O-Ring

$2.49

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-24-018-09-S

Ring Retainer

$2.49

$

In Stock, only 2 left!

0

24

Cub Cadet KH-M-931010-S

Plain 9mm washer

$2.49

$

In Stock, only 2 left!

0

25

Cub Cadet KH-28-032-09-S

Oil Governor Shaft Seal

$3.49

$

In Stock, Qty 10

0

26

Cub Cadet KH-24-468-15-S

Flat Washer

$2.49

$

In Stock, Qty 6

0

27

Cub Cadet KH-24-144-38-S

Governor Cross Shaft
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0
