Z-Force 50 (17AH3AGP709) - Cub Cadet 50" Z-Force Zero-Turn Mower, Kohler Mower Spindle Assembly 50 inch Parts Diagram

50" Z-Force Zero-Turn Mower, Kohler

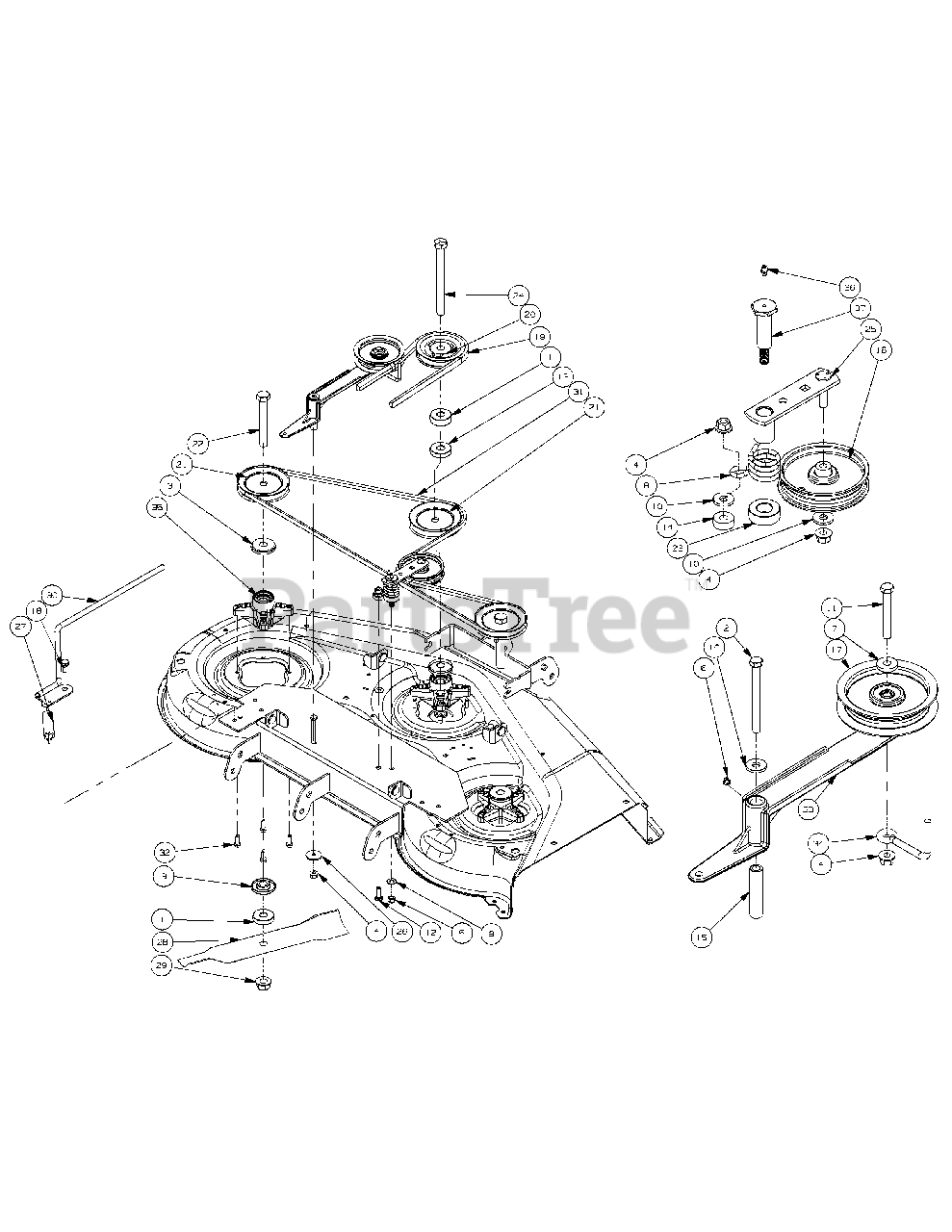

Mower Spindle Assembly 50 inch Parts Diagram

  • Title

1

Cub Cadet 748-3020

Blade Spacer
(Superseded to 948-3020)

$17.99

$

In Stock, only 2 left!

0

2

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

3

Cub Cadet 748-3065A

Spindle Spacer

$13.99

$

In Stock, Qty 14

0

4

Cub Cadet 00022560

Hex Nut, 3/8-16, Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00027279

Nut 7/16-14, Nylock
(Superseded to 712-0290)

$4.99

$

In Stock, Qty 11

0

6

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

8

Cub Cadet 01000387

Idler Spring
(Superseded to 932-3009)

$24.99

$

In Stock, only 4 left!

0

9

Cub Cadet 01000393

Flat Washer, .469 ID x .875 OD x .105
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 19

0

10

Cub Cadet 01000723

Flat Washer, .406 ID x 1.0 OD x .105
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01001366

Hex Cap Screw 3/8-16 x 2.25

$

$

Not available

12

Cub Cadet 01002010

Carraige Screw, 3/8-16 x 1.25
(Superseded to 710-3034)

$3.99

$

In Stock, Qty 5

0

13

Cub Cadet 01002564

Spacer, .76 ID x 2.00 OD x .477

$20.99

$

In Stock, only 2 left!

0

14

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$11.99

$

In Stock, only 4 left!

0

15

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, Qty 11

0

16

Cub Cadet 01004081

Flat Pulley
(Superseded to 02005077)

$35.99

$

In Stock, Qty 20+

0

17

Cub Cadet 01004101

Idler Pulley, 4.06 OD
(Superseded to 02004447)

$57.99

$

In Stock, Qty 20+

0

18

Cub Cadet 01004118

Shoulder Screw, .50 x .27 Lg., 3/8-16
(Superseded to 938-0380)

$7.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01005011

V-Belt, Mower Drive
(Superseded to 01005011P)

$96.99

$

In Stock, only 1 left!

0

20

Cub Cadet 01005202

V-Pulley, 4.75 OD

$126.99

$

In Stock, only 1 left!

0

21

Cub Cadet 01006535

V-Pulley, 5.0 OD
(Superseded to 956-1209)

$60.99

$

In Stock, only 3 left!

0

22

Cub Cadet 01006590

Hex Cap Screw 3/4-16 x 5.50

$

$

Not available

23

Cub Cadet 01008456

Spacer .760 ID x 1.5 OD

$34.99

$

In Stock, only 1 left!

0

24

Cub Cadet 01008542

Hex Cap Screw, 3/4-16, 7.50

$28.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01008593

Idler Arm Assembly

$144.99

$

In Stock, only 2 left!

0

26

Cub Cadet 01009253

Washer, 5/16-18
(Superseded to 936-0227)

$

$

Not available

27

Cub Cadet 01009635

Extension Spring, .98 OD x 5.00

$19.99

$

In Stock, only 1 left!

0

28

Cub Cadet 01010168

Hi-Lift Blade, 17.9
(Superseded to 01010168-0637)

Variations

Cub Cadet 01010168-0637

Mower Blade, 17.9" Lg Hi-Lift Powder Black - POWDER BLACK (0637)

$29.99

$

In Stock, Qty 20+

0

$29.99

$

In Stock, Qty 20+

0

29

Cub Cadet 02000402

Nut, 3/4-16, Hex Flange

$12.99

$

In Stock, only 3 left!

0

30

Cub Cadet 02000416

Spring Tension Rod Assembly

$

$

Not available

31

Cub Cadet 02000653

V-Belt, 1/2 x 90.9 LG

$65.99

$

In Stock, only 1 left!

0

32

Cub Cadet 02000762

Self Tapping Screw 5/16-18 x 1.0
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 02001855

Idler Arm Assembly, Top

$118.99

$

In Stock, only 3 left!

0

34

Cub Cadet 02002356

Belt Guide

$

$

Not available

35

Cub Cadet 618-04426

Spindle Assembly
(Superseded to 918-04426)

$112.99

$

In Stock, Qty 20+

0

35

Cub Cadet 721-3018A

Seal, Oil
(Superseded to 921-3018A)

Note: Not shown

$8.49

$

In Stock, Qty 20+

0

35

Cub Cadet 741-04089

Bearing, Cone
(Superseded to 941-04298)

Note: Not shown

$16.99

$

In Stock, Qty 18

0

35

Cub Cadet 741-04091

Bearing, Cup
(Superseded to 941-04299)

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

35

Cub Cadet 750-04409

Spacer, Bearing

Note: Not shown

$20.99

$

In Stock, only 1 left!

0

36

Cub Cadet 737-3000

Grease Fitting
(Superseded to 937-3000)

Note: Drive Type

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 738-3172

Shoulder Screw .68 x 2.11

$20.99

$

In Stock, only 2 left!

0
