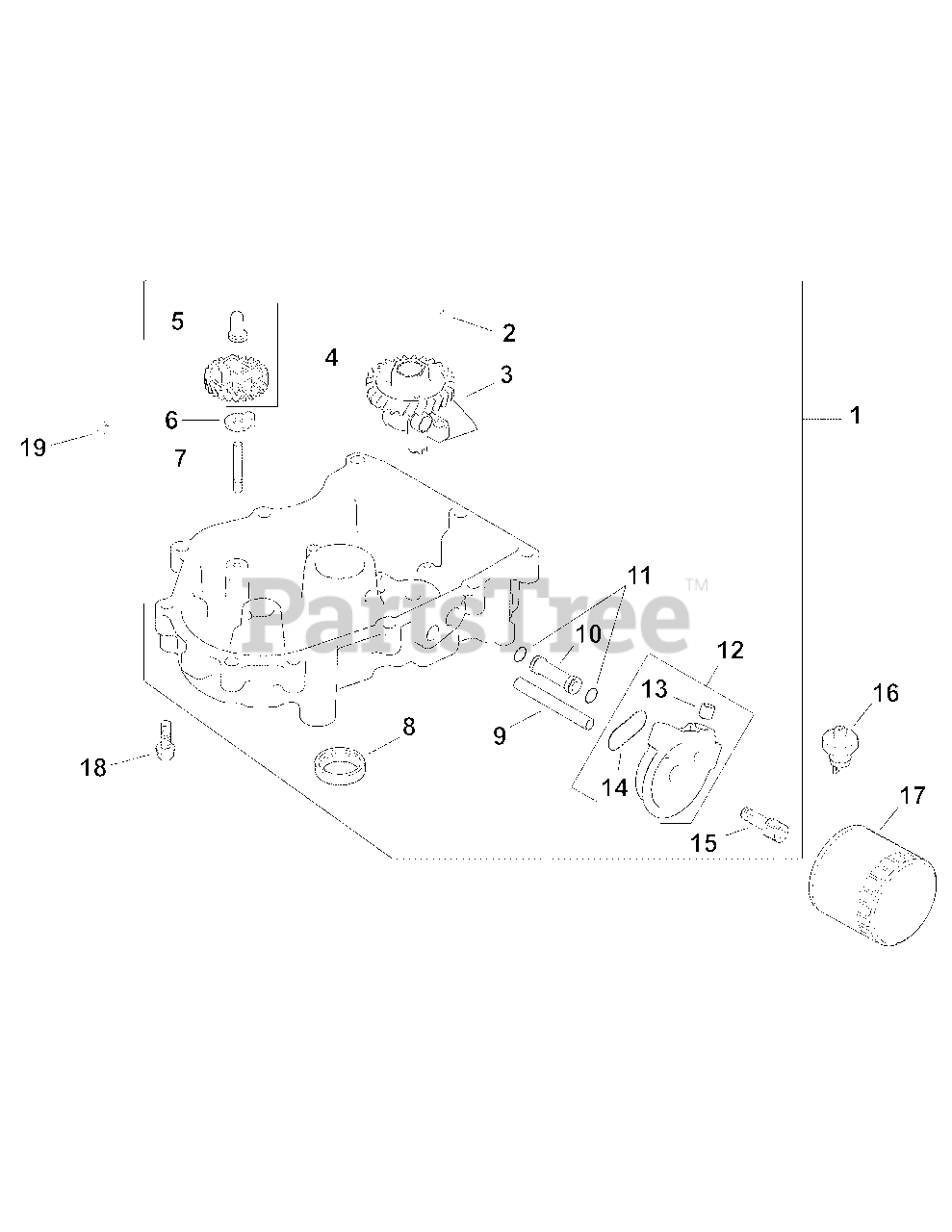

Z-Force 50 (17AF3AGP010) - Cub Cadet 50" Z-Force Zero-Turn Mower, Kohler SV820 Oil Pan & Lubrication Parts Diagram

50" Z-Force Zero-Turn Mower, Kohler

SV820 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-32-199-04-S

Pan, Oil Assembly
(Superseded to KH-32-199-20-S)

Note: (Includes Ref No. 2-16)

$

$

Not available

2

Cub Cadet KH-32-086-01-S

Screw, SHD THD FRM M6 x 1.0 x 26.5

$2.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-32-393-10-S

Pump Assembly, Oil

$

$

Not available

4

Cub Cadet KH-24-043-12

Kit, Governor Gear w/ Pin

Note: (Includes Ref No. 5)

$

$

Not available

5

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

6

Cub Cadet KH-24-448-02-S

Tab, Locking

$2.49

$

In Stock, Qty 20+

0

7

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

8

Cub Cadet KH-25-032-06-S

Seal, Oil

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-32-123-01-S

Tube, Oil Feed-Filter to Pan

$

$

Not available

10

Cub Cadet KH-32-123-03-S

Tube, Oil Feed-Pan to Filter

$

$

Not available

11

Cub Cadet KH-24-153-01

O-Ring, Oil Pick-Up

$

$

Not available

12

Cub Cadet KH-32-029-16-S

Kit, Adaptor Oil Filter
(Superseded to KH-32-029-10-S)

Note: (Includes Ref No. 13 & 14)

$

$

Not available

13

Cub Cadet KH-25-139-60-S

Plug, CTSK 1/8"

$3.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-32-153-04-S

O-Ring, Oil Filter Adaptor

$2.99

$

In Stock, only 3 left!

0

15

Cub Cadet KH-32-136-03-S

Nipple, Oil Filter

$9.49

$

In Stock, only 1 left!

0

16

Cub Cadet KH-25-099-27-S

Switch, Oil Pressure

$15.99

$

In Stock, Qty 5

0

17

Cub Cadet KH-25-050-34-S

Filter, Oil
(Superseded to KH-52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-086-17-S

Screw, Flg M8 x 1.25 x 45

$2.49

$

In Stock, Qty 5

0

19

Cub Cadet KH-25-139-57-S

Plug, Sq Hd Pipe 3/8"

$2.49

$

In Stock, only 3 left!

0
