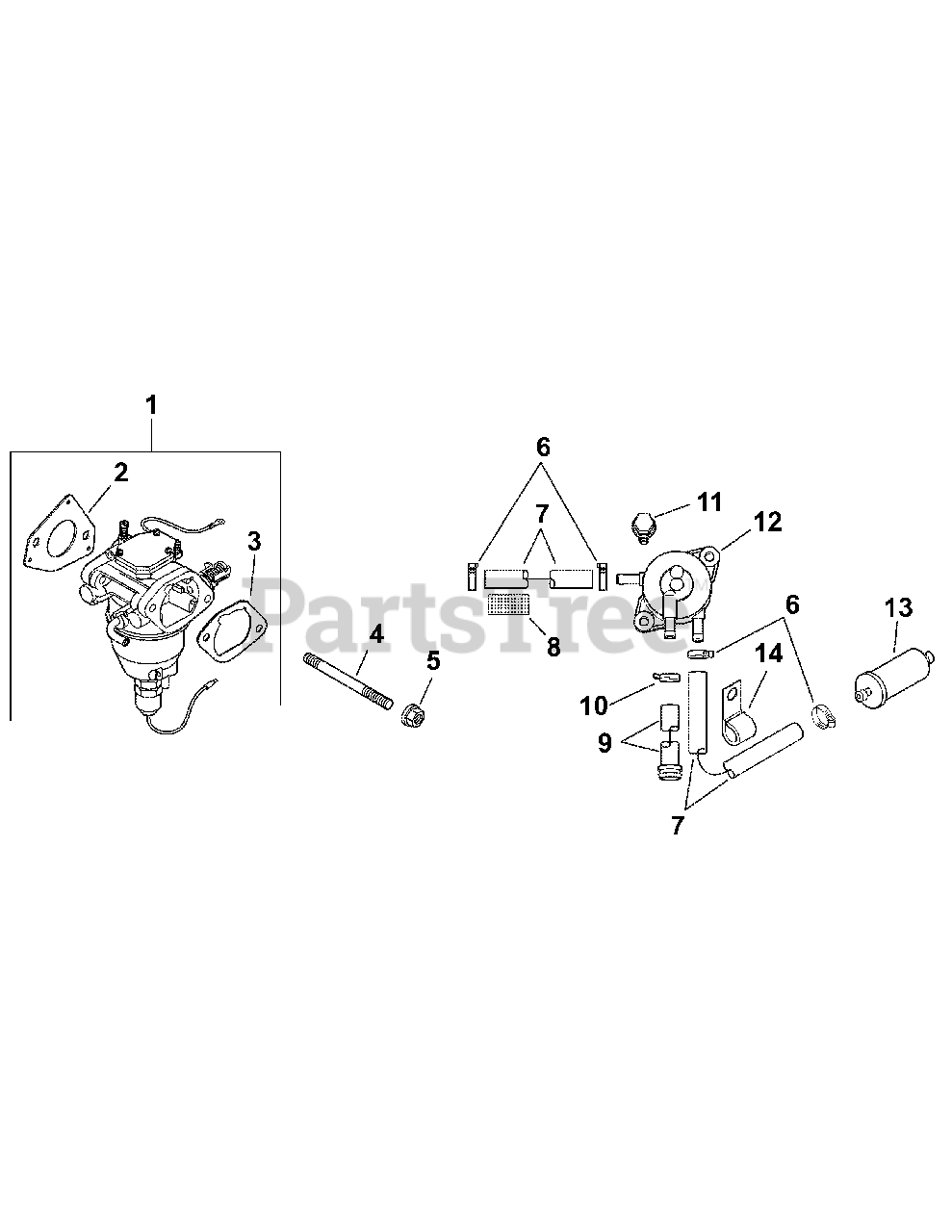

Z-Force 50 (17AF3AGP010) - Cub Cadet 50" Z-Force Zero-Turn Mower, Kohler SV820 Fuel System Parts Diagram

50" Z-Force Zero-Turn Mower, Kohler

SV820 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-32-853-07-S

KIT, CARBURETOR W/GASKETS
(Superseded to KH-32-853-11-S)

Note: (Includes Ref. No. 2 & 3)

$359.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-041-52-S

GASKET, CARBURETOR
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-041-14

GASKET, AIR CLEANER BASE

$

$

Not available

4

Cub Cadet KH-M-629105-S

STUD, M6X1.0X106
(Superseded to KH-25-072-25-S)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 7

0

6

Cub Cadet KH-25-237-14-S

CLAMP, SPRING HOSE 1/2"
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-25-111-34-S

LINE, FUEL
(Superseded to KH-25-111-81-S)

Note: (24"-CUT TO LENGTH)

$17.99

$

In Stock, Qty 6

0

8

Cub Cadet KH-25-431-10-S

SLEEVE, ANTI ABRASION
(Superseded to KH-25-431-12-S)

$10.99

$

In Stock, only 1 left!

0

9

Cub Cadet KH-32-326-02-S

KIT, FUEL PUMP HOSE W/CLAMP
(Superseded to KH-32-326-07-S)

Note: (Includes Ref. No 10)

$4.49

$

In Stock, Qty 6

0

10

Cub Cadet KH-25-237-01-S

CLAMP, HOSE

$3.49

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-086-12

SCREW, TAP M6X1.7X18

$

$

Not available

12

Cub Cadet KH-24-393-16

PUMP, FUEL

$

$

Not available

13

Cub Cadet KH-24-050-13-S

FILTER, FUEL
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

14

Cub Cadet KH-47-154-01-S

CLIP, CABLE

$5.49

$

In Stock, Qty 5

0
