Z-Force 50 (17AF3AGP010) - Cub Cadet 50" Z-Force Zero-Turn Mower, Kohler SV820 Blower Housing & Baffles Parts Diagram

50" Z-Force Zero-Turn Mower, Kohler

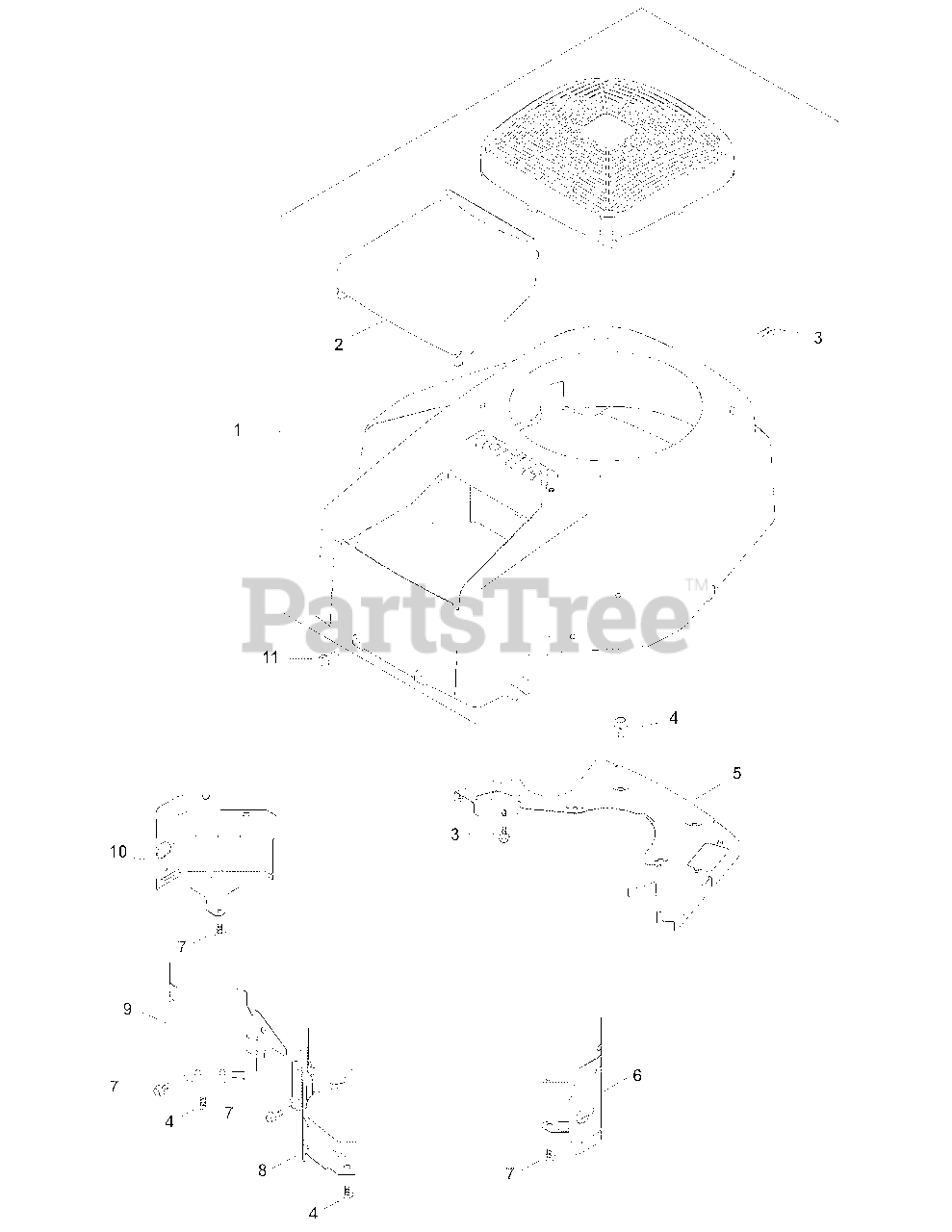

SV820 Blower Housing & Baffles Parts Diagram

  • Title
1

Cub Cadet KH-32-027-08-S

Kit, Blower Housing-Fixed Guard

Note: (Includes 2 & KH-41 037 10-S)

$

$

Not available

2

Cub Cadet KH-32-096-09-S

Cover, Air Cleaner (Black)

$26.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-M-545010

Screw, FLG THD FRM M5 x .8 x 10
(Superseded to KH-M-0545010)

$

$

Not available

4

Cub Cadet KH-M-545016-S

Screw, FLG THD FRM M5 x .8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-32-146-05-S

Kit, Backing Plate

$

$

Not available

6

Cub Cadet KH-32-063-12-S

Baffle, Cyl Barrel-#2 Side

$19.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-M-645016-S

Screw, FLG THD FRM M6 x 1.0 x 16

$3.99

$

In Stock, Qty 14

0

8

Cub Cadet KH-32-063-02-S

Baffle, Valley #2 Side

$

$

Not available

9

Cub Cadet KH-32-063-03-S

Baffle, Valley #1 Side
(Superseded to KH-24-063-93-S)

$

$

Not available

10

Cub Cadet KH-32-063-10-S

Baffle, CYL Barrel - #1 Side

$15.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-086-12

Screw, Tap M6 x 1.7 x 18

$

$

Not available

Cub Cadet KH-32-113-11-S

Decal, Fixed Guard

Note: (Not shown)

$5.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-41-037-10-S

Nameplate, Service

Note: (Not shown)

$8.99

$

In Stock, only 4 left!

0
