Z-Force 48 (53AA5B6V710) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler Fabricated Spindle Deck Assembly Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

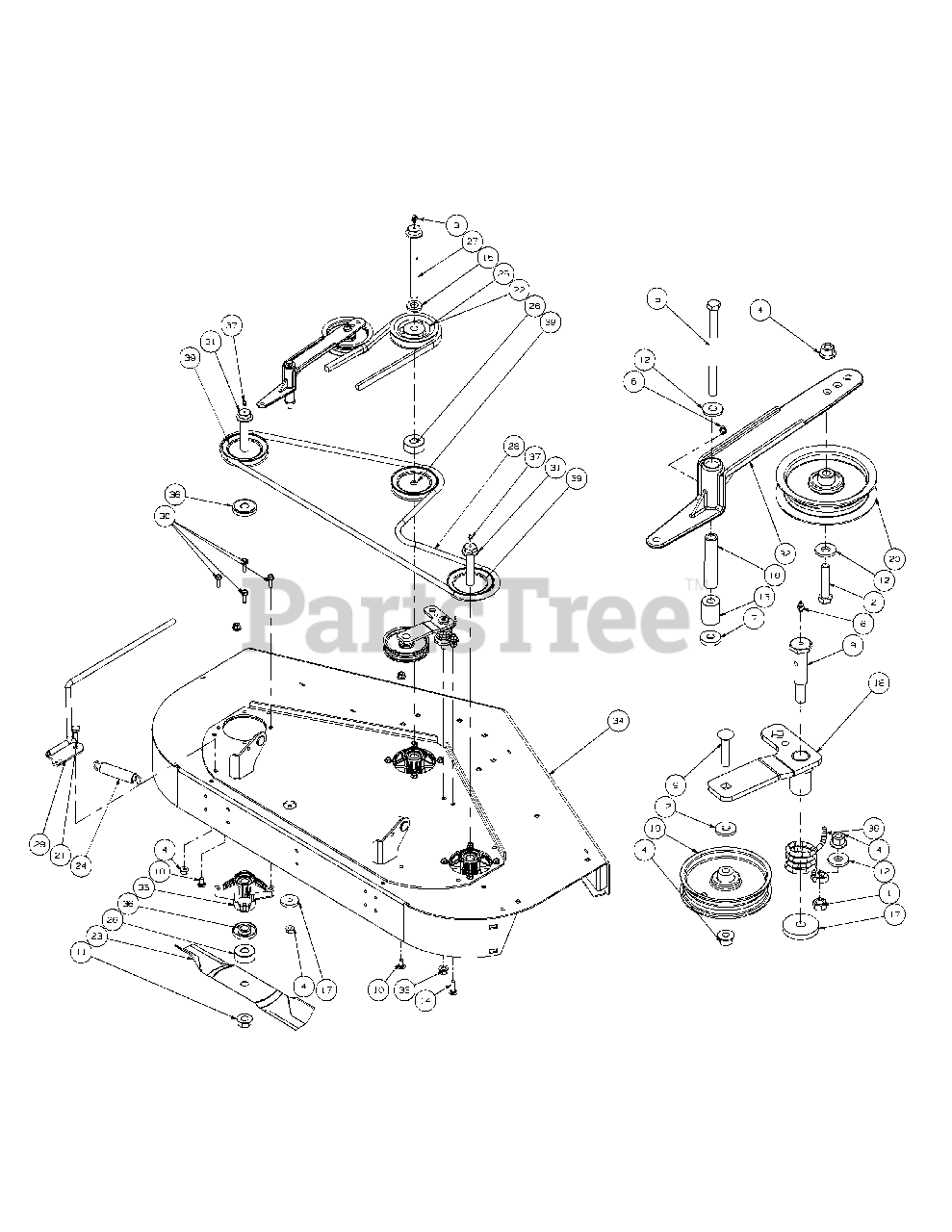

Fabricated Spindle Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 00006131

Hex Nut 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00008495

Hex Cap Screw, 3/8-16 x 1.75

$6.99

$

In Stock, Qty 8

0

3

Cub Cadet 00012226

Grease Fitting, 90
(Superseded to 737-3004)

$11.99

$

In Stock, only 4 left!

0

4

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00034167

Hex Cap Screw, 3/8-16 x 5.00

$

$

Not available

6

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 3 left!

0

8

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

9

Cub Cadet 01000364

Hex Carriage Screw, 3/8-16, 1.75
(Superseded to 710-0560)

$6.99

$

In Stock, Qty 12

0

10

Cub Cadet 01000372

Carriage Bolt 3/8-16 x .75
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01000380

Hex Flange Nut, 3/4-16
(Superseded to 712-3078)

$9.99

$

In Stock, Qty 20+

0

12

Cub Cadet 01000723

Flat Washer, .406 ID x 1.0 OD x .105
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 01001539

Spacer, .39 ID x .875 OD x 1.10

$22.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01002010

Carraige Screw, 3/8-16 x 1.25
(Superseded to 710-3034)

$3.99

$

In Stock, Qty 5

0

15

Cub Cadet 01003123

Spacer, .812 ID x .218
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, only 1 left!

0

17

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

18

Cub Cadet 01005737

Idler Arm Assembly, Deck Spindle

$108.99

$

In Stock, only 2 left!

0

18

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

$16.99

$

In Stock, only 2 left!

0

19

Cub Cadet 01004081

Flat Pulley
(Superseded to 02005077)

$35.99

$

In Stock, Qty 20+

0

20

Cub Cadet 01004101

Idler Pulley, 4.06 OD
(Superseded to 02004447)

$57.99

$

In Stock, Qty 20+

0

21

Cub Cadet 01004118

Shoulder Screw, .50 x .27, 3/8-16
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

22

Cub Cadet 01005202

V-Pulley, 4.75 OD

$126.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01005336

Hi-Lift Blade, 17.0
(Superseded to 942-04417)

$28.99

$

In Stock, Qty 20+

0

24

Cub Cadet 01009635

Extension Spring, .98 OD x 5.00

$19.99

$

In Stock, only 1 left!

0

25

Cub Cadet 01009787

V-Belt, B-Section
(Superseded to 01009787P)

$114.99

$

In Stock, only 2 left!

0

26

Cub Cadet 01010014

Spacer .760 ID x 2.00 OD x 0.790
(Superseded to 750-05184)

$37.99

$

In Stock, only 4 left!

0

27

Cub Cadet 02000071

Spindle Bolt, 3/4-16 x 7.155

$39.99

$

In Stock, only 4 left!

0

28

Cub Cadet 02000154

V-Belt, A-Section
(Superseded to 02000154P)

$89.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 02000416

Spring Tension Rod Assembly

$

$

Not available

30

Cub Cadet 02000762

Self Tapping Screw 5/16-18 x 1.00
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 02000819

Spindle Bolt 3/4-16 x 5.37

$36.99

$

In Stock, only 1 left!

0

32

Cub Cadet 02001855

Idler Arm Assembly, Top

$118.99

$

In Stock, only 3 left!

0

33

Cub Cadet 02000948

Nut, 7/16-20, FlangeLock
(Superseded to 712-04337)

$3.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 02001223

Deck Assembly, 48"

$

$

Not available

35

Cub Cadet 918-04426

Spindle Assembly

Note: Replaces 618-04394

$112.99

$

In Stock, Qty 20+

0

35

Cub Cadet 941-04091

Cup, Bearing
(Superseded to 941-04299)

Note: Not Shown

$6.99

$

In Stock, Qty 20+

0

35

Cub Cadet 941-04089

Bearing, Cone
(Superseded to 941-04298)

Note: Not Shown

$16.99

$

In Stock, Qty 20+

0

35

Cub Cadet 750-04409

Spacer, Bearing .78 x 1.0 x 1.0425

Note: Not Shown

$20.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 921-3018A

Seal, Oil 1.25 x 1.874 x .25

Note: Not Shown

$8.49

$

In Stock, Qty 20+

0

35

Cub Cadet 937-3000

Fitting, Lube

Note: If Equipped Not Shown

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 732-3067

Idler Torsion Spring

$23.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 748-3065A

Spindle Spacer

$13.99

$

In Stock, Qty 17

0

39

Cub Cadet 756-3089

Pulley

$36.99

$

Usually ships in 3-6 days

0
