Z-Force 48 (53AA5A7M712) - Cub Cadet 48" Z-Force Zero-Turn Mower, Briggs & Stratton Intek Deck Spindle Assembly Parts Diagram

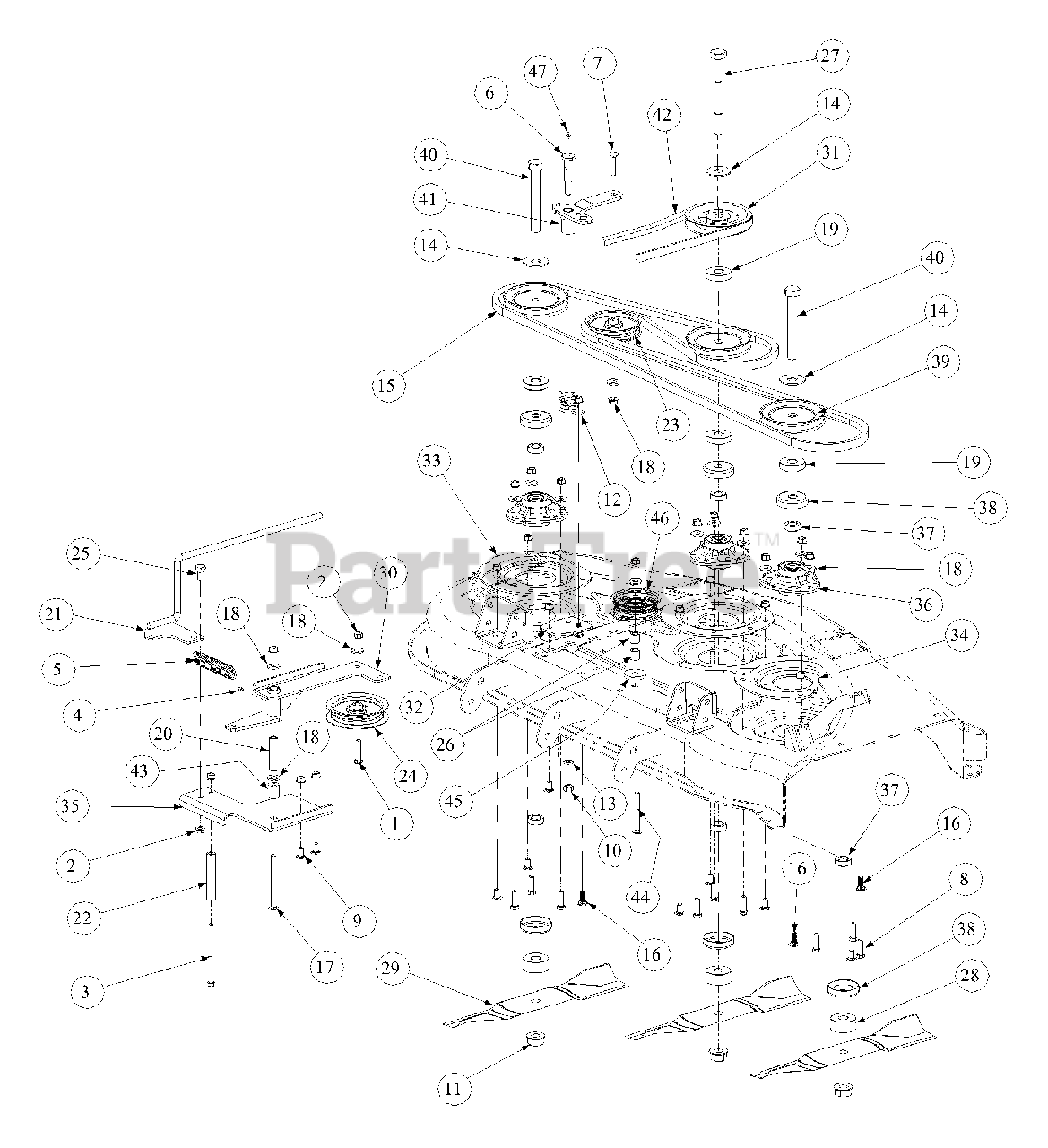

48" Z-Force Zero-Turn Mower, Briggs & Stratton Intek

Deck Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 00008495

Capscrew, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

2

Cub Cadet 00022560

Hex Nut, 3/8-16, Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 00034167

Capscrew, 3/8-16 x 5.00

$

$

Not available

4

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

5

Cub Cadet 01000199

Extension Spring, 1.0 OD x 5.00

$17.99

$

In Stock, only 4 left!

0

6

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

7

Cub Cadet 01000364

Hex Carriage Screw, 3/8-16 x 1.75
(Superseded to 710-0560)

$6.99

$

In Stock, Qty 11

0

8

Cub Cadet 01000369

Capscrew, 3/8-16 x 1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

9

Cub Cadet 01000372

Carriage Bolt 3/8-16 x .75
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 01000379

Hex Nut, 7/16-14
(Superseded to 912-3019)

$6.99

$

In Stock, only 1 left!

0

11

Cub Cadet 01000380

Nut, 3/4-16, Hex Flange
(Superseded to 712-3078)

$9.99

$

In Stock, Qty 20+

0

12

Cub Cadet 01000387

Idler Spring
(Superseded to 932-3009)

$24.99

$

In Stock, only 4 left!

0

13

Cub Cadet 01000389

Lock Washer, 7/16
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet 01000392

Flat Washer, .781 ID x 2.00 OD x .105
(Superseded to 736-3014)

$4.49

$

In Stock, only 4 left!

0

15

Cub Cadet 01000399

Belt, A Section x 107.3

$62.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

17

Cub Cadet 01009906

Carriage Bolt, 3/8-16 x 5.0

$5.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01000723

Flat Washer, .406 ID x 1.0 OD x .105
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 01002564

Spacer, .76 ID x 2.00 OD x .477

$20.99

$

In Stock, only 2 left!

0

20

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, only 1 left!

0

21

Cub Cadet 01005692

Spring Tension Rod Assembly

$

$

Not available

22

Cub Cadet 01004065

Spacer, .405 x .75 x 3.875

$

$

Not available

23

Cub Cadet 01004081

Flat Pulley
(Superseded to 02005077)

$35.99

$

In Stock, Qty 20+

0

24

Cub Cadet 01004101

Idler Pulley, 4.06 OD
(Superseded to 02004447)

$57.99

$

In Stock, Qty 20+

0

25

Cub Cadet 01004118

Shoulder Screw, .50 x .27 Lg., 3/8-16
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

26

Cub Cadet 01004129

Spacer, .385 ID x .75 OD x .875

$28.99

$

In Stock, only 1 left!

0

27

Cub Cadet 01004185

Capscrew, 3/4-16 x 6.50

$41.99

$

In Stock, only 3 left!

0

28

Cub Cadet 01004415

Spacer, .760 ID x 2.00 OD x 0.9

$40.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01004772

Hi-Lift Blade, 16.5, 0.756 ID

$60.99

$

In Stock, Qty 5

0

30

Cub Cadet 01005103

Idler Arm Assembly, Flat Top Bearing
(Superseded to 01005733P)

$

$

Not available

Cub Cadet 01000308

Bearing Sleeve
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

31

Cub Cadet 01005202

V-Pulley, 4.75 OD

$126.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 01006469

Idler Arm Mounting Plate

$

$

Not available

33

Cub Cadet 01006440

Spindle Support Plate

$

$

Not available

34

Cub Cadet 01006442

RH Spindle Support PLate

$

$

Not available

35

Cub Cadet 01006468

Idler Arm Mounting Bracket

$

$

Not available

36

Cub Cadet 01006470

Housing Assembly
(Superseded to 903-0691P)

$183.99

$

In Stock, only 3 left!

0

37

Cub Cadet 01006533

Spacer, .76 ID x 1.25 OD x .44

$11.99

$

In Stock, Qty 7

0

38

Cub Cadet 01006534

Spindle Spacer
(Superseded to 903-1387)

$24.99

$

In Stock, Qty 11

0

39

Cub Cadet 01006535

V-Pulley, 4.9 OD
(Superseded to 956-1209)

$60.99

$

In Stock, only 3 left!

0

40

Cub Cadet 01006590

Capscrew, 3/4-16 x 5.50

$

$

Not available

41

Cub Cadet 01006760

Idler Arm Assembly, Deck Spindle

$

$

Not available

Cub Cadet 01000308

Bearing Sleeve
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

42

Cub Cadet 00050441

V-Belt, B-Section

$59.99

$

In Stock, only 3 left!

0

43

Cub Cadet 01001539

Spacer, .39 ID x .63 OD x 1.442

$22.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 01002750

Carriage Bolt, 3/8-16 x 3.5
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 11

0

45

Cub Cadet 01005314

Washer, 7/16 ID x 1.75 OD x .25
(Superseded to 736-04131)

$15.99

$

In Stock, only 1 left!

0

46

Cub Cadet 756-0542

FLAT IDLER W/FLANGES 3.5 OD

$78.99

$

In Stock, only 1 left!

0

47

Cub Cadet 00012226

Grease Fitting, 1/4-28, 90 degree
(Superseded to 737-3004)

$11.99

$

In Stock, Qty 6

0
