Z-Force 48 (53AA5A7M710) - Cub Cadet 48" Z-Force Zero-Turn Mower, Briggs & Stratton Intek Engine Starter & Flywheel Parts Diagram

48" Z-Force Zero-Turn Mower, Briggs & Stratton Intek

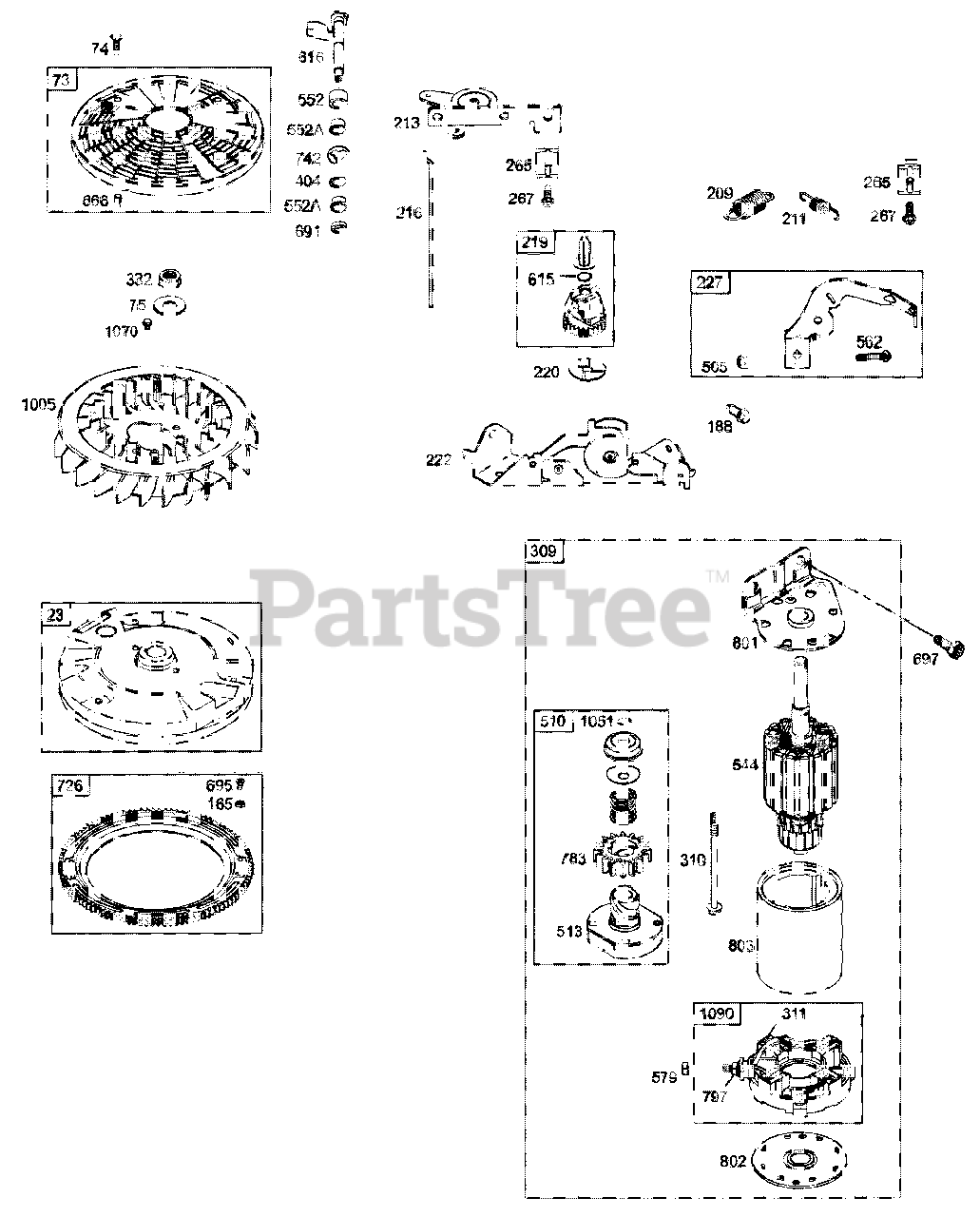

Engine Starter & Flywheel Parts Diagram

  • Title

23

Cub Cadet BS-691053

Flywheel
(Superseded to BS-84004658)

$255.99

$

Usually ships in 2-12 days

0

73

Cub Cadet BS-494439

Screen-Rotating

$53.99

$

In Stock, Qty 10

0

74

Cub Cadet BS-698425

Screw (Rotating Screen)

$3.49

$

In Stock, Qty 20+

0

75

Cub Cadet BS-691056

Washer (Flywheel)

$9.49

$

Usually ships in 2-12 days

0

165

Cub Cadet BS-693148

Nut (Ring Gear)

$3.49

$

In Stock, only 4 left!

0

188

Cub Cadet BS-691003

Screw (Control Bracket)

$3.49

$

In Stock, Qty 9

0

209

Cub Cadet BS-698071

Spring-Governor

$10.99

$

Usually ships in 2-12 days

0

211

Cub Cadet BS-691019

Spring-Governed Idle

$4.99

$

In Stock, only 1 left!

0

213

Cub Cadet BS-691021

Bracket-Choke Control

$10.99

$

In Stock, only 3 left!

0

216

Cub Cadet BS-691022

Link-Choke

$8.49

$

In Stock, only 1 left!

0

219

Cub Cadet BS-698231

Gear-Governor
(Superseded to BS-793338)

$27.99

$

In Stock, Qty 20+

0

220

Cub Cadet BS-690412

Washer (Governor Gear)

$

$

Not available

222

Cub Cadet BS-698761

Bracket-Control
(Superseded to BS-592661)

$61.99

$

Usually ships in 2-12 days

0

227

Cub Cadet BS-691048

Lever-Governor Control
(Superseded to BS-792492)

$23.99

$

In Stock, Qty 9

0

265

Cub Cadet BS-691024

Clamp-Casing

$3.99

$

In Stock, Qty 7

0

267

Cub Cadet BS-94694

Screw

$

$

Not available

309

Cub Cadet BS-497595

Motor-Starter

$110.99

$

In Stock, Qty 20+

0

310

Cub Cadet BS-690323

Bolt (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

Cub Cadet BS-497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

332

Cub Cadet BS-691059

Nut (Flywheel)

$4.49

$

In Stock, only 1 left!

0

404

Cub Cadet BS-690442

Washer (Governor Crank)

$3.49

$

In Stock, Qty 5

0

505

Cub Cadet BS-691029

Nut (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

510

Cub Cadet BS-696541

Drive-Starter

$

$

Not available

513

Cub Cadet BS-692024

Clutch-Drive

$21.99

$

In Stock, only 3 left!

0

544

Cub Cadet BS-692034

Armature-Starter

$82.99

$

Usually ships in 2-12 days

0

552

Cub Cadet BS-690552

Bushing-Governor Crank

$8.49

$

In Stock, Qty 9

0

552A

Cub Cadet BS-690553

Bushing-Governor Crank

$7.49

$

In Stock, Qty 9

0

562

Cub Cadet BS-690311

Bolt (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

579

Cub Cadet BS-691029

Nut (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

615

Cub Cadet BS-698290

Shaft-Governor Retainer

$4.49

$

In Stock, Qty 9

0

616

Cub Cadet BS-691045

Crank-Governor

$19.99

$

In Stock, only 1 left!

0

668

Cub Cadet BS-691215

Spacer

$7.49

$

In Stock, only 1 left!

0

691

Cub Cadet BS-690657

Seal-Governor Shaft
(Superseded to BS-790574)

$5.99

$

In Stock, Qty 20+

0

695

Cub Cadet BS-693149

Screw (Ring Gear)

$3.99

$

In Stock, only 4 left!

0

697

Cub Cadet BS-690372

Screw (Drive Cap)
(Superseded to BS-791680)

$3.99

$

In Stock, Qty 6

0

726

Cub Cadet BS-499612

Gear-Ring

$71.99

$

In Stock, Qty 20+

0

742

Cub Cadet BS-690328

Retainer-E Ring

$4.49

$

In Stock, Qty 6

0

783

Cub Cadet BS-693058

Gear-Pinion
(Superseded to BS-695708)

$6.99

$

In Stock, only 4 left!

0

797

Cub Cadet BS-693167

Nut (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Cub Cadet BS-691283

Cap-Drive

$83.99

$

Usually ships in 2-12 days

0

802

Cub Cadet BS-691286

Cap-End

$26.99

$

Usually ships in 2-12 days

0

803

Cub Cadet BS-693757

Housing-Starter

$25.99

$

Usually ships in 2-12 days

0

1005

Cub Cadet BS-499603

Fan-Flywheel
(Superseded to BS-790692)

$

$

Not available

1051

Cub Cadet BS-691265

Ring-Retaining

$5.49

$

In Stock, Qty 7

0

1070

Cub Cadet BS-691058

Screw (Flywheel Fan)

$5.99

$

In Stock, Qty 11

0

1090

Cub Cadet BS-691293

Retainer-Brush

$29.99

$

In Stock, Qty 6

0

N/S

Cub Cadet 01009769P

Complete Engine
(Superseded to BS-44S977-0032)

$2198.99

$

Usually ships in 3-6 days

0

N/S

Cub Cadet BS-692714

Short Block
(Superseded to BS-698172)

$

$

Not available
