Z-Force 48 (53AA5A7M710) - Cub Cadet 48" Z-Force Zero-Turn Mower, Briggs & Stratton Intek Deck Assembly Parts Diagram

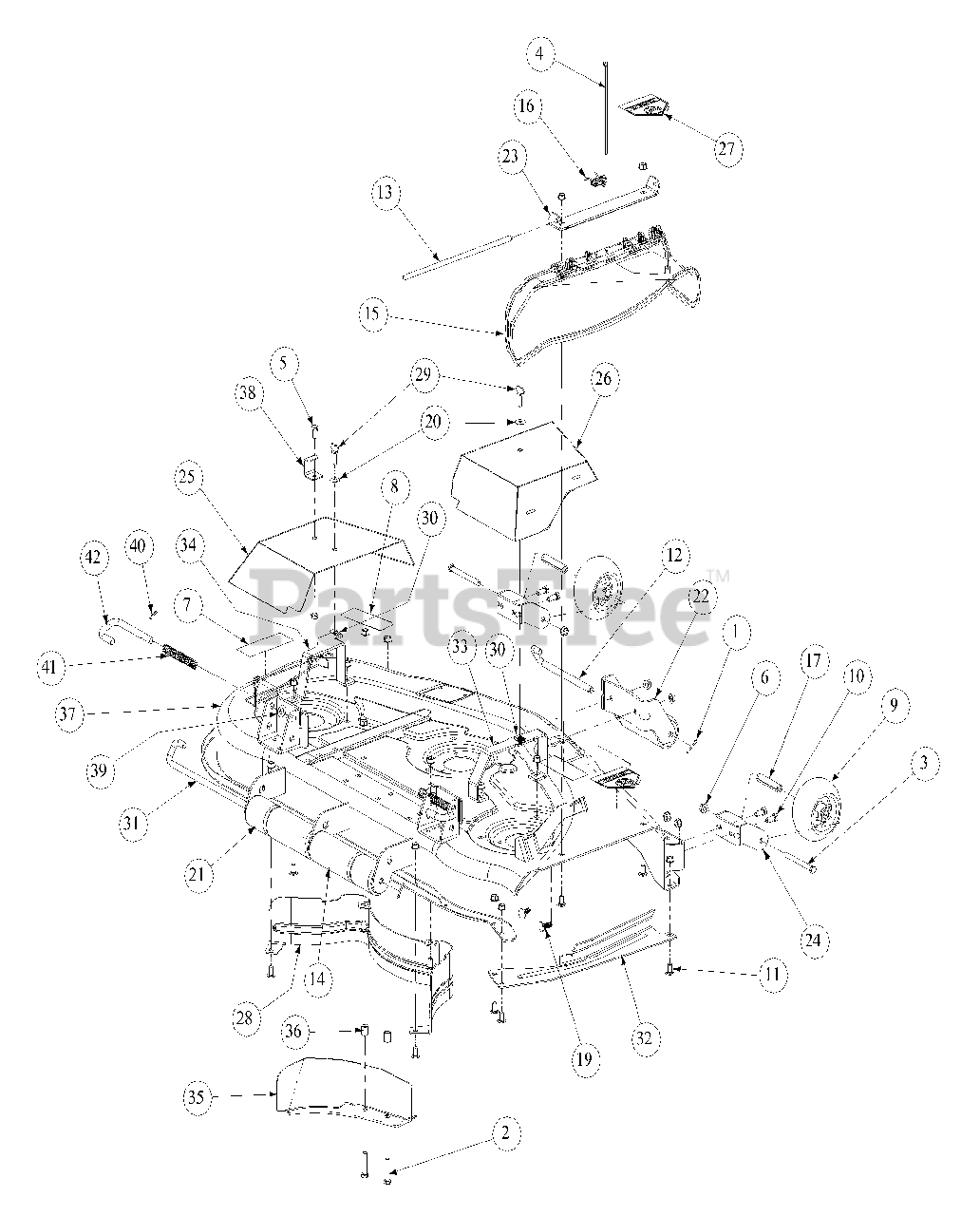

48" Z-Force Zero-Turn Mower, Briggs & Stratton Intek

Deck Assembly Parts Diagram

  • Title
1

Cub Cadet 00003107

Cotter Pin .125 Dia x 1.0
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00008495

Capscrew, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

3

Cub Cadet 00011925

Capscrew, 3/8-16 x 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

4

Cub Cadet 00012470

Cable Tie, 3/16 x .05 x 7.4
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet 00013406

Hex Cap Screw 5/16-18 x .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00022560

Hex Nut, 3/8-16, Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00030633

Decal, Rotating Blade

$

$

Not available

8

Cub Cadet 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01000343

Complete Wheel, 5.00 Dia.
(Superseded to 634-3159)

$34.99

$

In Stock, Qty 20+

0

10

Cub Cadet 01000368

Hex Cap Screw, 3/8-16 x .88
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

11

Cub Cadet 01000372

Carriage Bolt 3/8-16 x .75
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01000375

Roller Pin 1/2 x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

13

Cub Cadet 01009102

Hinge Pin, .375 x 14.06
(Superseded to 711-1762)

$18.99

$

In Stock, only 1 left!

0

14

Cub Cadet 01000385

Front Roller
(Superseded to 731-3005)

$28.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01009705

Chute Deflector
(Superseded to 01009705P)

$42.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01003253

Torsion Spring
(Superseded to 732-04797)

$11.99

$

In Stock, only 4 left!

0

17

Cub Cadet 01000398

Wheel Spacer
(Superseded to 750-3193)

$18.99

$

In Stock, Qty 20+

0

18

Cub Cadet 01000635

Lock Nut 5/16-18 Hex Flange
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

20

Cub Cadet 01000960

Washer, .325 x .930 x .045
(Superseded to 936-0425)

$

$

Not available

21

Cub Cadet 01001169

Grass Catcher Roller

$24.99

$

In Stock, only 3 left!

0

22

Cub Cadet 01006574

Front Roller Bracket
(Superseded to 703-2091A-0637)

$76.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01006575

Chute Mounting Bracket
(Superseded to 783-04470)

$33.99

$

In Stock, only 1 left!

0

24

Cub Cadet 01006576

Castor Bracket
(Superseded to 703-2410-0498)

$

$

Not available

25

Cub Cadet 01006577

Left Hand Belt Cover

$

$

Not available

26

Cub Cadet 01006578

Right Hand Belt Cover

$

$

Not available

27

Cub Cadet 01002166

Decal, Danger Hands & Feet

$12.99

$

Usually ships in 3-6 days

0

28

$

$

Not available

29

Cub Cadet 01003560

Thumb Screw, 5/16-18 x 1.0
(Superseded to 710-3232)

$9.99

$

In Stock, only 2 left!

0

30

Cub Cadet 01003563

U-Nut, 5/16-18
(Superseded to 926-0211)

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 01004751

Roller Rod
(Superseded to 02002798)

$79.99

$

In Stock, only 4 left!

0

32

Cub Cadet 01006583

Finger Guard
(Superseded to 703-3511B-0637)

$69.99

$

In Stock, Qty 20+

0

33

Cub Cadet 01006490

Right Hand Belt Cover Support Bracket

$

$

Not available

34

Cub Cadet 01006492

Left Hand Belt Cover Support Bracket

$

$

Not available

35

Cub Cadet 01006530

Deck Baffle

$

$

Not available

36

Cub Cadet 01006573

Spacer, .385 ID x .75 OD x .875
(Superseded to 750-0639)

$3.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 01009780

48" Deck Weldment

$

$

Not available

38

Cub Cadet 01004863

Tension Rod Stop Bracket
(Superseded to 01004109)

$11.99

$

In Stock, only 1 left!

0

39

Cub Cadet 01000930

Washer, .508 ID x 1.00 OD x .020
(Superseded to 936-0369)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 715-3003

Heavy Duty Spring Pin

$6.99

$

In Stock, Qty 7

0

41

Cub Cadet 732-0802

Compression Spring, .63 OD x 6.3 Lg

$4.49

$

In Stock, only 1 left!

0

42

Cub Cadet 747-3013

Support Pin

$22.99

$

In Stock, only 2 left!

0
