Z-Force 48 (53AA5A7M710) - Cub Cadet 48" Z-Force Zero-Turn Mower, Briggs & Stratton Intek Briggs Engine Assembly 22HP Parts Diagram

48" Z-Force Zero-Turn Mower, Briggs & Stratton Intek

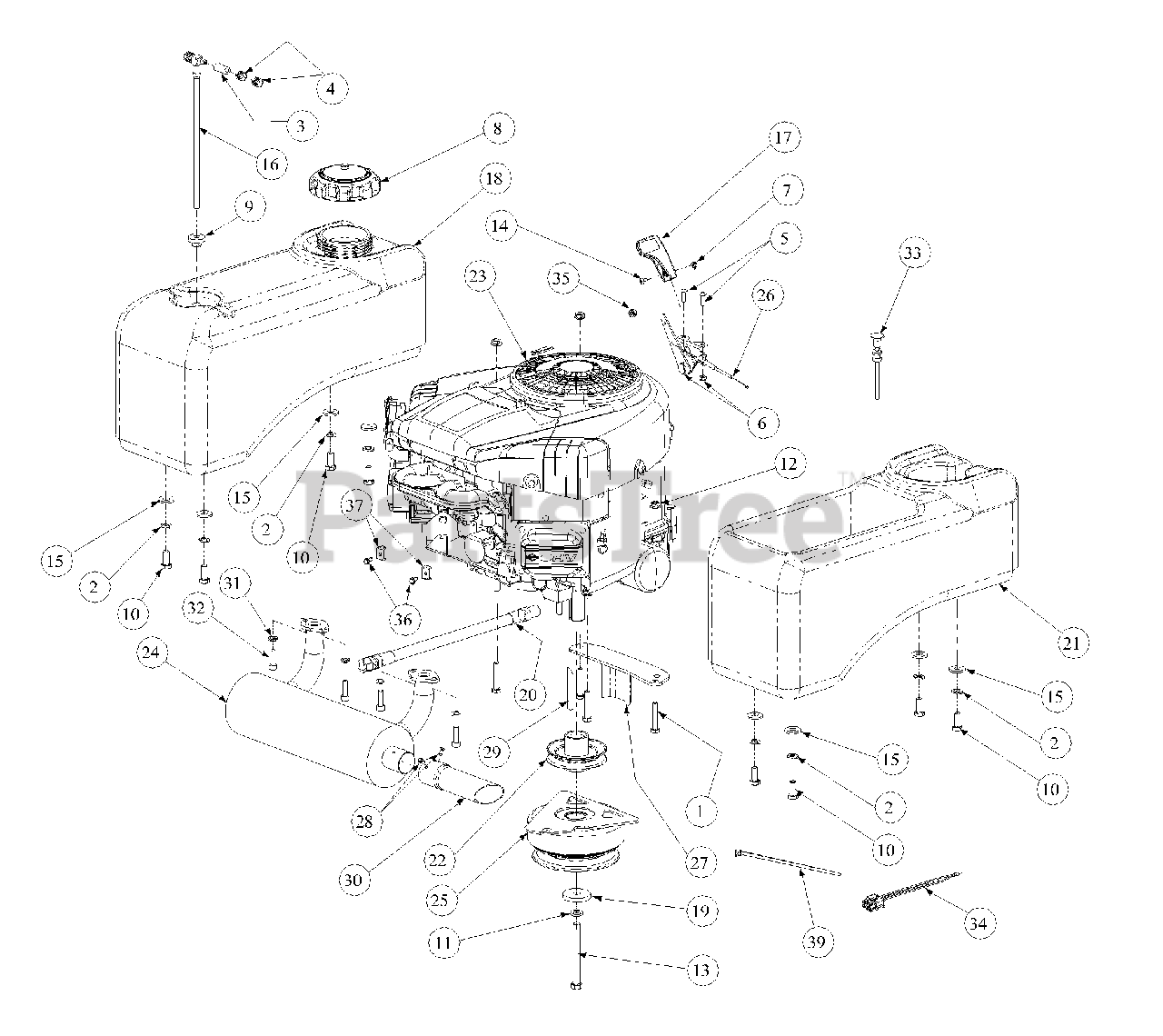

Briggs Engine Assembly 22HP Parts Diagram

  • Title
1

Cub Cadet 00006129

Hex Head Cap Screw, 5/16-18 x 1-3/4

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012157

Lock Washer, 3/8 Zinc
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

3

Hose, 1/4" Fuel Line

Note: purchase locally

$

$

Not available

4

Cub Cadet 00012235

Clamp, Union
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

5

Cub Cadet 01008531

Self Tapping Screw, 10-32 x 1/2
(Superseded to 01008531P)

$5.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

7

Cub Cadet 00060056

Nut, w/ Star Washer

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 01000069

Fuel Cap
(Superseded to 951-3124E)

$36.99

$

In Stock, only 1 left!

0

9

Cub Cadet 01000281

Fuel Tank Groment
(Superseded to 02002253)

$4.99

$

In Stock, only 2 left!

0

10

Cub Cadet 01000368

Hex Cap Screw, 3/8-16 x .88
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

11

Cub Cadet 01000389

Lock Washer, 7/16
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 01000635

Lock Nut, Hex Flange, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 01000813

Hex Cap Screw, 7/16-20 x 3.0
(Superseded to 710-0510)

$11.99

$

In Stock, only 1 left!

0

14

Cub Cadet 01000721

Machine Screw, 8-32 x .375
(Superseded to 710-3217)

$6.99

$

In Stock, Qty 7

0

15

Cub Cadet 01000723

Flat Washer, .406 ID x 1.0 OD x .105
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 01003116

Fuel Pickup Fitting

$58.99

$

In Stock, only 4 left!

0

17

Cub Cadet 01004004

Throttle Control Knob
(Superseded to 731-04914)

$13.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01004350

Fuel Tank

$

$

Not available

19

Cub Cadet 01005314

Flat Washer, 7/16 ID x 1.75 OD x .250
(Superseded to 736-04131)

$15.99

$

In Stock, only 1 left!

0

20

Cub Cadet 01003283

Oil Drain Extension Hose

$84.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 737-0103

Oil Drain Plug
(Superseded to 737-04202)

Note: not shown

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01008138

Utility Bin
(Superseded to 01008138P)

$198.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01008808

Electric PTO Engine Pulley
(Superseded to 02003417)

$62.99

$

In Stock, Qty 9

0

23

Cub Cadet 01009769

22HP Briggs Engine
(Superseded to BS-44S977-0032)

$2198.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01008902

Briggs Muffler
(Superseded to 01008902P)

$

$

Not available

25

Cub Cadet 01008434

Ogura DX11 Electric Clutch
(Superseded to 759-05064)

$514.99

$

In Stock, only 1 left!

0

26

Cub Cadet 01003272

Throttle Control Cable
(Superseded to 01003272P)

$43.99

$

In Stock, only 1 left!

0

27

Cub Cadet 01008640

Clutch Retainer Assembly

$

$

Not available

28

Cub Cadet 01000811

Screw, 8-32 x .375, Hex Washer
(Superseded to 710-0148)

$4.49

$

In Stock, Qty 16

0

29

Cub Cadet 01007533

Key, 1/4 x 1/4 x 2.75

$11.99

$

In Stock, only 1 left!

0

30

Cub Cadet 01008623

Exhaust Pipe

$

$

Not available

31

Cub Cadet 00012168

Lock Washer, 5/16

$

$

Not available

32

Cub Cadet 01009142

Socket Head Cap Screw, 5/16-18 x 1.00

$

$

Not available

33

Cub Cadet 01004020

Choke Cable
(Superseded to 02003479P)

$42.99

$

In Stock, only 4 left!

0

34

Cub Cadet 01009826

Harness Adaptor
(Superseded to 01009826P)

$

$

Not available

35

Cub Cadet 00023041

Starter Side Lock Nut 1/4-20

$

$

Not available

36

Cub Cadet 01008531

Screw, #10-32 x 0.500
(Superseded to 01008531P)

$5.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 01002070

Throttle Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

38

Cub Cadet 01001811

Hour Meter Harness
(Superseded to 929-04195)

$8.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 00012470

Cable Tie, 3/16 x .05 x 7.4
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0
