Z-Force 48 (17BF3AGV010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler (2012) Lift Assembly Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

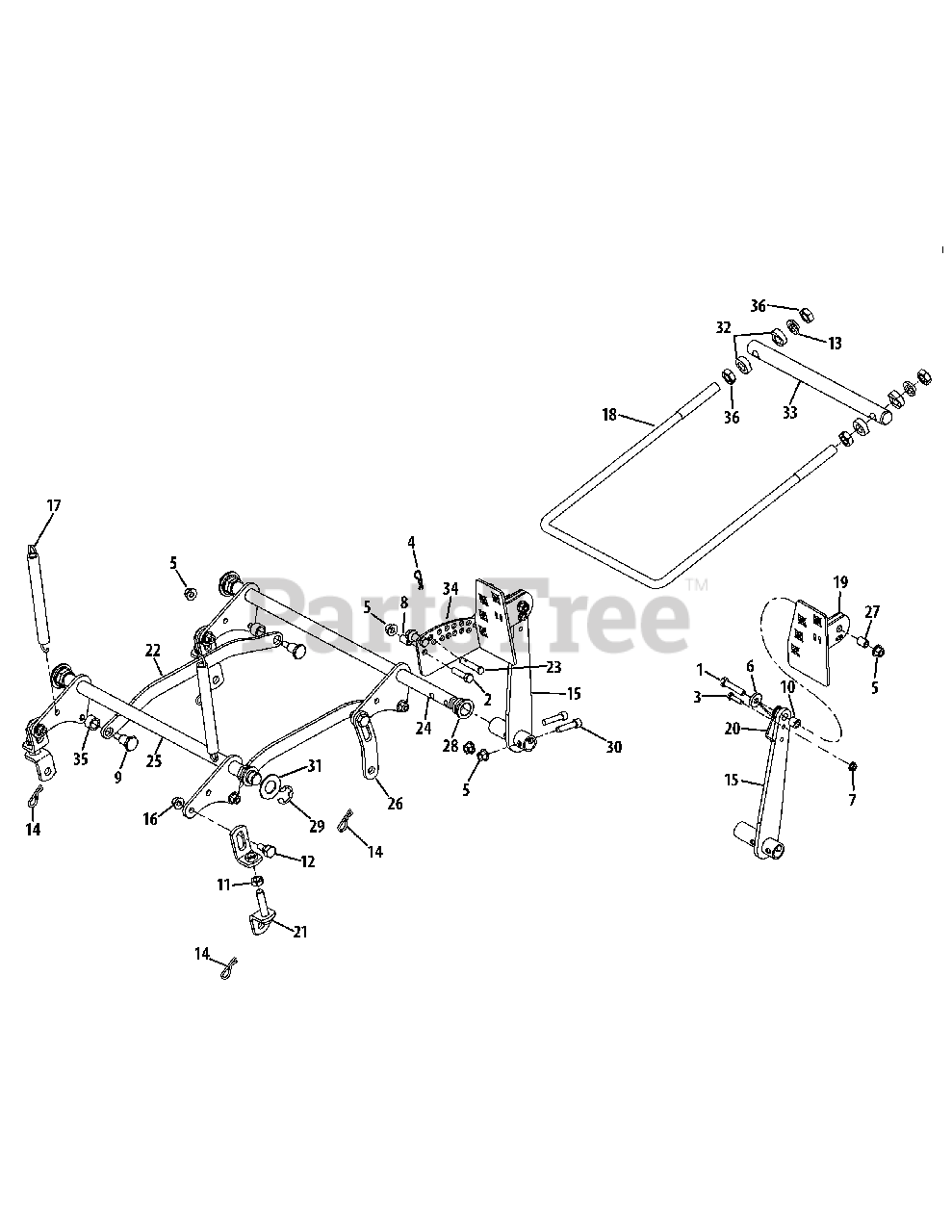

Lift Assembly Parts Diagram

  • Title

1

Cub Cadet 00008495

Hex Screw, 3/8-16 x 1.75

$6.99

$

In Stock, Qty 8

0

2

Cub Cadet 00011438

Hex Screw, 3/8-16 x 1.50
(Superseded to 710-06021)

$3.99

$

In Stock, only 3 left!

0

3

Cub Cadet 00013416

Hex Screw, 1/4-20 x 1.00
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

4

Cub Cadet 00021956

Hair Pin, 3/8 x 1.562 x .080
(Superseded to 914-04023)

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 00022560

Flange Counterlock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00083192

Washer, .390 x 1.00 x .180
(Superseded to 736-0258)

$4.49

$

In Stock, only 3 left!

0

7

Cub Cadet 912-3027

Flange Toplock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 01003468

Spacer, .375 x .500 x .750

$

$

Not available

9

Cub Cadet 01003536

Shoulder Bolt, 3/8-16 x .625 x .830
(Superseded to 738-05007)

$8.99

$

In Stock, only 4 left!

0

10

Cub Cadet 01007312

Spacer, .385 x .625 x .500

$22.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01008658

Jam Nut, 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

12

Cub Cadet 02000393

Shoulder Bolt, 3/8-16 x .56 x .27
(Superseded to 738-05008)

$8.49

$

In Stock, only 3 left!

0

13

Cub Cadet 02000671

Lock Washer, .633 x 1.07 x .161
(Superseded to 936-0158)

$4.49

$

In Stock, Qty 11

0

14

Cub Cadet 02000673

Hair Pin, 1/2 x 1.625 x .125
(Superseded to 914-0209)

$3.99

$

In Stock, only 2 left!

0

15

Cub Cadet 02002374

Foot Lift Pivot Assembly

Variations

Cub Cadet 02002374-0637

USE 02002374 PIVOT ASM - FOOT - POWDER BLACK (0637)

$103.99

$

Usually ships in 3-6 days

0

$103.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002382

Adjustable Deck Lift Bracket

$13.99

$

In Stock, only 2 left!

0

17

Cub Cadet 02002629

Extension Spring, .75 x 7.89 x .14

$18.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02002879

Front Lift Rod

$38.99

$

In Stock, only 1 left!

0

19

Cub Cadet 02002880-0637

Foot Pedal Assembly

$

$

Not available

20

Cub Cadet 02002882

Torsion Spring, .900 x 2.3 x .09

$10.99

$

In Stock, only 1 left!

0

21

Cub Cadet 02002890

Lower Bracket Assembly

$36.99

$

In Stock, only 2 left!

0

22

Cub Cadet 02002893

Lift Connecting Link

$27.99

$

In Stock, only 1 left!

0

23

Cub Cadet 02002907

Clevis Pin, 3/8 x 2.05
(Superseded to 711-06098)

$4.49

$

In Stock, only 3 left!

0

24

Cub Cadet 02002915

Front Shaft Assembly

$

$

Not available

25

Cub Cadet 02002916

Rear Shaft Assembly

$114.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02002979

Curved Link Plate

$22.99

$

In Stock, only 2 left!

0

27

Cub Cadet 02003436

Spacer, .380 x .500 x .667

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02003685

Hex Flange Bearing, 7/8

$9.49

$

In Stock, only 2 left!

0

29

Cub Cadet 02003716

Retaining Clip, .675
(Superseded to 716-0136)

$8.99

$

In Stock, only 2 left!

0

30

Cub Cadet 02003717

Sockt Cap Screw, 3/8-16 x 1.50
(Superseded to 710-06024)

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 02003720

Washer, .940 x 1.75 x .110
(Superseded to 736-05011)

$

$

Not available

32

Cub Cadet 02003751

Spacer, .635 x 1.2 x .41
(Superseded to 750-05621)

$4.49

$

In Stock, Qty 6

0

33

Cub Cadet 02004227

Trailing Link Pivot Rod

$56.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 02004694-0637

Index Plate

$

$

Not available

35

Cub Cadet 02005535

Spacer, 632 x .877 x .548

$

$

Not available

36

Cub Cadet 912-3015

Jam Nut, 5/8-11
(Superseded to 712-3015)

$4.99

$

In Stock, only 2 left!

0
