Z-Force 48 (17BF3AGV010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler (2011) Front Caster & Tire Assembly Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

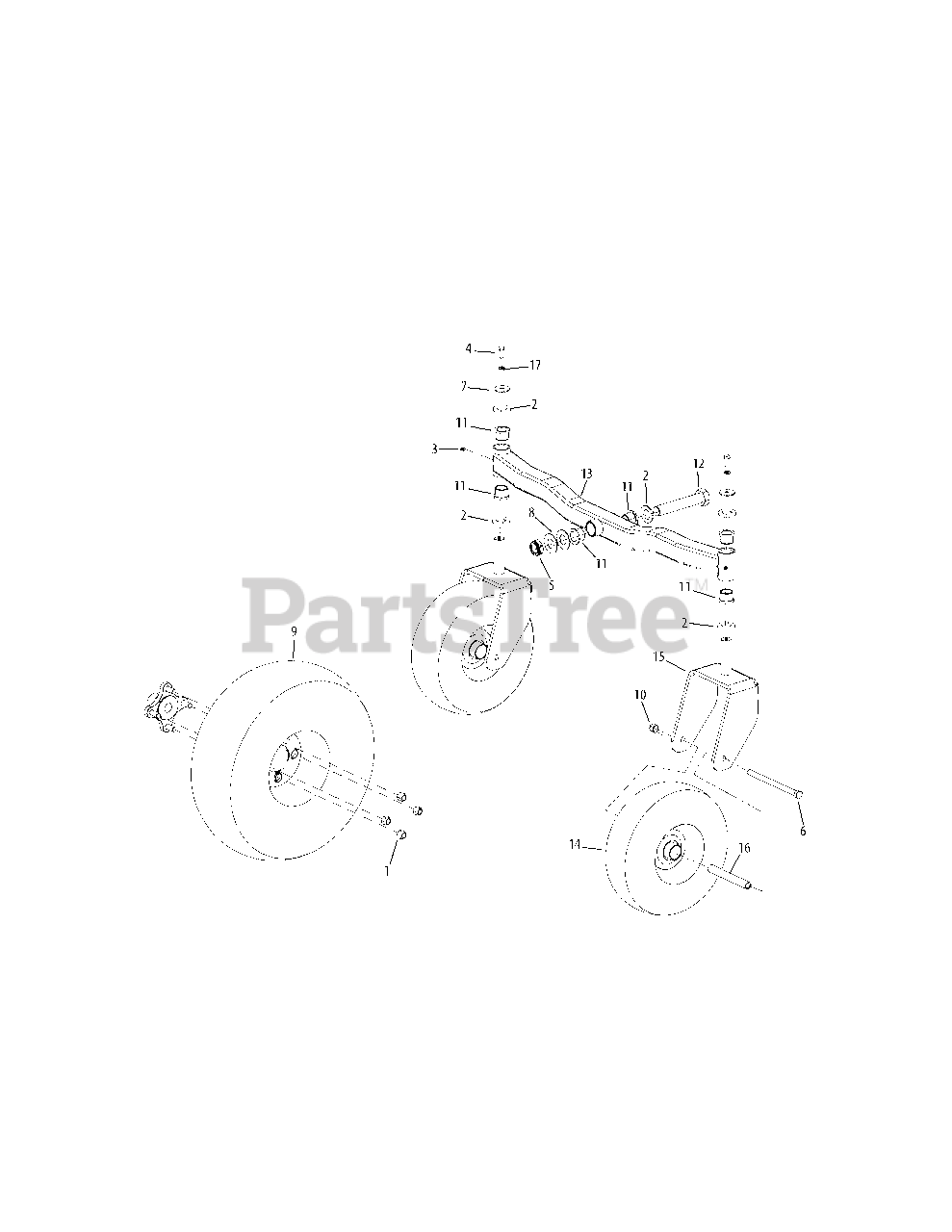

Front Caster & Tire Assembly Parts Diagram

  • Title

1

Cub Cadet 00012187

Lug Nut, 1/2-20
(Superseded to 712-04311)

$3.99

$

In Stock, Qty 8

0

2

Cub Cadet 00023822

Washer, 1.00 x 1.75 x .172
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

3

Cub Cadet 00060078

Grease Fitting, 1/4-28
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

4

Cub Cadet 710-3001

Hex Screw, 3/8-16 x .880

$7.49

$

In Stock, Qty 9

0

5

Cub Cadet 712-3075

Jam Nut, 1-14
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

6

Cub Cadet 01006961

Hex Screw, 1/2-20 x 7.50
(Superseded to 710-05385)

$11.99

$

In Stock, Qty 11

0

7

Cub Cadet 01009253

Washer, .390 x 1.50 x .122
(Superseded to 936-0227)

$

$

Not available

8

Cub Cadet 02000588

Washer, 1.00 x :2.00 x .075
(Superseded to 736-04605)

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 634-04495

Wheel Assy., 20 x 8-10 (48" Deck)

$448.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 02002299

Nylock Nut, 1/2-20
(Superseded to 712-04316)

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 741-04488

Flange Bearing, 1.001 x 1.25

$9.49

$

In Stock, only 4 left!

0

12

Cub Cadet 02003804

Hex Screw, 1-14 x 5.5
(Superseded to 710-06026)

$46.99

$

In Stock, only 1 left!

0

13

Cub Cadet 02004600-0637

Front Axle Weldment

$131.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02004999

Wheel Assembly, 13 x 5-6

$148.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 02005001-0637

Castor Wheel Mount Bracket Assy.

$105.99

$

In Stock, only 2 left!

0

16

Cub Cadet 750-04775A

Spacer, .51 x .75 x 5.825

$28.99

$

In Stock, Qty 20+

0

17

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0
