Z-Force 48 (17BF3AGV010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler (2011) Engine Accessories Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

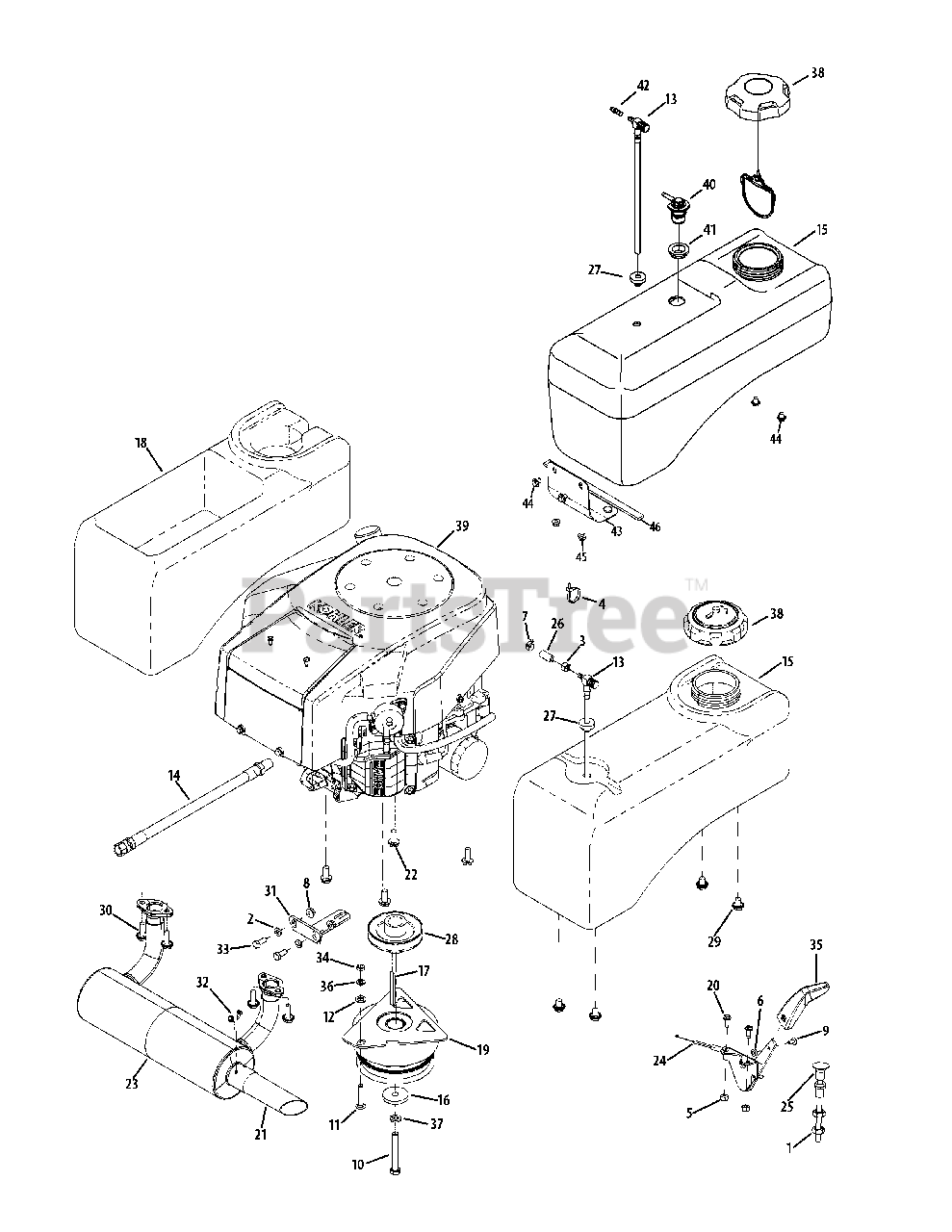

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 00011453

Jam Nut, 3/8-24

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012169

Washer, .344 x .688 x .063

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 00012235

Hose Clamp, .490
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

4

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet 00014608

Nylock Nut, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

6

Cub Cadet 00060056

Nut, #8-32

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet 01000215

Hose Clamp, .250-.625

$

$

Not available

8

Cub Cadet 712-3004A

Flange Counterlock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3217

Machine Screw, #8-32 x .356

$6.99

$

In Stock, Qty 7

0

10

Cub Cadet 710-0510

Hex Screw, 7/16-20 x 3.00

$11.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-0458

Carriage Bolt, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 01002710

Washer, .406 x .750 x .063

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 01003116

Fuel Pick-Up Fitting

$58.99

$

In Stock, only 4 left!

0

13

Cub Cadet 01007425

Fuel Pick-Up Fitting
(Superseded to 751-12478)

Note: Models built after 1-1-11

$52.99

$

In Stock, only 2 left!

0

14

Cub Cadet 01003283

Oil Drain Hose

$84.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01004350

Fuel Tank

$

$

Not available

15

Cub Cadet 951-04318A

Fuel Tank Assembly

Note: Models built after 1-1-11

$

$

Not available

16

Cub Cadet 736-04131

Washer, .438 x 1.745 x .250

$15.99

$

In Stock, only 1 left!

0

17

Cub Cadet 01007533

Bevel Key, .250 x .250 x 2.75

$11.99

$

In Stock, only 1 left!

0

18

Cub Cadet 01008138P

Utility Bin

$198.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 951-11696

Utility Bin
(Superseded to 759-04309)

Note: Models built after 1-1-11

$133.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01008434P

PTO
(Superseded to 759-05064)

$514.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01008531P

Flange Screw, #10-32 x .500

$5.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01008623

Straight Exhaust Pipe

$

$

Not available

22

Cub Cadet 01009243

Flange Screw, 3/8-16 x .875

$14.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02000456

Muffler
(Superseded to 02000456P)

$

$

Not available

24

Cub Cadet 02000477

Throttle Control Cable
(Superseded to 02000477P)

$51.99

$

In Stock, Qty 7

0

25

Cub Cadet 02000478

Choke Cable
(Superseded to 02000478P)

$41.99

$

In Stock, only 1 left!

0

26

Cub Cadet 02001911-5

Fuel Hose, 1/4

$

$

Not available

27

Cub Cadet 02002253

Fuel Tank Grommet

$4.99

$

In Stock, only 1 left!

0

27

Cub Cadet 735-04065

Fuel Tank Grommet

Note: Models built after 1-1-11

$14.99

$

In Stock, only 1 left!

0

28

Cub Cadet 02003417

Transmission Drive Pulley

$62.99

$

In Stock, Qty 8

0

29

Cub Cadet 02005013

Hex Flange Screw, 3/8-16 x .500
(Superseded to 710-05412)

$3.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02005299

Hex Flange Screw, 5/16-18 x 1.0
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

31

Cub Cadet 703-07213

PTO Retainer Bracket

Variations

Cub Cadet 703-07213-0637

RETAINER ASM - CLU - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 910-0224

Hex Washer Screw, #10-16 x 0.500

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 712-3007

Jam Nut, 5/16-18

$6.99

$

In Stock, only 3 left!

0

35

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

38

Cub Cadet 951-3124E

Fuel Cap

$36.99

$

In Stock, only 3 left!

0

38

Cub Cadet 951-12193A

Fuel Cap

Note: Models built after 1-1-11

$57.99

$

In Stock, only 4 left!

0

39

Cub Cadet KH-SV715-3030

Kohler SV715-3025 Engine
(Superseded to KH-KT725-3016)

$3095.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 751-12118

Rollover Valve

Note: Models built after 1-1-11

$35.99

$

In Stock, only 1 left!

0

41

Cub Cadet 735-04081

Rubber Grommet, 23 x 3.55

Note: Models built after 1-1-11

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet 751-12089-28

Hose Vent, 3/16 EPA

Note: Models built after 1-1-11

$8.99

$

In Stock, only 1 left!

0

43

Cub Cadet 603-04912-0637

Bracket, Fuel Tank

Note: Models built after 1-1-11

$44.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 710-05361

Screw, Hex M10-1.5 x 12.7

Note: Models built after 1-1-11

$3.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 712-04065

Nut, Flange Lock 3/8-16

Note: Models built after 1-1-11

$3.99

$

In Stock, Qty 15

0

46

Cub Cadet 721-04382

Tape, Foam .75" x .25"

Note: Models built after 1-1-11

$6.99

$

Usually ships in 3-6 days

0
