Z-Force 48 (17BF3AGV010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler (2011) Deck Assembly 48-Inch Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

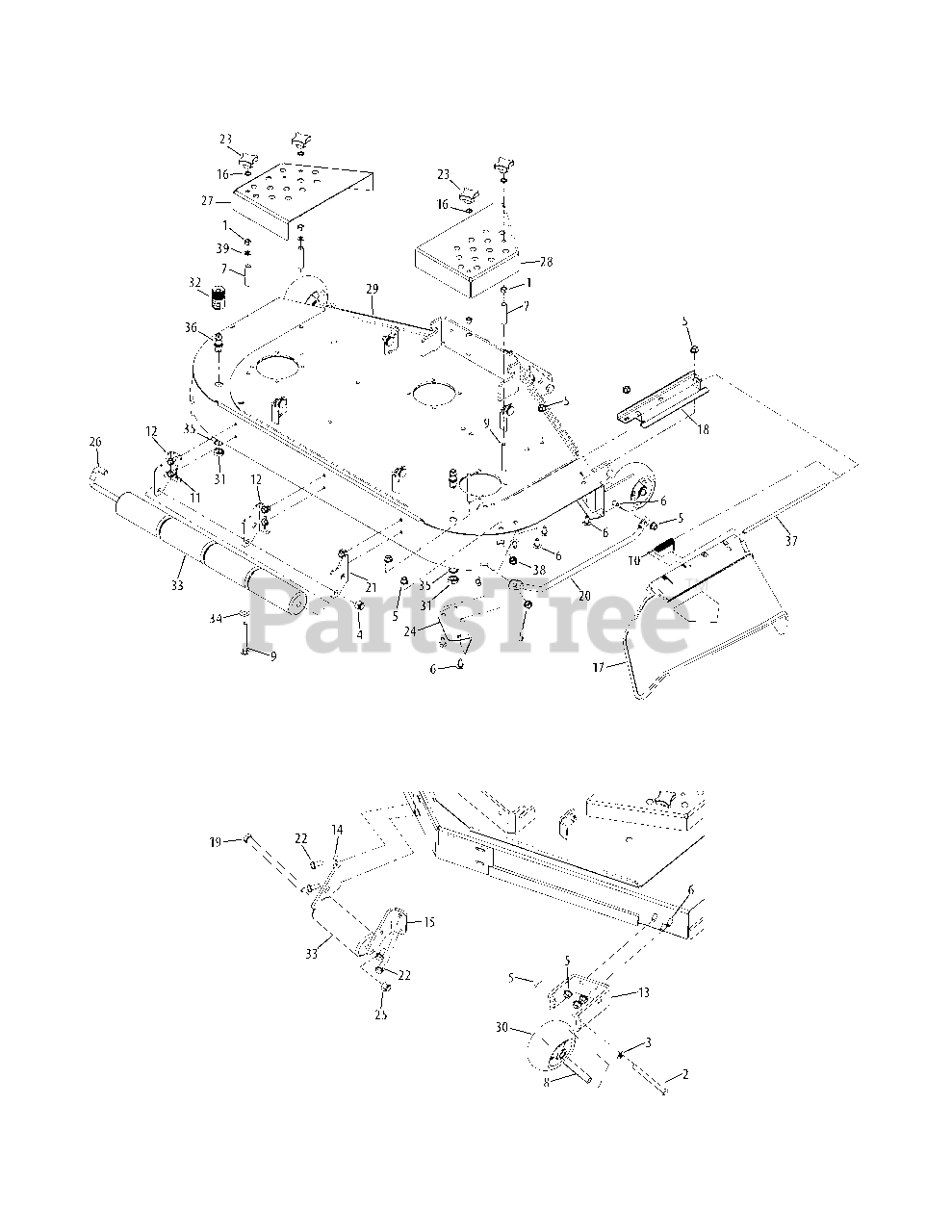

Deck Assembly 48-Inch Parts Diagram

  • Title

1

Cub Cadet 912-3017

Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00011925

Hex Screw, 3/8-16 x 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

3

Cub Cadet 00012158

Washer, .406 x .813 x .063

$4.49

$

In Stock, Qty 9

0

4

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00022560

Flange Counterlock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 01000395

Spacer, .400 x .560 x 2.45

$

$

Not available

8

Cub Cadet 750-3193

Spacer, .390 x .620 x 3.04

$18.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0521

Carriage Bolt, 3/8-16 x 3.50

$5.49

$

In Stock, Qty 10

0

10

Cub Cadet 732-04797

Torsion Spring, .639 x 2.16 x .12

$11.99

$

In Stock, only 4 left!

0

11

Cub Cadet 01004304

Flange Screw, 3/8-16 x .500
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

12

Cub Cadet 01004707-4021

Roller Mount Bracket

$23.99

$

In Stock, only 4 left!

0

13

Cub Cadet 01005243-4021

Anit-Scalp Front Mount Bracket

$57.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02004497-0637

LH Front Roller Mount Bracket

$32.99

$

In Stock, only 1 left!

0

15

Cub Cadet 02004500-0637

RH Front Roller Mount Bracket

$19.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01005851

Washer, .398 x .694 x .032
(Superseded to 736-0148)

$3.99

$

In Stock, only 3 left!

0

17

Cub Cadet 01006693

Chute Deflector
(Superseded to 01006693P)

$68.99

$

In Stock, Qty 8

0

18

Cub Cadet 01006748-0637

Chute Deflector Bracket

$35.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01006961

Hex Screw, 1/2-20 x 7.50
(Superseded to 710-05385)

$11.99

$

In Stock, Qty 11

0

20

Cub Cadet 01008644

Finger Guard

$36.99

$

In Stock, only 1 left!

0

21

Cub Cadet 01008790-0637

RH Roller Mt. Brkt.

$37.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01009243

Flange Screw, 3/8-16 x .875

$14.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02000040

Plastic Knob, 3/8-16

$20.99

$

In Stock, only 2 left!

0

24

Cub Cadet 02001235-0637

Micro Chute Baffle

$31.99

$

In Stock, only 3 left!

0

25

Cub Cadet 02002299

Nut, 1/2-20
(Superseded to 712-04316)

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02002799

J-Hook
(Superseded to 711-05664)

$22.99

$

In Stock, only 1 left!

0

27

Cub Cadet 02003605-4021

LH Belt Cover

$66.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02003606-4021

RH Belt Cover

$

$

Not available

29

Cub Cadet 02005231-4021

Deck Assembly
(Superseded to 02005231-0637)

$

$

Not available

30

Cub Cadet 634-3159

Wheel

$34.99

$

In Stock, Qty 20+

0

31

Cub Cadet 912-0641

Hex Nut
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

32

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

33

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

34

Cub Cadet 936-0272

Flat Washer, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

36

Cub Cadet 737-04003D

Water Deck Nozzle

$23.99

$

In Stock, Qty 6

0

37

Cub Cadet 747-3384

Chute Deflector Rod

$27.99

$

In Stock, only 1 left!

0

38

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Grf,

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 936-0169

Washer, Lock, 3/8 , Regular Duty
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0
