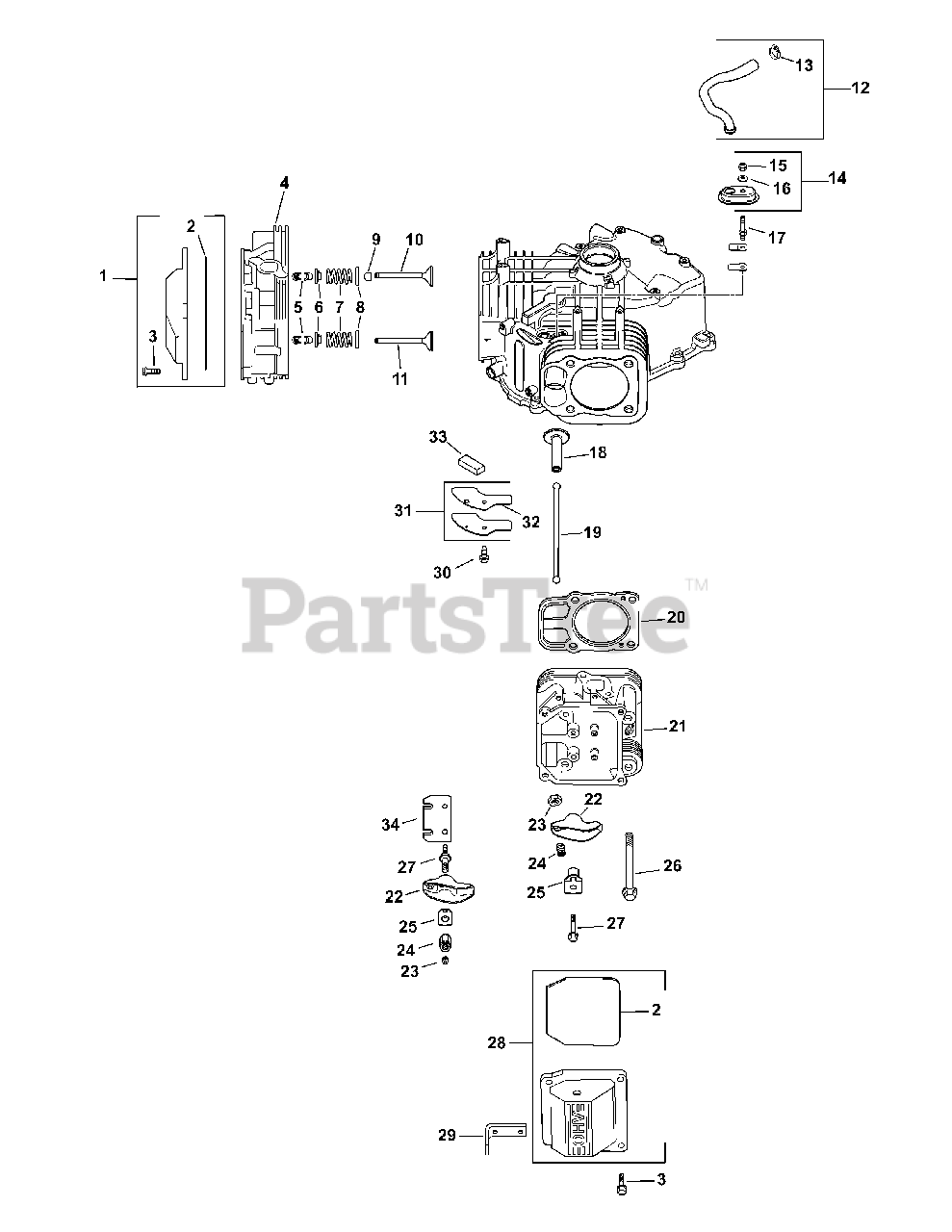

Z-Force 48 (17AF3AGV710) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler Engine Head Valve Breather Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

Engine Head Valve Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-755-141-S

KIT, PLAIN ROCKER COVER

Note: (Includes Ref No. 2[Qty 1], 3[Qty 4])

$35.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-24-153-30-S

O-RING, VALVE COVER

$11.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-M-651030-S

SCREW, FLG M6X1.0X30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-32-318-05-S

KIT, #1 CYLINDER HEAD ASSY
(Superseded to KH-32-755-39-S)

Note: (Includes Ref No. 26[Qty 4] & 24 841 03-S)

$

$

Not available

5

Cub Cadet KH-12-755-03

KIT, RETAINER

$5.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-173-01

CAP, VALVE SPRING
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

7

Cub Cadet KH-24-089-02

SPRING, VALVE

$

$

Not available

8

Cub Cadet KH-235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-66-032-05-S

SEAL, VALVE STEM
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-017-01

VALVE, INTAKE (STD)

$

$

Not available

11

Cub Cadet KH-24-016-01

VALVE, EXHAUST (STD)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

12

Cub Cadet KH-32-326-06-S

KIT, BREATHER HOSE

Note: (Includes Ref No. 13[Qty 1])

$18.99

$

In Stock, only 1 left!

0

13

Cub Cadet KH-25-237-14-S

CLAMP, HOSE
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-32-081-02-S

KIT, BREATHER HOUSING

Note: (Includes Ref No. 15,16)

$2.49

$

In Stock, only 1 left!

0

15

Cub Cadet KH-M-547050-S

NUT, LOCK M5X0.8

$2.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-32-468-01-S

WASHER, SEALING

$2.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-32-072-03-S

STUD, BREATHER COVER

$2.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-32-019-01-S

KIT,TAPPET
(Superseded to KH-32-019-02-S)

$13.99

$

In Stock, only 3 left!

0

19

Cub Cadet KH-32-411-04-S

ROD, PUSH

$4.99

$

In Stock, Qty 9

0

20

Cub Cadet KH-24-841-03-S

KIT, CYLINDER HEAD GASKET
(Superseded to KH-24-841-04-S)

Note: (Includes Head Mounting Hardware & KH-24 041 49-S, KH-24 153 27-S)

$45.99

$

In Stock, Qty 20+

0

21

Cub Cadet KH-32-318-06-S

KIT, #2 CYLINDER HEAD ASSY
(Superseded to KH-32-318-14-S)

Note: (Includes Ref No. 26[Qty 4] & 24 841 03-S)

$

$

Not available

22

Cub Cadet KH-32-186-03-S

ARM, ROCKER

$6.49

$

In Stock, only 1 left!

0

23

Cub Cadet KH-25-100-33-S

NUT, M10X0.75
(Superseded to KH-25-100-38-S)

$3.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-25-086-128-S

SCREW, SET
(Superseded to KH-25-086-168-S)

$4.49

$

In Stock, only 2 left!

0

25

Cub Cadet KH-25-599-01-S

PIVOT, ROCKER ARM

$2.99

$

In Stock, only 2 left!

0

26

Cub Cadet KH-12-086-16

SCREW, FLG M10X1.5X90
(Superseded to KH-62-086-08-S)

$5.99

$

In Stock, Qty 5

0

27

Cub Cadet KH-32-072-04-S

STUD, ROCKER

$4.99

$

In Stock, only 3 left!

0

28

Cub Cadet KH-32-096-06-S

KIT, BREATHER VALVE COVER

Note: (Includes Ref No. 2[Qty 1])

$29.99

$

In Stock, only 1 left!

0

29

Cub Cadet KH-25-445-01-S

STRAP, LIFTING
(Superseded to KH-25-445-03-S)

$

$

Not available

30

Cub Cadet KH-M-645016-S

SCREW, FLG THD FRM M6X1.0X16

$3.99

$

In Stock, Qty 15

0

31

Cub Cadet KH-32-096-04-S

KIT, BREATHER COVER

Note: (Includes Ref No. 32)

$2.99

$

Usually ships in 2-5 days

0

32

Cub Cadet KH-32-041-01-S

GASKET, BREATHER COVER

$

$

Not available

33

Cub Cadet KH-32-050-01-S

FILTER, BREATHER

$2.99

$

In Stock, only 2 left!

0

34

Cub Cadet KH-32-146-08-S

PLATE, GUIDE

Note: SV820-0011

$

$

Not available

Cub Cadet KH-32-146-09-S

PLATE, GUIDE

Note: SV830-0011

$2.99

$

In Stock, Qty 5

0

Cub Cadet KH-24-041-49-S

GASKET, EXHAUST

$

$

Not available

Cub Cadet KH-24-153-27-S

O-RING, INTAKE PORT

$3.99

$

In Stock, Qty 8

0

Cub Cadet KH-32-755-03-S

KIT, CYLINDER HEAD HARDWARE

Note: (Not Shown)(Services 1 Head. Qtys Listed are for both heads)(Includes Ref No. 5-11, 19, 22, 25, 34)

$69.99

$

In Stock, only 1 left!

0
