Z-Force 48 (17AF3AGV210) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler Kohler Engine Assembly 25HP Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

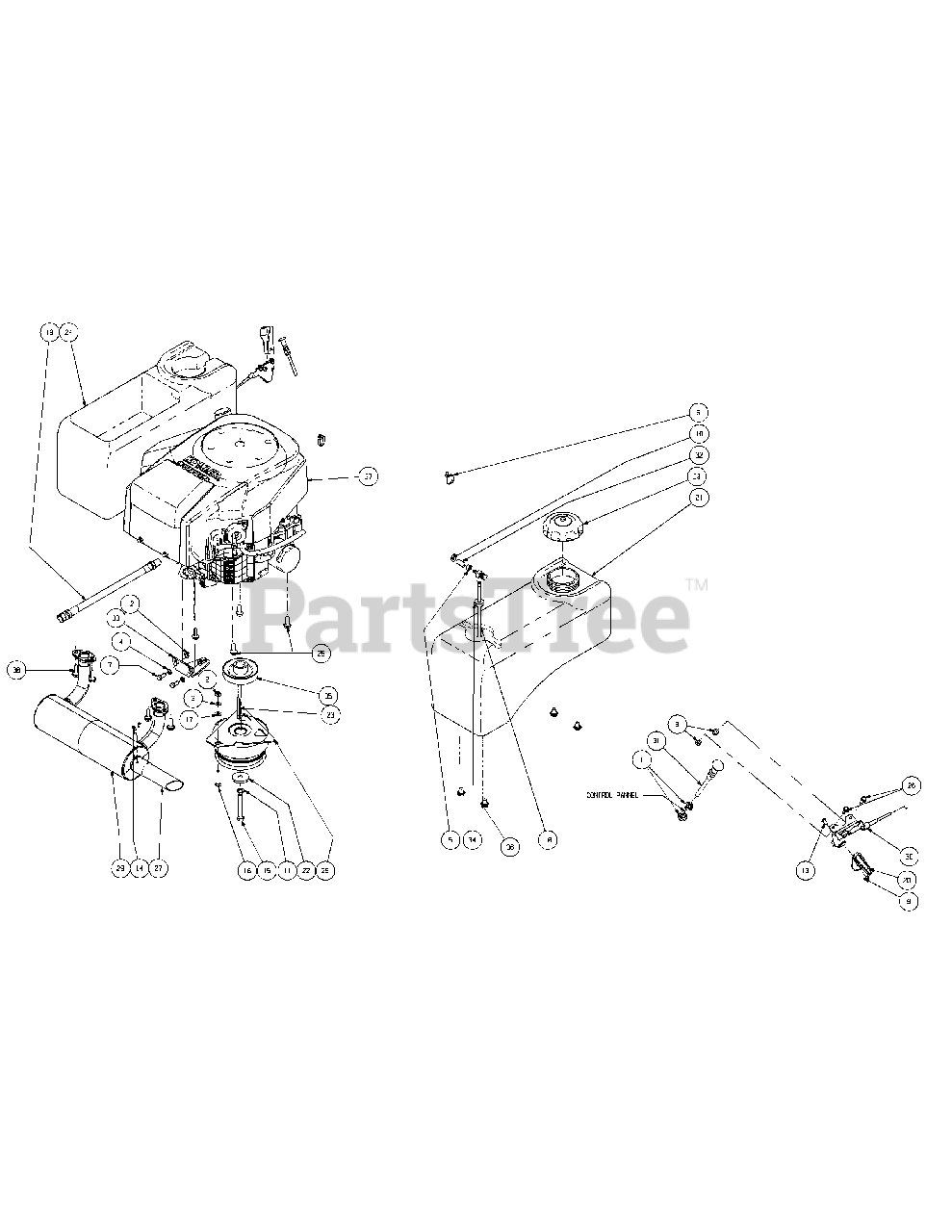

Kohler Engine Assembly 25HP Parts Diagram

  • Title

1

Cub Cadet 00011453

Hex Jam Nut, 3/8-24

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-3007

Hex Nut, 5/16-18

$6.99

$

In Stock, only 3 left!

0

3

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 00012235

Clamp, Union
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

6

Cub Cadet 00012470

Cable Tie, 3/16 x .05 x 7.4
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

9

Cub Cadet 00060056

Nut, w/ Star Washer

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet 01000215

Hose Clamp, 1/4-5/8, SS

$

$

Not available

11

Cub Cadet 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 01000635

Lock Nut, Hex Flange, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 01000721

Machine Screw, 8-32 x .375
(Superseded to 710-3217)

$6.99

$

In Stock, Qty 7

0

14

Cub Cadet 01000811

Screw, 8-32 x .375, Hex Washer
(Superseded to 710-0148)

$4.49

$

In Stock, Qty 16

0

15

Cub Cadet 01000813

Hex Cap Screw, 7/16-20 x 3.0
(Superseded to 710-0510)

$11.99

$

In Stock, only 1 left!

0

16

Cub Cadet 01000956

Carriage Bolt, 5/16-18 x 1.75
(Superseded to 710-0458)

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 01002710

Washer, 3/8 x .738 x .063

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 01003116

Fuel Pickup Fitting

$58.99

$

In Stock, only 4 left!

0

19

Cub Cadet 01003283

Oil Drain Extension Hose

$84.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01004350

Fuel Tank

$

$

Not available

22

Cub Cadet 01005314

Flat Washer, 7/16 ID x 1.75 OD x .250
(Superseded to 736-04131)

$15.99

$

In Stock, only 1 left!

0

23

Cub Cadet 01007533

Key, 1/4 x 1/4 x 2.75

$11.99

$

In Stock, only 1 left!

0

24

Cub Cadet 01008138

Utility Bin
(Superseded to 01008138P)

$198.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01008434

Ogura DX11 Electric Clutch
(Superseded to 759-05064)

$514.99

$

In Stock, only 1 left!

0

26

Cub Cadet 01008531

Screw, #10-32 x 0.500
(Superseded to 01008531P)

$5.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01008623

Exhaust Pipe

$

$

Not available

28

Cub Cadet 01009243

Self Tapping Screw, 3/8-16 x 0.875

$14.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 02000456

Kohler Muffler
(Superseded to 02000456P)

$

$

Not available

30

Cub Cadet 02000477

Throttle Control Cable
(Superseded to 02000477P)

$51.99

$

In Stock, Qty 7

0

31

Cub Cadet 02000478

Choke Cable
(Superseded to 02000478P)

$41.99

$

In Stock, only 1 left!

0

32

Hose, 1/4" Fuel Line

Note: Purchase locally

$

$

Not available

33

Cub Cadet 02001992

Clutch Retainer Assembly
(Superseded to 02001992-0637)

Variations

Cub Cadet 02001992-0637

Clutch Retainer Assembly, Black - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 02002253

Fuel Tank Groment

$4.99

$

In Stock, only 2 left!

0

35

Cub Cadet 02003417

Transmission Drive Pulley

$62.99

$

In Stock, Qty 9

0

36

Cub Cadet 02005013

Hex Head Cap Screw, 3/8-16 x 1.00, Flange Whiz
(Superseded to 710-05412)

$3.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 752KSV8311

25HP Kohler Engine

$

$

Currently unavailable

38

Cub Cadet 02005299

Hex Head Cap Screw, 5/16-18 x 1.00, Flange Whiz
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

39

Cub Cadet 751-3124D

Fuel Cap
(Superseded to 951-3124E)

$36.99

$

In Stock, only 1 left!

0
