Z-Force 48 (17AF3AGV210) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler Brake Assembly Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

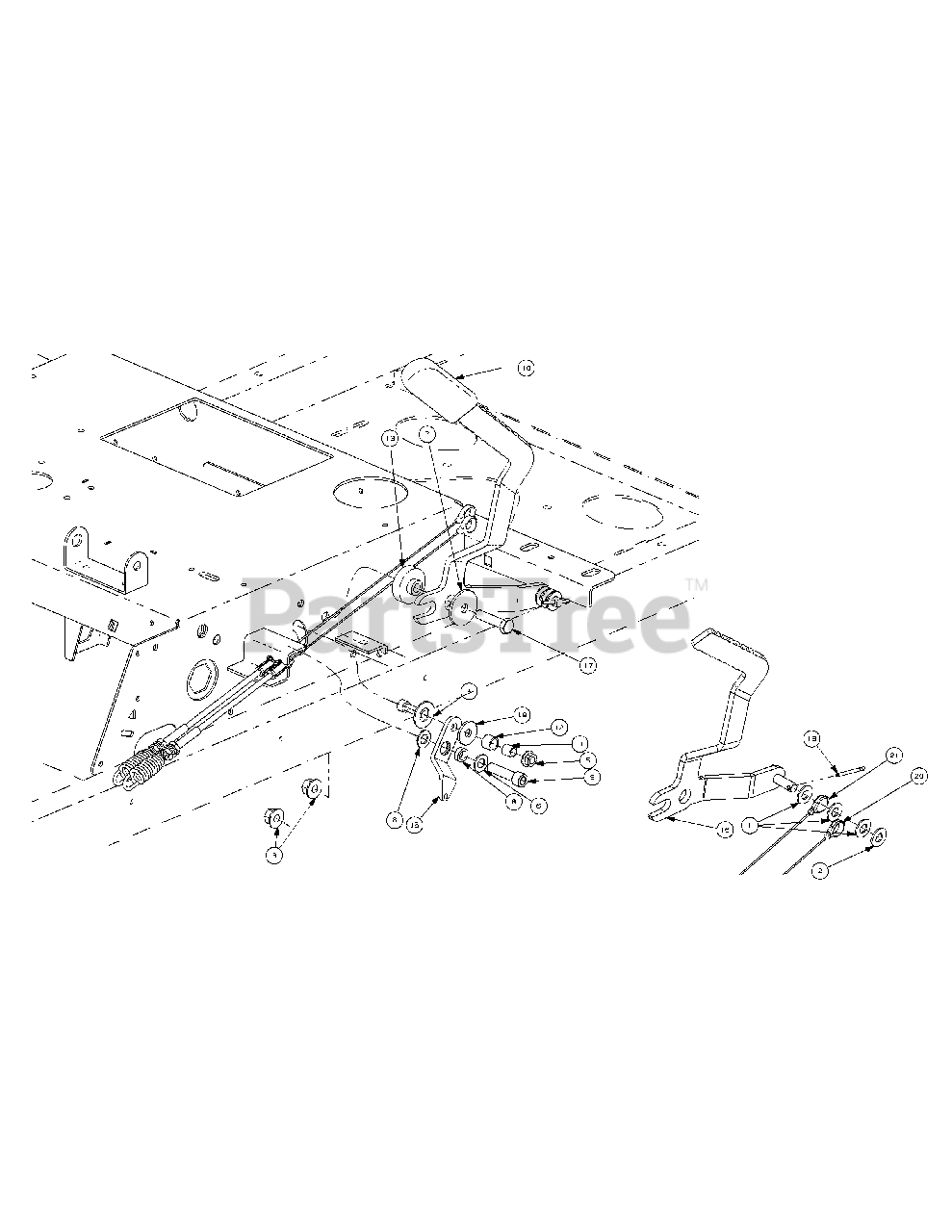

Brake Assembly Parts Diagram

  • Title
1

Cub Cadet 000005530

Washer, .406 x 812 x .062

$

$

Currently unavailable

2

Cub Cadet 00012180

Hex Head Cap Screw, 5/16-18 x 1.00

$

$

Not available

3

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01000101

Slide Washer
(Superseded to 936-0414)

$

$

Not available

5

Cub Cadet 01000635

Nut, 5/16-18, Flange Lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01002710

Washer, .375 x .738 x .063

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 01009253

Flat Washer, .390 x 1.5 x .134
(Superseded to 936-0227)

$

$

Not available

8

Cub Cadet 02002885

Spacer, .380 x .563 x .196

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 02003717

Sockethead Capscrew, 3/8-16 x 1.50
(Superseded to 710-06024)

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 02003740

Parking Brake Grip

$10.99

$

In Stock, only 1 left!

0

11

Cub Cadet 02003839

Spacer, .322 ID x .438 OD x .44

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 02003840

Spacer, .442 ID x .563 OD x .405

$

$

Not available

13

Cub Cadet 02004045

Step Hub, .379 x 1.5 x .257/.400

$

$

Not available

14

Cub Cadet 02004124

Sockethead Capscrew, 5/16-18 x 1.00
(Superseded to 710-05398)

$3.49

$

In Stock, only 1 left!

0

15

Cub Cadet 02004174

Lockout Lever Plate

$16.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 680-00049

Brake Handle

$

$

Not available

17

Cub Cadet 710-0520

Hex Head Cap Screw, 3/8-16 x 1.50

Note: replaces 00010980

$4.49

$

In Stock, Qty 6

0

18

Cub Cadet 714-0474

Cotter Pin, 1/8 x 1.75

$4.99

$

In Stock, Qty 13

0

19

Cub Cadet 736-3089

Washer, .345 x 1.00 x .100

$

$

Not available

20

Cub Cadet 746-04564

Left Hand Brake Cable
(Superseded to 946-04564)

$42.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 746-04565

Right Hand Brake Cable
(Superseded to 946-04565)

$

$

Not available
